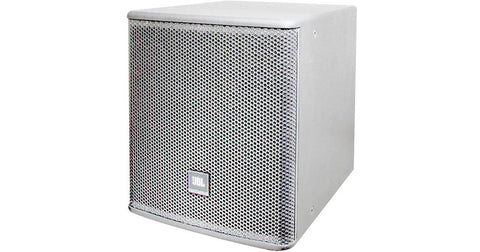

JBL AC115S 15-inch High-Power Subwoofer
Rs. 105,020.00
Key Features
Standard warranty provide by OEM
JBL AC115S 15-inch High-Power Subwoofer
Rs. 105,020.00
Product Description
15-inch Subwoofer
AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.
As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
Specifications
| Brand | JBL Professional |
| Model | AC115S |
| Product Type | 15-inch High-Power Subwoofer |
| Series | AE Application Engineered Series |
| LF Driver | 1 × 15" (385 mm) woofer |
| Voice Coil | 3" (75 mm) |
| Frequency Range (-10 dB) | 32 Hz – 250 Hz |
| Frequency Response (±3 dB) | 40 Hz – 250 Hz |
| System Sensitivity | 94 dB (1 W / 1 m) |
| Nominal Impedance | 8 Ω |
| Maximum SPL | 120 dB (126 dB peak) |
| Power Rating – IEC | 400 W Continuous / 800 W Program / 1600 W Peak |
| Power Rating – AES | 500 W / 2000 W Peak, 2-hour rating |
| Input Connectors | 2 × Neutrik NL4MP + covered barrier-strip terminals |
| Enclosure | 18 mm multi-ply hardwood plywood |
| Grille | 1.5 mm perforated steel with acoustically transparent black foam backing |
| Suspension Points | 12 × M10 threaded suspension points |
| Dimensions (H × W × D) | 483 × 419 × 600 mm |
| Net Weight | 24 kg |
| Finish | Textured black paint |
| Optional Finish | White (-WH) available on request |
| Application | Fixed installation |
| Product Code / Driver P/N | LF Driver P/N: 5055679 |
