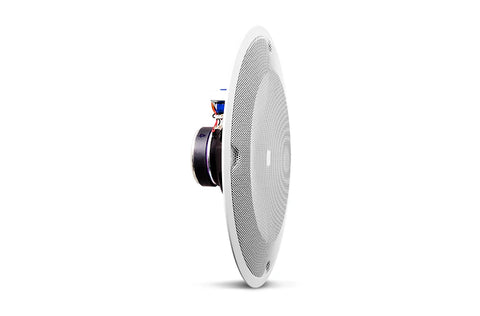

JBL 8138 8" (200 mm) Full-Range In-Ceiling Loudspeaker

JBL 8138 8" (200 mm) Full-Range In-Ceiling Loudspeaker

Rs. 15,340.00

Key Features

Stylish, contemporary appearance enhances any decor.

Clear sound from an 8 inch dualcone full-range driver.

Very high sensitivity of 97 dB for maximum sound levels using minimum amplifier power.

6W transformer for use on 70V/100V distributed speaker lines

Installs to in-ceiling backboxes having 4 mounting points on an 11.25" (286 mm) diameter mounting circle.

For use with MTC-81BB8 backcan and MTC-81TB8 tile bridge

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 15,340.00
JBL 8138 8" (200 mm) Full-Range In-Ceiling Loudspeaker
Rs. 15,340.00

Product Description

8" (200 mm) Full-Range In-Ceiling Loudspeaker for use with
Pre-Install Backcans

The 8138 is an 8" ceiling speaker designed for use with a pre-install inceiling backcan, resulting in highfidelity performance at a costeffective price point. The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to professional offices and reception areas.

Specification

Brand JBL Professional
Model 8138
Speaker Type Full-Range In-Ceiling Loudspeaker
Driver 200 mm (8") Full-Range Dual-Cone
Frequency Range (-10 dB) 95 Hz – 18 kHz
Coverage 90° Conical
Sensitivity 97 dB
Driver Power Capacity 40 W (160 W peak), 2 hrs; 25 W (100 W peak), 100 hrs
Transformer Taps 6 W / 3 W / 1.5 W; 0.75 W @ 70V only
System Voltage 70V / 100V
Input Connection Bare Wire
Maximum SPL 105 dB @ 1 m
Magnet 283 g (10 oz)
Mounting Circle 286 mm (11.25")
Ceiling Cutout 300 mm with tile bridge & backbox; 228 mm standalone
Baffle Diameter 327 mm (12.9")
Depth from Baffle 84 mm
Overall Depth 99 mm
Net Weight 1.4 kg
Color White
Grille Integral grille
Backcan JBL MTC-81BB8 – optional
Tile Bridge JBL MTC-81TB8 – optional
Plenum Use Yes, with suitable listed backcan
Safety Compliance UL1480, UL2043, NFPA90, NFPA70; transformer UL1876
