Product Description

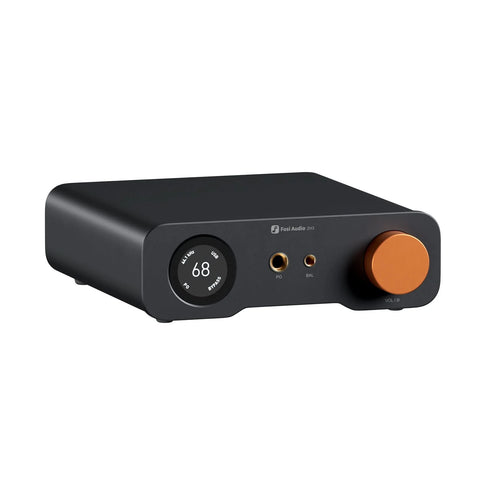

An all-in-one desktop HiFi DAC/headphone amp/preamp: With premium chipsets and self-developed fully balanced circuitry, low noise and low distortion. Perfect for HiFi headphones or active speakers, it's the ultimate desktop audio solution.

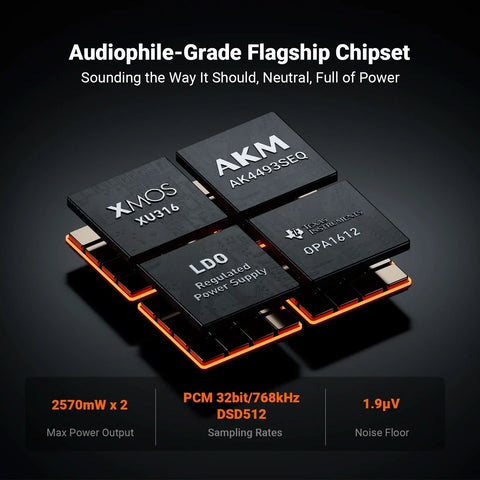

Exceptional Sound Quality: Premium chipset with AKM4493SEQ DAC, XMOS XU316 processor, and four OPA1612 amps supports up to PCM 768kHz/32bit & DSD512. A self-developed dual-power balanced amp circuit with multiple ultra-low-noise LDOs and capacitors keeps noise as low as 1.9μV.
High Output Power: Equipped with both 6.35mm single-ended (640mW@32Ω x2) and 4.4mm balanced (2570mW@32Ω x2) outputs. The 3-level gain switch supports headphones ranging from 16Ω to 300Ω, making it perfect for almost in-ears and over-ear headphones.

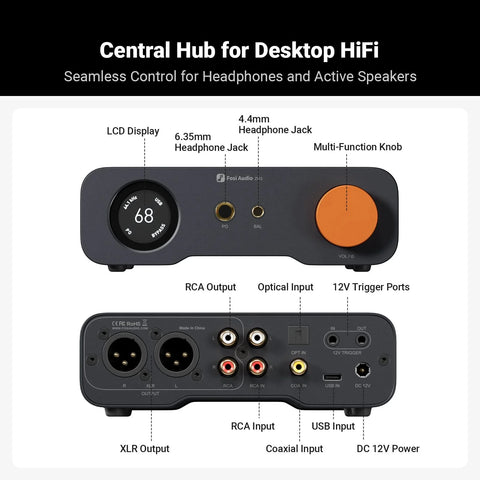

Versatile & Flexible: With coaxial, optical, USB, and RCA inputs, plus 4.4mm, 6.35mm, RCA, and XLR outputs, it connects to diverse audio sources and devices. Functions as a DAC/amp/preamp for desktop HiFi. UAC mode switching ensures full compatibility with game consoles for both music and gaming.

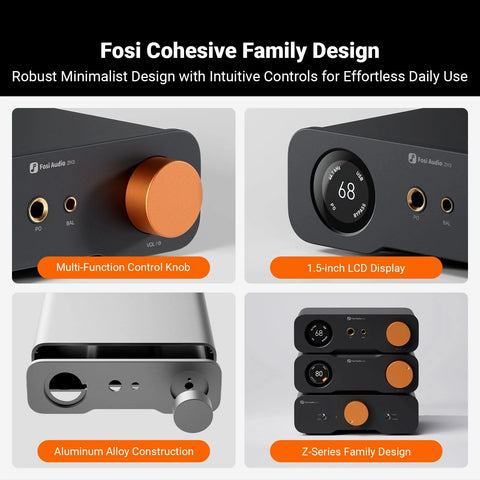

Rich Customization: Features bass/treble EQ adjustments and 6 filter types, including Bypass mode and two swappable op-amps, allowing you to customize the sound to match your preference. All functions are integrated into the screen for a clean, premium look that continues the Z-Series design language.
Comprehensive Desktop HiFi Solution

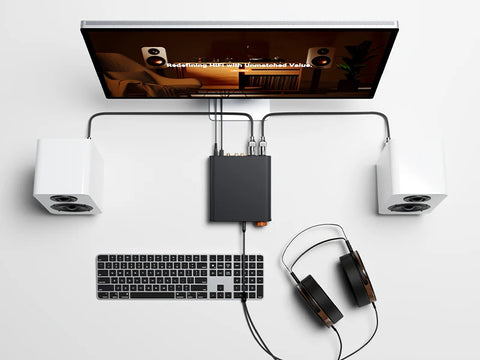

With comprehensive input and output options, the ZH3 functions as a DAC, headphone amplifier, and preamp, which can be connected to IEMs, over-ear headphones, active speakers, and amplifiers. Featuring UAC 1.0 and 2.0, it is also compatible with gaming consoles, ensuring seamless connectivity across multiple desktop devices.
- Chipset: XMOS XU316+AKM4493SEQ+ OPA1612 x 4
- Input: Coaxial/Optical/USB/RCA
- Output: 4.4mm/6.35mm/RCA/XLR

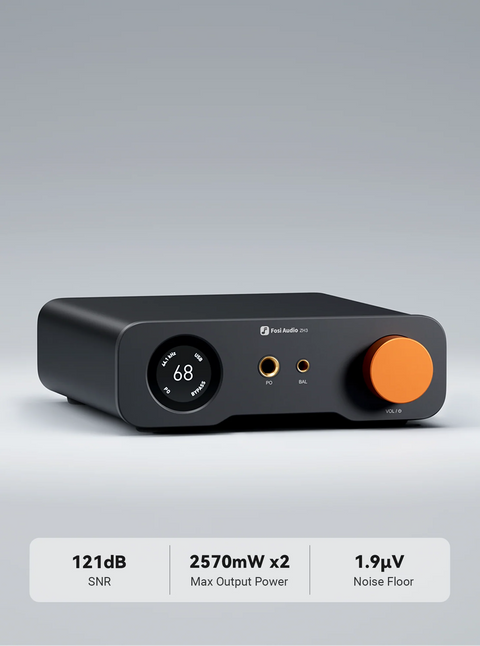

- SINAD ≥ 115dB; SNR ≥ 121dB; THD+N ≤ 0.00018%; Noise Floor ≤ 1.9μV
Specifications
|
Brand |
Fosi Audio |
|
Model |
ZH3 |
|
Product Type |
Desktop DAC, Headphone Amplifier & Preamplifier |
|
DAC Chip |
AKM4493SEQ |
|
USB Processor |
XMOS XU316 |
|
Operational Amplifiers |
4 × OPA1612 |
|
Audio Circuit Design |
Fully balanced |
|
Maximum USB Audio Resolution |
PCM 32-bit / 768 kHz |
|
DSD Support |
DSD512 |
|
Optical Input Resolution |
PCM up to 24-bit / 192 kHz |
|
Coaxial Input Resolution |
PCM up to 24-bit / 192 kHz |
|
Audio Inputs |
USB, Optical, Coaxial, RCA |
|
Headphone Outputs |
4.4 mm Balanced, 6.35 mm Single-Ended |
|
Line Outputs |
RCA Stereo, XLR Balanced |
|
Headphone Impedance |
16–300 Ω |
|
Balanced Output Power |
2,570 mW × 2 at 32 Ω |
|
Single-Ended Output Power |
640 mW × 2 at 32 Ω |
|
Signal-to-Noise Ratio (SNR) |
≥121 dB |
|
SINAD |
≥115 dB |
|
THD+N |
≤0.00018% |
|
Noise Floor |
≤1.9 µV (manufacturer's headline specification) |
|
Gain Adjustment |
3 levels |
|
Sound Customisation |
Bass/Treble EQ, 6 digital filters, Bypass mode |
|
Replaceable Op-Amps |
Yes, 2 user-replaceable op-amp positions |
|
USB Audio Modes |
UAC 1.0 / UAC 2.0 |
|
Trigger Connectivity |
12V trigger |
|
Power Input |
DC 12V |
|
Body Material |
Aluminium |
|
Dimensions |
Approximately 155 × 162 × 50 mm |
|
Weight |
Approximately 1.5 kg |
|
Remote Control |
Infrared remote control |
