Fosi Audio BT20A-24V Class D Stereo 2 Channel Amplifier with BT
Key Features
Product Description
Fosi Audio BT20A is a Hi-Fi wireless stereo 2-channel amplifier that features 100W x 2 output, it is a mini power amp which is equipped with bass and treble control.
Stream Hi-Fi Music to Your Stereo System
Bluetooth 5.0 Mini Power Amplifier
Fosi Audio was founded with a simple goal: Build products that sound great and make people want to listen to music every day. We design and sell many Hi-Fi audio products on the market. We pursue your perfect music journey. Enjoy Hi-Fi music with Fosi Audio products.
Product Parameters
2.0 Channel Bluetooth 5.0 Stereo Power Amplifier
- Power Adapter: 24V/4.5A, DC Input Range: 12-24V
- MAX Power Output: 100W x 2, Terminating Impedance: 2 Ohm - 8 Ohm
- THD ≤ 0.04%, SNR ≥ 98dB, Input Sensitivity ≤ 280mV
- Frequency Range: 20Hz - 20kHz (±1 dB), Input Mode: Bluetooth and RCA
- Bluetooth Transmission Distance: Up to 50 Ft
up to 50ft connection
Bluetooth Receiver Amplifier
Instant setup with phones, tablets, and almost any other Bluetooth-enabled device.
for bookshelf speakers
2.0 Channel Wireless Stereo Amplifier

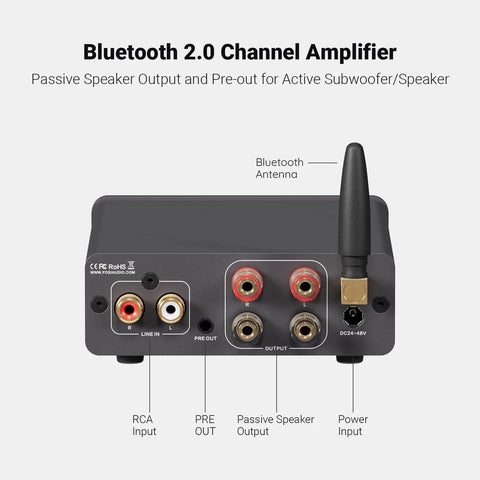

Easy to fit your audio system with Bluetooth and RCA input.

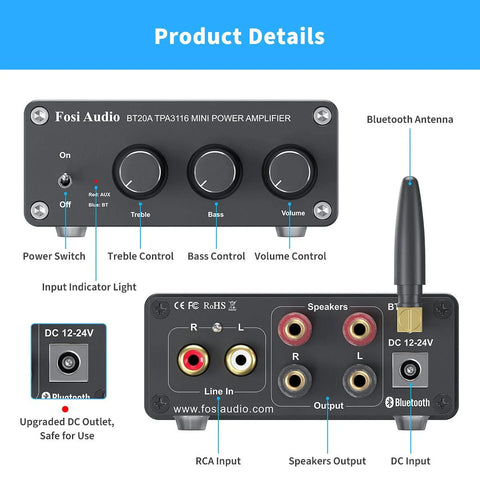

Safe DC Outlet
With a built-in power protection circuit, there are no sparks flying when you plug the power adapter into the amplifier. Safe for use!
24V/4.5A Power Supply
Fosi Audio BT20A equip with an energy-efficient and stable power supply can get an astonishing sound.
Specifications
|
Brand |
Fosi Audio |
|
Model |
BT20A-24V |
|
Amplifier Type |
Class-D Stereo Amplifier |
|
Number of Channels |
2.0 Channel |
|
Maximum Output Power |
100W × 2 |
|
Audio Inputs |
Bluetooth, RCA |
|
Bluetooth Version |
5.0 |
|
Bluetooth Range |
Up to 15m (50ft) |
|
Speaker Impedance |
2Ω–8Ω |
|
Frequency Response |
20Hz–20kHz (±1dB) |
|
Total Harmonic Distortion (THD) |
≤ 0.5% |
|
Signal-to-Noise Ratio (SNR) |
≥ 98dB |
|
Input Sensitivity |
≤ 280mV |
|
DC Input Voltage Range |
12V–24V |
|
Included Power Supply |
24V DC, 4.5A |
|
Tone Controls |
Bass and Treble |
|
Speaker Output |
Passive Speakers |
|
Dimensions |
130 × 100 × 35mm |
|
Weight |
Approx. 700g |
