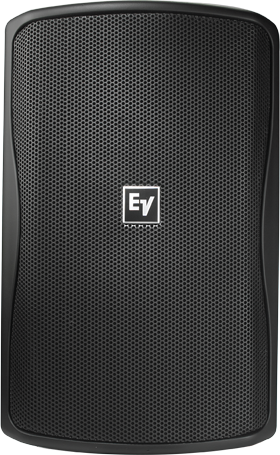

Electro-Voice ZX1i-90 8" 2‑Way Passive Full‑Range Indoor/Outdoor Loudspeaker

Electro-Voice ZX1i-90 8" 2‑Way Passive Full‑Range Indoor/Outdoor Loudspeaker

Rs. 99,528.00

Key Features

  • Patented ASC (Automatic Saturation Compensation)
  • Also available in 70/100 volt transformer version
  • Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
  • EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 99,528.00
Electro-Voice ZX1i-90 8" 2‑Way Passive Full‑Range Indoor/Outdoor Loudspeaker
Rs. 99,528.00

Product Description

The Electro-Voice ZX1i-90 is a compact 8-inch passive 2-way installation loudspeaker engineered for premium indoor and outdoor sound reinforcement. Designed for commercial installations, houses of worship, restaurants, hospitality venues, sports facilities, and public spaces, it delivers high-output performance with exceptional speech intelligibility and music reproduction. The ZX1i-90 features an 8-inch weatherized woofer, a 1-inch titanium compression driver, and a 90° × 50° rotatable horn for precise coverage and flexible installation. Its rugged ABS enclosure, weather-resistant construction, and integrated QuickSAM™ heavy-duty mounting bracket enable fast, secure installation while ensuring long-term reliability in demanding environments. Transformer versions include Automatic Saturation Compensation (ASC) for consistent audio performance in 70V/100V distributed systems.

Specifications

Details
Product Type Passive 2-Way Installation Loudspeaker
Frequency Response (-3 dB) 60 Hz – 20 kHz
Frequency Range (-10 dB) 48 Hz – 20 kHz
Recommended High-Pass Frequency 40 Hz
Sensitivity 94 dB (1 W/1 m)
Maximum SPL 123 dB
Coverage (H × V) 90° × 50°
Power Handling 200 W Continuous / 400 W Program / 800 W Peak
Low-Frequency Driver EV8L 8" (203 mm) Woofer
High-Frequency Driver DH2005 1" (25 mm) Compression Driver
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ω
Minimum Impedance 6 Ω
Transformer Taps ("T" Version) 70V: 6 W, 12.5 W, 25 W, 50 W, 100 W, 8 Ω Bypass
100V: 12.5 W, 25 W, 50 W, 100 W, 8 Ω Bypass
Connector Type 4-Pin Phoenix Connector
Enclosure Material ABS Resin
Mounting System Integrated QuickSAM™ Heavy-Duty Strong-Arm Bracket
Grille 18 GA Galvanized Steel, Polyester Powder-Coated
Dimensions (H × W × D) 451 × 282 × 263 mm
Net Weight 8.4 kg (without Transformer) / 10.4 kg (with Transformer)
Shipping Weight 10.2 kg (without Transformer) / 12.3 kg (with Transformer)
