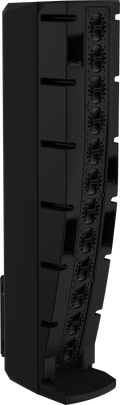

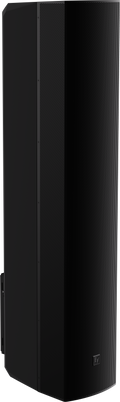

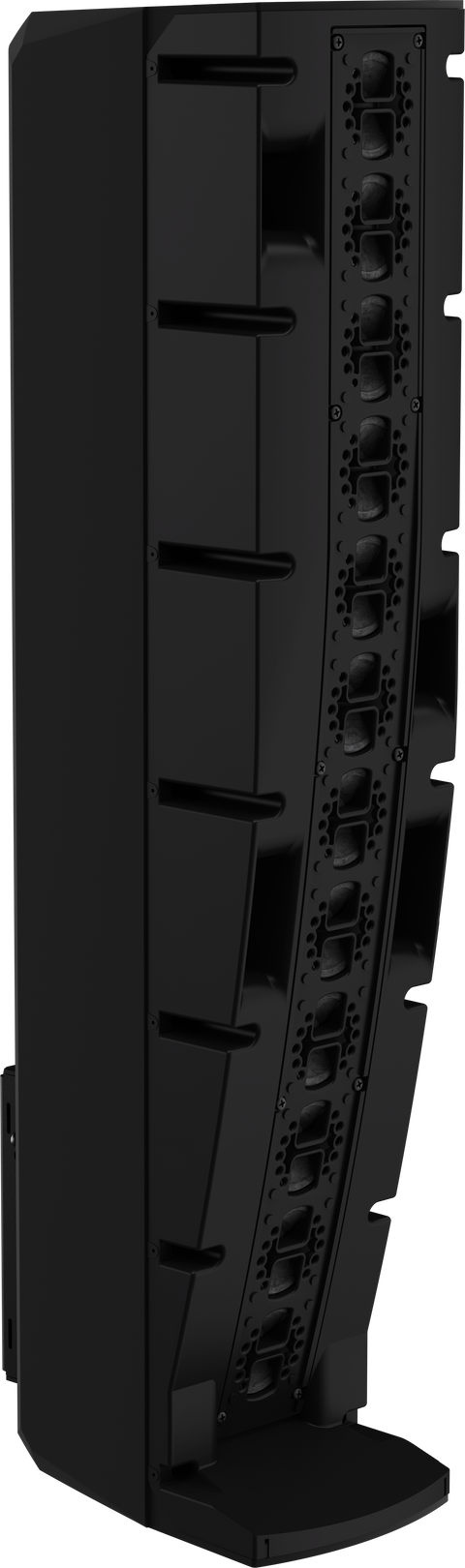

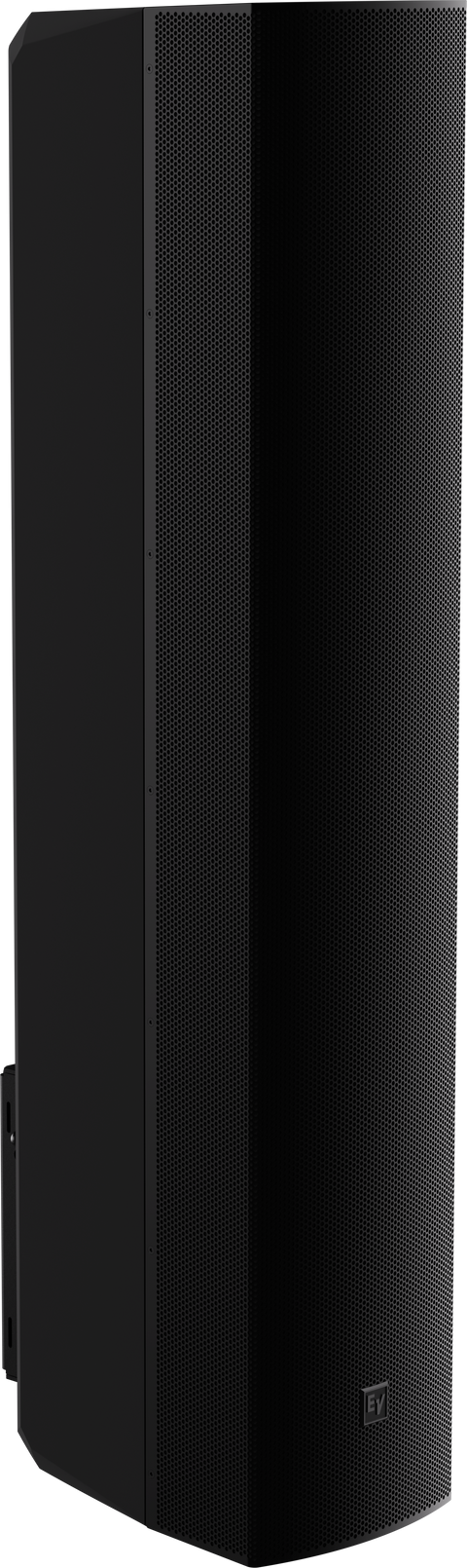

ELECTRO-VOICE LRC-2100 High Performance Column Speaker
Key Features
Product Description
LRC Line Radiator Column is a line of passive column loudspeakers engineered specifically for installation. LRC loudspeakers are simple, practical, and easy to install, offering a sleek, neutral industrial design that blends into a wide range of settings. LRC loudspeakers can play a role in any install as main speakers, support speakers, and foreground and background speakers.
An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.
LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.
LRC-2100 is supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software, as well as AFMG's EASE and EASE Focus3 software.
Specifications
| Details | |
|---|---|
| Product Type | Passive Line Radiator Column Loudspeaker |
| Frequency Range (-10 dB) | 45 Hz – 16 kHz |
| Maximum SPL | 128 dB (Narrow), 126 dB (Wide) |
| Sensitivity | 91.5 dB SPL (1 W/1 m, Narrow), 90 dB SPL (1 W/1 m, Wide) |
| Acoustic Down-Tilt | -7.5° |
| Coverage (H × V) | 180° × 25° (Narrow), 180° × 45° (Wide) |
| Continuous Power Handling | 300 W |
| Program Power Handling | 600 W |
| Peak Input Voltage | 130 V |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.4 Ω @ 280 Hz |
| Recommended High-Pass Filter | 50 Hz Butterworth, 24 dB/oct |
| Drivers | 2 × 6.5" Bass Drivers, 12 × 2.5" Mid-High Drivers |
| Connector | 4-pin Euroblock (Input + Pass-Through, Max. 10 AWG) |
| Suspension Points | 6 × M8 × 20 mm |
| Mounting | SwifTilt Multi-Angle Tilt + Pan Bracket |
| Maximum Pan Angle | ±80° |
| Vertical Tilt Angles | 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° |
| IP Rating | IP55 |
| Available Colors | Signal Black (RAL 9004), Signal White (RAL 9003) |
| Dimensions (H × W × D) | 950 × 185 × 250 mm |
| Weight | 15 kg |
| Shipping Weight | 21.4 kg |
| Included Accessories | Tilt Bracket, Pan Bracket, Gland Nut Weather Cover, Dual-Ended Allen Key, Pre-installed M8 × 20 mm Eyebolt |
