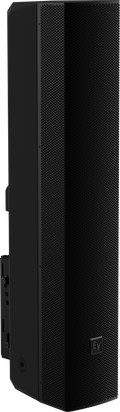

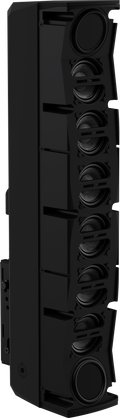

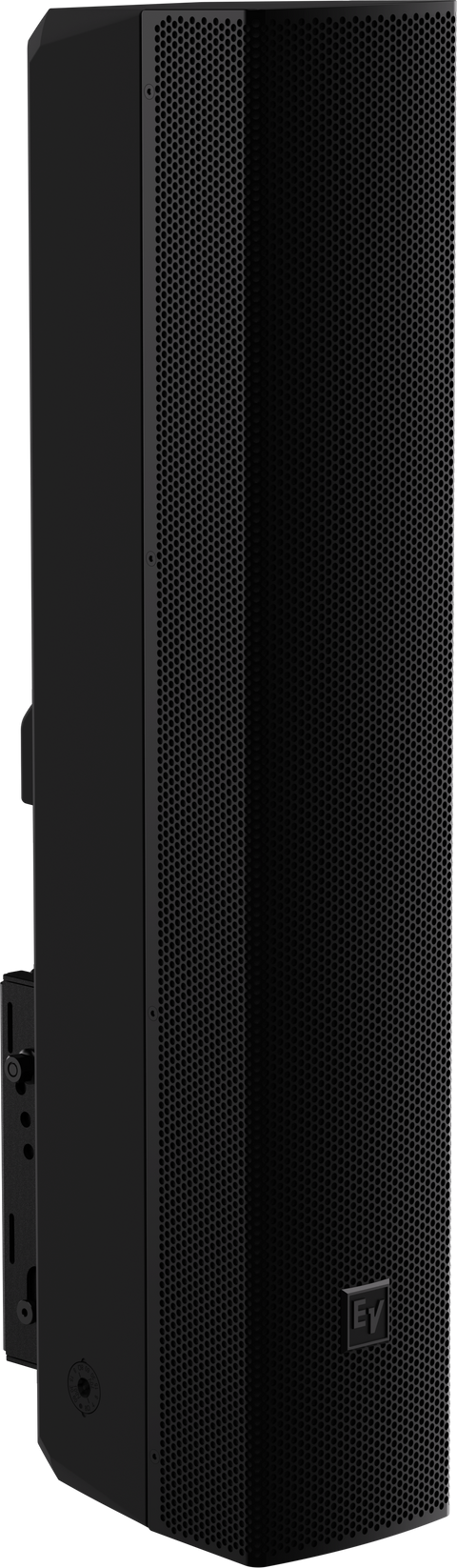

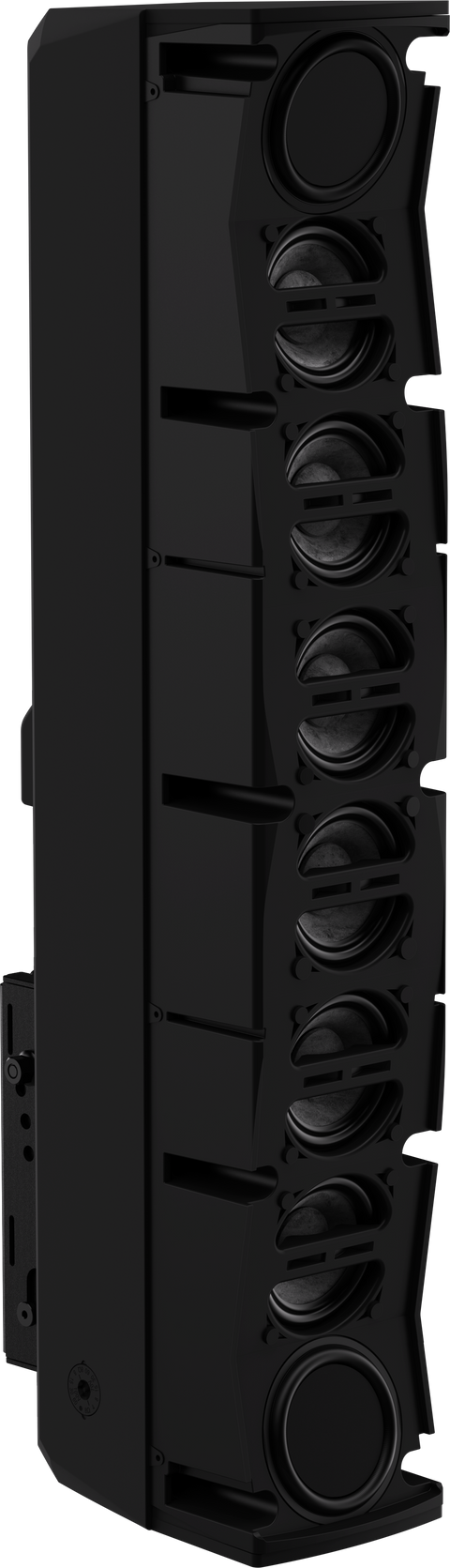

ELECTRO-VOICE LRC-1060 Column speaker, 0.6m, EN54

Rs. 108,012.00

Key Features

  • 22.8” (580 mm) high
  • 6x 2.5” (63.5 mm) full-range drivers
  • 2x 2.5” (63.4 mm) passive radiators
  • 20° symmetrical vertical coverage
  • 130° horizontal coverage
  • 75 Hz-15 kHz
  • 122 dB SPL (peak)
  • Lo-Z, 8 ohms, 200W program
  • 70/100V
Standard warranty provide by OEM
Rs. 108,012.00
ELECTRO-VOICE LRC-1060 Column speaker, 0.6m, EN54
Rs. 108,012.00

Product Description

LRC Line Radiator Column is a line of passive column loudspeakers engineered specifically for installation. LRC loudspeakers are simple, practical, and easy to install, offering a sleek, neutral industrial design that blends into a wide range of settings. LRC loudspeakers can play a role in any install as main speakers, support speakers, and foreground and background speakers.

LRC-1060 loudspeakers include a pre-installed transformer for connection to 70- or 100-volt lines. These models include EV’s patented Automatic Saturation Compensation (ASC) technology, which preserves low frequency response and protects system electronics from improper electrical loads when the transformer is engaged - regardless of the number of speakers connected to the line.

An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.

LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.

LRC-1060 loudspeakers are EN54-24 certified, and all models are supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software.

Specifications

Details
Frequency Range (-10 dB) 70 Hz – 15 kHz
Maximum SPL (1 m) 122 dB
Sensitivity 90 dB SPL (1 W/1 m)
Coverage (H × V) 130° × 20°
Continuous Power Handling 100 W
Program Power Handling 200 W
Peak Input Voltage (Lo-Z) 80 V
Nominal Impedance (Lo-Z) 8 Ω
Recommended High-Pass Filter ≥70 Hz Butterworth, 24 dB/oct
70 V Transformer Taps 60 W, 30 W, 15 W, 8 W, 4 W
100 V Transformer Taps 60 W, 30 W, 15 W, 8 W
Drivers 6 × 2.5" Active Drivers, 2 × 2.5" Passive Radiators
Connector Type 4-pin Euroblock (Input + Pass-Through)
Maximum Wire Size 12 AWG
Suspension Points 2 × M8
Mounting SwifTilt Multi-Angle Tilt + Pan Bracket
Maximum Pan Angle ±80°
Vertical Tilt Angles 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
IP Rating IP55 (Outdoor Rated)
Available Colors RAL 9004 Signal Black, RAL 9003 Signal White
Dimensions (H × W × D) 580 × 105 × 144 mm
Weight 4.4 kg
Shipping Weight 6.5 kg
Included Accessories Tilt Bracket, Pan Bracket, Gland Nut Weather Cover, Dual-Ended Allen/TR20 Key, Pre-installed M8 × 20 mm Eyebolt
