Electro-Voice EVOLVE 30M Portable Column PA System
Key Features
Product Description

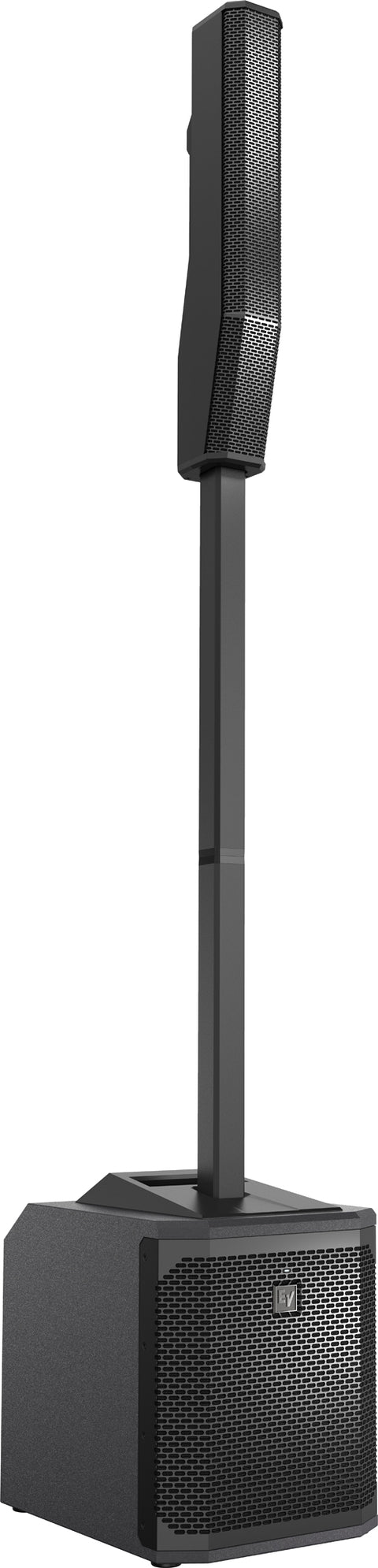

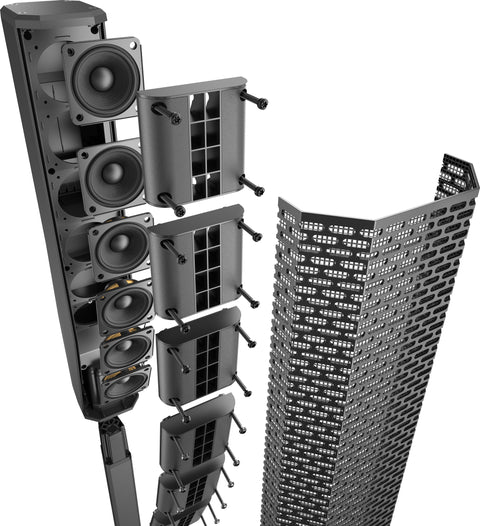

The Electro-Voice EVOLVE 30M is a compact, portable column loudspeaker system designed for solo performers, small bands, DJs, presentations, weddings, and small-to-medium venues. It combines a 10-inch powered subwoofer with a column array featuring six 2.8-inch neodymium drivers, delivering powerful sound with wide 120° × 40° coverage.
With a 1000 W amplifier, 123 dB maximum SPL, and a 45 Hz–20 kHz frequency range (-10 dB), the EVOLVE 30M provides strong bass, clear vocals, and room-filling sound in a compact format.

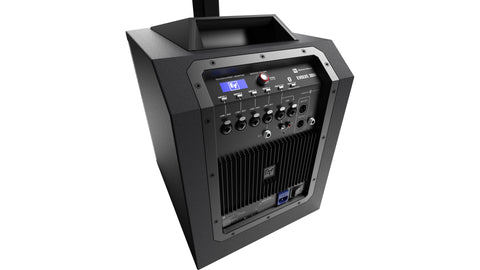

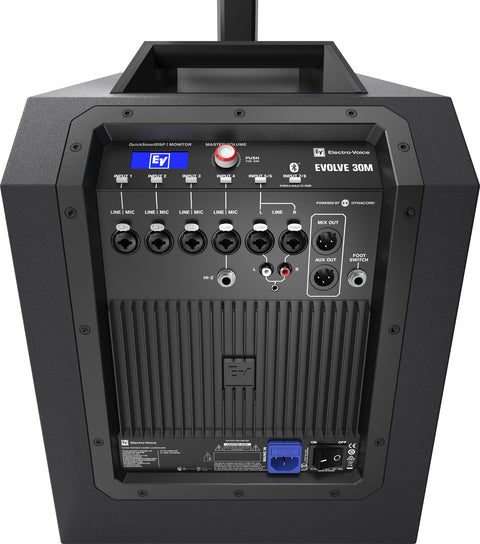

A major advantage is its integrated 8-channel digital mixer, which includes professional mic/line inputs, Hi-Z input, Bluetooth audio, built-in studio-quality effects, EQ controls, and QuickSmart DSP. The system can also be remotely controlled and monitored through the QuickSmart Mobile app.

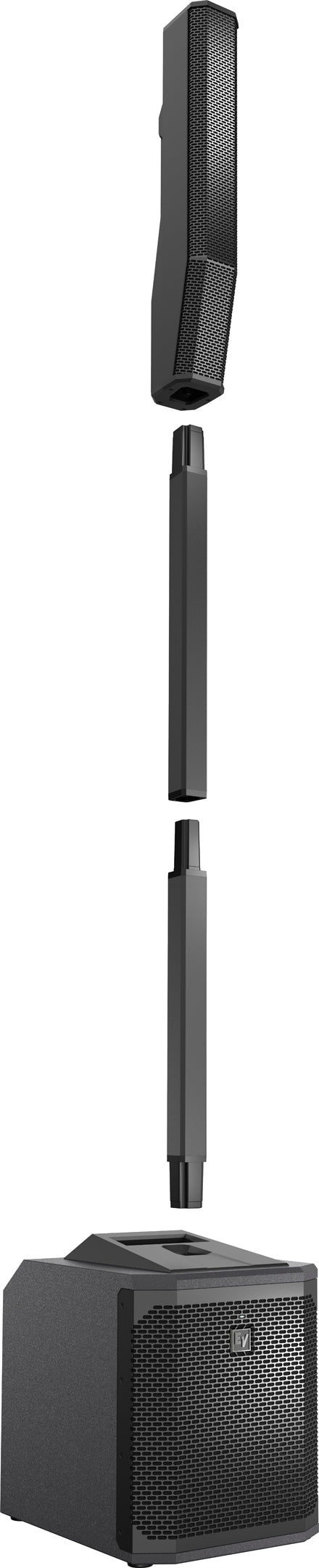

The system features a lightweight composite column, 15 mm plywood subwoofer enclosure, aluminum pole connection, and quick setup design, making it easy to transport and assemble for live events and professional applications.
Specifications
| Details | |
|---|---|
| Product Type | Portable Column Loudspeaker System |
| Amplifier Rating | 1000 W |
| LF / HF Channel Rating | 500 W / 500 W |
| Frequency Response (-3 dB) | 51 Hz – 20 kHz |
| Frequency Range (-10 dB) | 45 Hz – 20 kHz |
| Maximum SPL | 123 dB |
| Coverage (H × V) | 120° × 40° |
| Crossover Frequency | 200 Hz |
| LF System | Powered Subwoofer |
| HF System | Column Array |
| Inputs | 4 × XLR/TRS Mic/Line, 1 × 1/4" Hi-Z, 2 × XLR/TRS Stereo Line, RCA, 3.5 mm, Bluetooth |
| Outputs | XLR Mix Out, XLR Aux Out |
| Footswitch Input | 1 × 1/4" TRS |
| Subwoofer Enclosure | 15 mm Plywood |
| Column Enclosure | Composite |
| Pole Material | Aluminum |
| Grille | Steel with Powder Coat |
| Available Colors | Black or White |
| Subwoofer Dimensions | 448 × 332 × 432 mm |
| Column Dimensions | 620 × 95 × 157 mm |
| Net Weight | Sub: 15.8 kg; Column: 2.7 kg; Poles: 1.4 kg |
| Shipping Weight | 24.2 kg |
| Power Requirement | 100–240 V AC, 50–60 Hz, 1.5–0.6 A |
