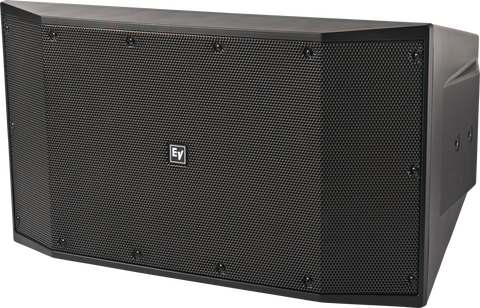

Electro-Voice EVID-S10.1D 2x10" cabinet subwoofer
Key Features
Product Description
The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10" (254 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.
The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.
The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.
Specifications
| Details | |
|---|---|
| Product Type | Dual 10" Surface-Mount Subwoofer |
| Frequency Range (-10 dB) | 33 Hz – 500 Hz |
| Power Handling (Continuous / Peak) | 400 W / 1600 W |
| Maximum SPL (1 m) | 120 dB |
| Sensitivity | 94 dB (1 W/1 m) |
| Low-Frequency Driver | 2 × 10" (254 mm) Woofers |
| Nominal Impedance | Stereo: 2 × 8 Ω; Mono: 1 × 4 Ω |
| Recommended High-Pass Frequency | 40 Hz |
| Connector Type | Two Removable Locking 4-Pin Euroblock Connectors (Input & Output) |
| Maximum Wire Size | 12 AWG (2.5 mm²) |
| Weatherized | Yes |
| Environmental Rating | IP54 (IEC 60529); IP65 with Port Covers |
| Available Colors | Black, White |
| Dimensions (H × W × D) | 356 × 651 × 491 mm |
| Net Weight | 17.9 kg |
| Shipping Weight | 21 kg |
