Electro-Voice ELX200-12P 12 inches Powered Loudspeaker
Electro-Voice ELX200-12P 12 inches Powered Loudspeaker
Electro-Voice ELX200-12P 12 inches Powered Loudspeaker
Electro-Voice ELX200-12P 12 inches Powered Loudspeaker
Electro-Voice ELX200-12P 12 inches Powered Loudspeaker

Electro-Voice ELX200-12P 12 inches Powered Loudspeaker

Rs. 138,564.00

Key Features

  • 1200 W Class-D high-efficiency powered amplifier
  • 12" EVS-12M woofer with 1" DH-1L titanium compression driver
  • Up to 130 dB maximum SPL
  • 51 Hz – 20 kHz frequency range
  • 90° × 60° wide, consistent coverage
  • EV-patented SST waveguide for low distortion and optimized acoustical loading
  • Built-in QuickSmartDSP with presets, EQ, limiter monitoring, and system matching
  • QuickSmart Mobile wireless control and monitoring for up to 6 ELX200 systems
  • 3-band EQ with 5 user-programmable presets

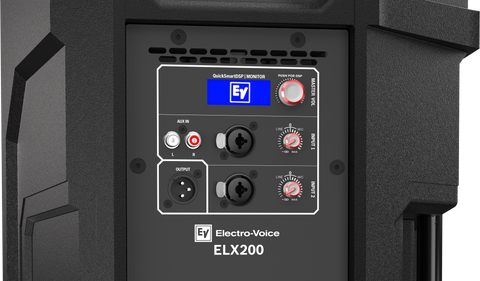

  • Stereo RCA, XLR/TRS combo inputs and XLR output
  • Rugged polypropylene enclosure with powder-coated steel grille
  • 3 × M10 suspension points and integrated pole mount
  • Ideal for live sound, DJs, events, portable PA, and installations
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 138,564.00
Electro-Voice ELX200-12P 12 inches Powered Loudspeaker
Rs. 138,564.00

Product Description

ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1L 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers,

three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

Specifications

Details
Product Type Powered 2-Way Loudspeaker
Power Rating 1200 W
Frequency Response (-3 dB) 57 Hz – 16 kHz
Frequency Range (-10 dB) 51 Hz – 20 kHz
Maximum SPL 130 dB
Coverage (H × V) 90° × 60°
LF Transducer EVS-12M 12" (300 mm) Woofer
HF Transducer DH-1L 1" Titanium Compression Driver
Crossover Frequency 1.7 kHz
Connectors 2 × XLR/TRS Combo, 1 × XLR Output, 1 × Stereo RCA
Enclosure Material Polypropylene
Grille 18 AWG Powder-Coated Steel
Suspension Points 3 × M10
Available Colors Black, White
Dimensions (H × W × D) 629 × 363 × 344 mm
Net Weight 15.6 kg
Shipping Weight 17.7 kg
Power Requirement 100–240 V AC, 50–60 Hz, 1.2–0.6 A
