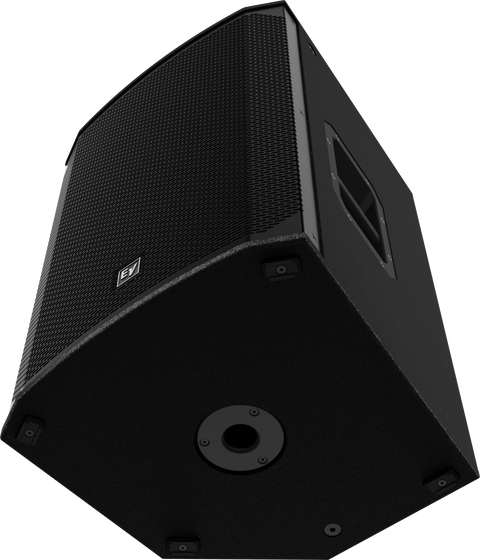

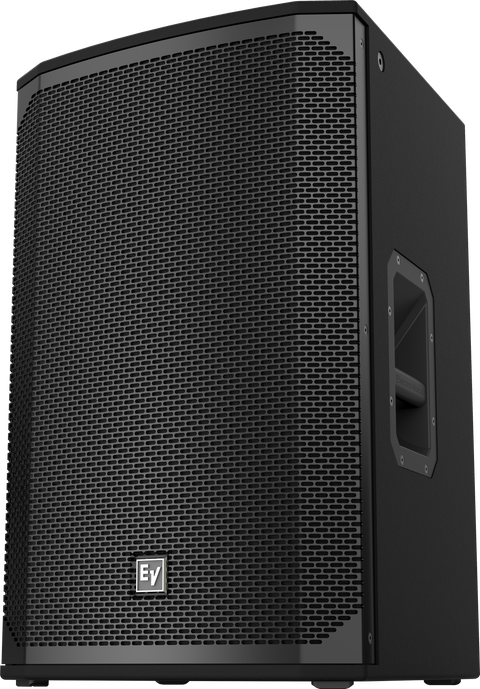

Electro-Voice EKX-15 15" Passive Loudspeaker
Key Features
Product Description
The Electro-Voice EKX-15 is a professional 15-inch passive 2-way loudspeaker designed for live sound reinforcement, DJs, musicians, rental companies, houses of worship, and permanent installations. As part of the EKX Series, it delivers powerful output with 400 W continuous / 1600 W peak power handling and up to 132 dB maximum SPL, making it suitable for medium to large venues. The speaker features Electro-Voice's patented Signal Synchronized Transducers (SST) waveguide technology for precise 90° × 60° coverage, consistent sound dispersion, and excellent vocal intelligibility. Its rugged 15 mm plywood enclosure with durable EVCoat finish, eight M10 suspension points, dual NL4 SpeakON connectors, and 40° monitor angle provide exceptional flexibility for both portable and installed sound applications.
Specifications
| Details | |
|---|---|
| Product Type | Passive 2-Way Full-Range Loudspeaker |
| Series | EKX |
| Powered / Passive | Passive |
| Frequency Response (-3 dB) | 75 Hz – 18 kHz |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz |
| Maximum SPL | 132 dB |
| Sensitivity | 96 dB (1 W/1 m) |
| Coverage (H × V) | 90° × 60° |
| Power Handling | 400 W Continuous / 1600 W Peak |
| Power Rating | 1600 W |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.2 Ω |
| Recommended High-Pass Frequency | 50 Hz |
| Crossover Frequency | 1.6 kHz |
| Low-Frequency Driver | EVS-15M 15" (381 mm) Woofer |
| High-Frequency Driver | DH-1M 1" Titanium Compression Driver |
| Connector Type | Dual NL4 SpeakON |
| Suspension Points | 8 × M10 Threaded Mounting Points |
| Enclosure Material | 15 mm Plywood with EVCoat Finish |
| Grille | 18 AWG Powder-Coated Steel |
| Dimensions (H × W × D) | 685 × 432 × 429 mm |
| Net Weight | 23.2 kg |
| Shipping Weight | 28.2 kg |
