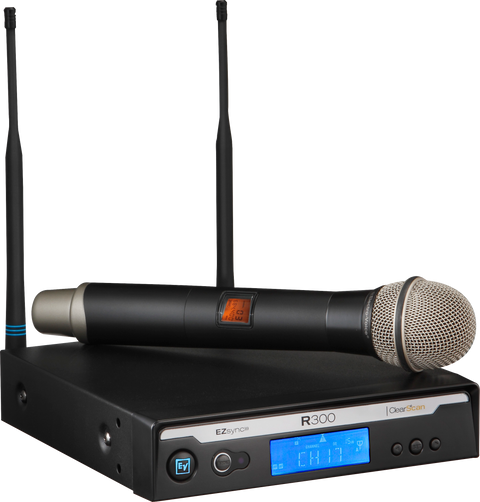

Electro-Voice R300-HD Handheld system with PL22 Dynamic Microphone
Key Features
Product Description

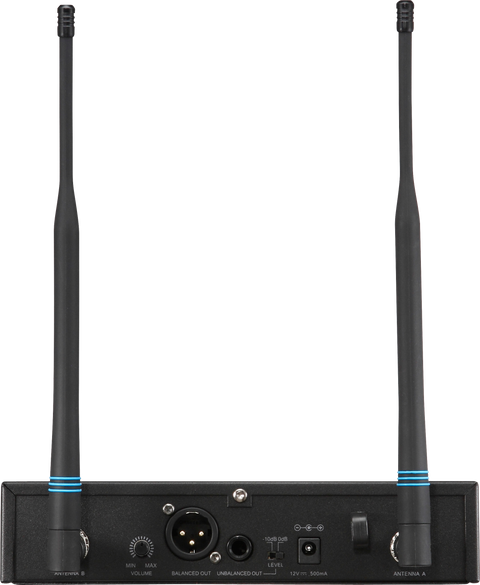

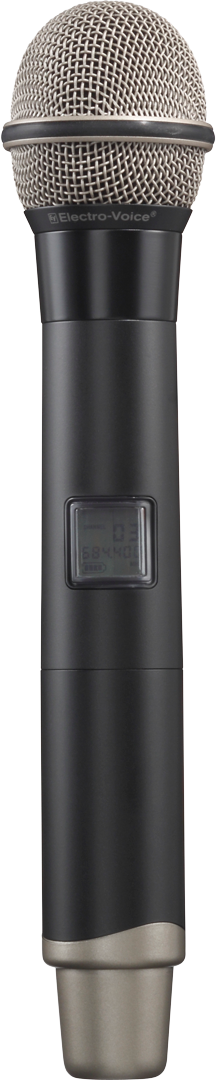

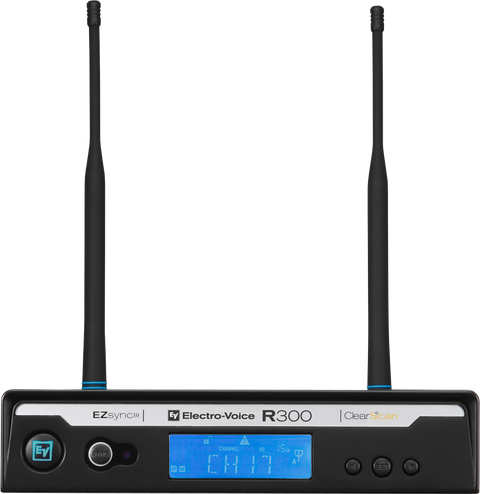

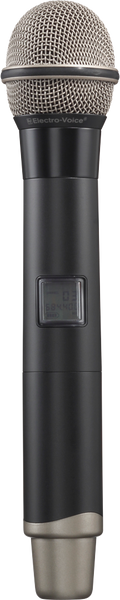

The R300-HD is a robust handheld UHF wireless system, suitable for any application where the convenience of a handheld transmitter is required. The HT-300 metal handheld transmitter is made to withstand the rigors of daily use while remaining comfortable and light-weight in your hand. The PL22 dynamic microphone is the perfect all-around microphone for singing, speaking engagements, and emcees. The cardioid pickup pattern rejects sounds from the surroundings, helps control audio feedback, and still allows an experienced vocalist to work the microphone. The receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.
Specifications
| Details | |
|---|---|
| Receiver Type | Synthesized PLL |
| Frequency Range | A: 618–634 MHz; B: 678–694 MHz; C: 516–532 MHz; E: 850–865 MHz |
| Number of Channels | 32 |
| Modulation | ±40 kHz |
| Diversity | True Antenna Diversity |
| RF Sensitivity | <1.0 μV @ 12 dB SINAD |
| Image Rejection | >55 dB |
| Squelch | Tone Code + Amplitude |
| Power Requirements | 12–16 VDC, 500 mA max |
| Operating Temperature | 5°C–45°C |
| Receiver Dimensions | 43 × 206 × 210 mm |
| Audio Frequency Response | 80 Hz–18 kHz ±2 dB |
| Balanced Output | 20 dBV max @ 40 kHz deviation |
| Unbalanced Output | Adjustable 8 mV–0.755 V RMS |
| Distortion | <1.0% (0.4% typical) |
| Signal-to-Noise Ratio | >100 dB A-weighted |
| Dynamic Range | >95 dB |
| Transmitters | BP-300 Bodypack & HT-300 Handheld |
| Radiated Output | 8 mW typical |
| LCD Display | Channel, Frequency, Mute & Battery Level |
| Handheld Microphone Head | Electro-Voice PL22 Cardioid Dynamic |
| Lavalier Microphone | Electro-Voice ULM18 Uni-Directional Condenser |
| Transmitter Power | 2 × AA Batteries |
| Battery Life | 14+ Hours with AA Alkaline |
| Bodypack Antenna | Flexible External 1/4-Wave |
| Handheld Antenna | Internal Proprietary |
| Bodypack Dimensions | 84 × 66 × 23 mm |
| Handheld Dimensions | 267 mm Long |
