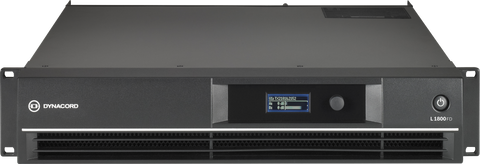

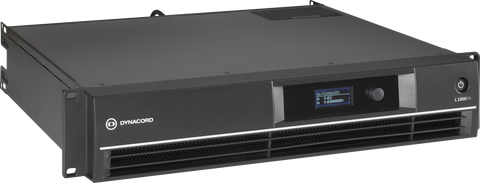

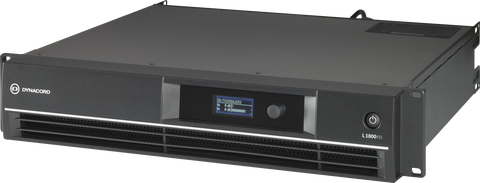

Dynacord L1800FD DSP 2 x 950 W 2-channel Amplifier for Live Performance
Rs. 212,340.00
Key Features
Standard warranty provide by OEM
Dynacord L1800FD DSP 2 x 950 W 2-channel Amplifier for Live Performance
Rs. 212,340.00
Product Description
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Specifications
| Details | |
|---|---|
| Amplifier Type | 2-Channel Professional Power Amplifier |
| Output Stage Topology | Class AB |
| Maximum Output Power – Single Channel | 1600 W @ 2 Ω; 1300 W @ 2.6 Ω; 950 W @ 4 Ω; 480 W @ 8 Ω |
| Maximum Output Power – Dual Channel | 1400 W @ 2 Ω; 1200 W @ 2.6 Ω; 850 W @ 4 Ω; 450 W @ 8 Ω |
| Maximum Output Power – Bridged | 2800 W @ 4 Ω; 1700 W @ 8 Ω |
| Maximum RMS Voltage Swing | 65.1 V |
| Voltage Gain | 32.0 dB |
| THD | < 0.05% |
| IMD-SMPTE | < 0.1% |
| Maximum Input Level | +21 dBu |
| Crosstalk | < -80 dB |
| Frequency Response | 10 Hz – 21 kHz (±1 dB) |
| Input Impedance | 20 kΩ, Active Balanced |
| Signal-to-Noise Ratio | >105 dB |
| Output Noise | < -68 dBu |
| Power Requirements | 100 / 120 / 230 / 240 V AC, 50–60 Hz |
| Power Consumption | 700 W @ 1/8 Maximum Output Power, 4 Ω |
| Protection | Audio Limiters, High Temperature, DC, HF, Back-EMF, Peak & Inrush Current Limiters, Turn-On Delay |
| Cooling | Front-to-Rear, 3-Stage Fans |
| Operating Temperature | +5°C to +40°C |
| Signal Processing | FIR Filters, Audio Limiters, Output & Array Delay, 10-Band User PEQ, 5-Band Array PEQ per Channel |
| Remote Control | SONICUE Sound System Software |
| Color | Black |
| Dimensions (W × H × D) | 483 × 88 × 462.4 mm |
| Weight | 15.2 kg |
| Accessories | RMK15 Rear Rack Mount Kit |
