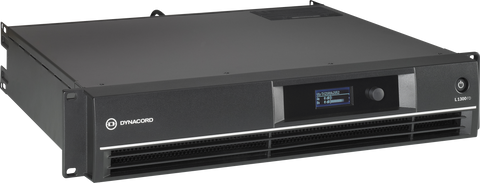

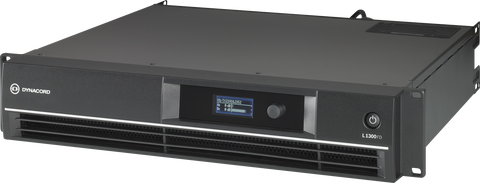

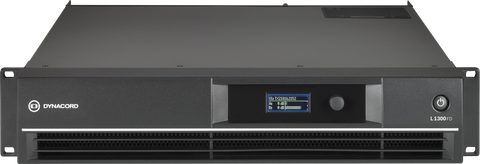

Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance
Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance
Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance
Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance
Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance

Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance

Rs. 166,836.00

Key Features

  • 2-Channel Professional Power Amplifier
  • 2 × 650 W @ 4 Ω Output Power
  • 2 × 400 W @ 8 Ω Output Power
  • Class-D Amplifier Technology
  • 70 V / 100 V Constant-Voltage Operation
  • High-Efficiency SMPS Power Supply
  • Built-in DSP with Advanced Speaker Processing
  • FIR-Drive Technology for Optimized Audio Performance
  • LCD Display with Intuitive Front-Panel Controls
  • Multiple DSP Presets for Easy System Setup
  • Comprehensive Protection Circuitry
  • XLR Inputs and Speakon Outputs
  • Compact 1U Rack-Mount Design
  • Ideal for Professional PA & Installed Sound Applications
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 166,836.00
Dynacord L1300FD DSP 2 x 650 W 2-channel Amplifier for Live Performance
Rs. 166,836.00

Product Description

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

Specifications

Details
Amplifier Type 2-Channel Professional Power Amplifier
Output Stage Topology Class AB
Maximum Output Power – Single Channel 1100 W @ 2 Ω; 950 W @ 2.6 Ω; 660 W @ 4 Ω; 350 W @ 8 Ω
Maximum Output Power – Dual Channel 1000 W @ 2 Ω; 850 W @ 2.6 Ω; 600 W @ 4 Ω; 320 W @ 8 Ω
Maximum Output Power – Bridged 2000 W @ 4 Ω; 1200 W @ 8 Ω
Maximum RMS Voltage Swing 55.3 V
Voltage Gain 32.0 dB
THD < 0.05%
IMD-SMPTE < 0.1%
Maximum Input Level +21 dBu
Crosstalk < -80 dB
Frequency Response 10 Hz – 21 kHz (±1 dB)
Input Impedance 20 kΩ, Active Balanced
Signal-to-Noise Ratio >104 dB
Output Noise < -68 dBu
Power Requirements 100 / 120 / 230 / 240 V AC, 50–60 Hz
Power Consumption 550 W @ ⅛ Maximum Output Power, 4 Ω
Protection Audio Limiters, High Temperature, DC, HF, Back-EMF, Peak Current & Inrush Current Protection
Cooling Front-to-Rear, 3-Stage Fans
Operating Temperature +5°C to +40°C
Signal Processing FIR Filters, Audio Limiters, Output & Array Delay, 10-Band User PEQ, 5-Band Array PEQ per Channel
Remote Control SONICUE Sound System Software
Color Black
Dimensions (W × H × D) 483 × 88 × 462.4 mm
Weight 12.9 kg
Accessories RMK15 Rear Rack Mount Kit
