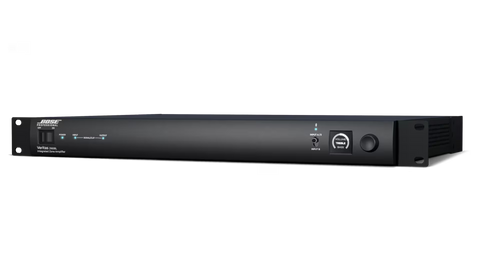

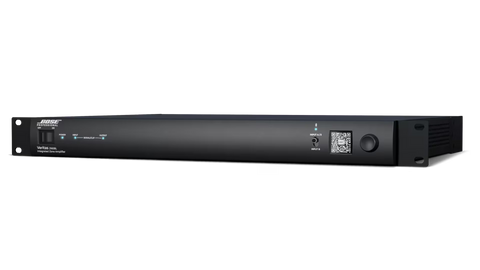

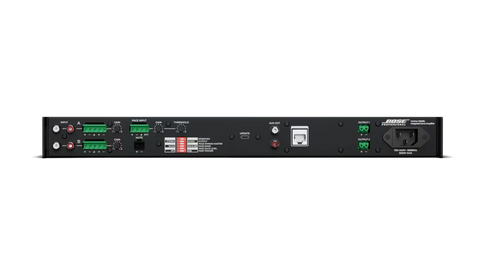

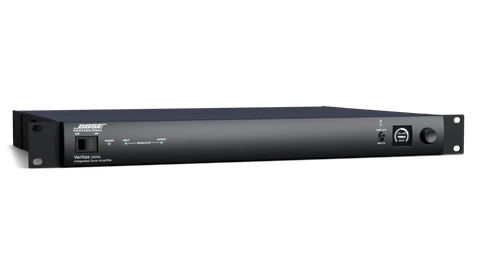

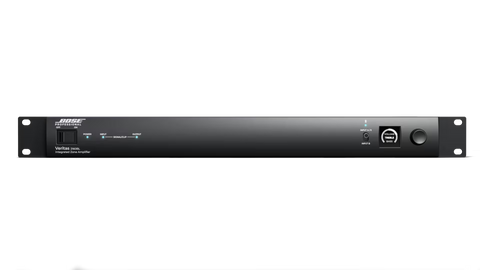

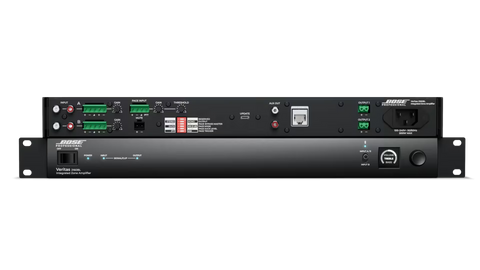

Bose Professional Veritas 2160BL Smart Mixer Amplifier
Key Features
Product Description
The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.
For applications requiring more power in a low-impedance 4/8-ohm system, the 2160BL delivers robust sound for larger rooms, restaurants, and performance spaces. It provides high output with advanced DSP tuning, perfect for integrators needing a high-performance amplifier for dynamic commercial audio without the complexity of a 70V/100V system.
Specification
| Specification | Details |
|---|---|
| Brand | Bose Professional |
| Model | Veritas 2160BL |
| Product Type | Smart Mixer Amplifier |
| Amplifier Type | Low-Impedance |
| Supported Load | 4–8Ω |
| Rated Power | 2 × 160W @ 4Ω / 2 × 80W @ 8Ω |
| Frequency Response | 20Hz – 20kHz (+0/-3dB) |
| THD+N | ≤0.5% @ Rated Power |
| Dynamic Range | 88dB |
| Channel Separation | ≤ -58dBu @ 1kHz |
| Analog Inputs | 2 × Balanced Line, 2 × Unbalanced Line, 1 × Balanced Mic/Line |
| Input Connectors | 2 × RCA Stereo Pairs, 2 × 5-Pin Euroblock, 1 × 4-Pin Euroblock |
| Input Impedance | 20kΩ Line / 2kΩ Paging |
| Input Range | -8dBu to +22dBu Line / -58dBu to +12dBu Paging |
| Maximum Input Level | +22dBu Line / +12dBu Paging |
| Analog Outputs | 2 × Loudspeaker + 1 × Unbalanced Line |
| Speaker Outputs | 2 × 2-Pin Inverted Euroblock |
| Aux Output | 1 × RCA Stereo Pair |
| Bluetooth | Bluetooth 5.0 |
| DSP | 24-bit / 48kHz |
| Audio Latency | 10.4ms |
| DSP Functions | Loudspeaker EQ, Opti-Voice Paging, Dynamic EQ |
| EQ Presets | Up to 30 Selectable Presets |
| Speaker Presets | AMU105, AMU108, DesignMax, EdgeMax, FreeSpace FS, Subwoofer, 80Hz HPF |
| Front Controls | Power, Input Select, Rotary Encoder |
| Rear Controls | Amplifier Mode DIP Switches, Input Gain, Page Threshold, Mute, ControlCenter Ports |
| Remote Control | Bose Professional / Third-Party Wall Controllers |
| Cooling | Fan Cooling, Left-to-Right Airflow |
| Power Supply | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | 13.6W Standby / 500W Maximum |
| Protection | High Temperature, Output Short Circuit, AC Line Voltage Protection |
| Dimensions (H × W × D) | 44 × 483 × 324mm |
| Rack Size | 1RU |
| Net Weight | 4.4kg |
| Shipping Weight | 5.8kg |
