Bose Professional VB1 / VB-S Videobar Mud Ring
Rs. 5,614.00
Key Features
Standard warranty provide by OEM
Bose Professional VB1 / VB-S Videobar Mud Ring
Rs. 5,614.00
Product Description

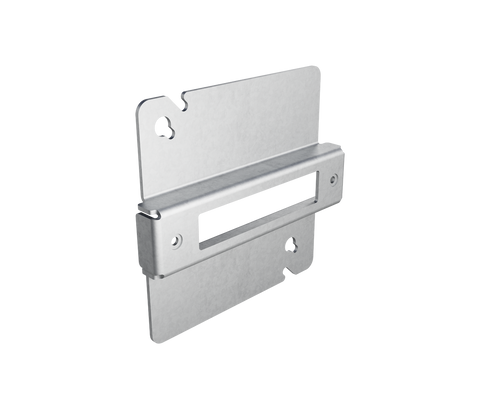

The Bose Professional Videobar Mud Ring is a clean and efficient mounting option for the Bose Professional Videobar VB1 or VB-S. It attaches to a2-gang electrical box above or below the room’s display screen, and then the Videobar VB1 or VB-S is mounted to it, creating a sleek conferencing setup that keeps wires hidden.
Specification
| Brand | Bose Professional |
| Model | Videobar Mud Ring |
| Model Number | MR1 |
| Compatible Products | Bose Professional Videobar VB1 / VB-S |
| Mounting Type | 2-gang electrical box mounting |
| Supported Electrical Boxes | Metal 2-gang boxes: 119 × 119 mm, 102 × 102 mm, or 95 × 95 mm |
| Mounting Location | Wall, above or below display |
| Tilt Adjustment | 5° upward / 20° downward |
| Wallboard Thickness | 10–16 mm (3/8–5/8 in) |
| Required Wall Opening | 134 × 38 mm (5.3 × 1.5 in) |
| Maximum Fixture Support | 4.5 kg (9.9 lb) or less |
| Product Dimensions (H × W × D) | 120 × 132 × 18 mm (4.7 × 5.2 × 0.7 in) |
| Net Weight | 0.29 kg (0.65 lb) |
| Application | Professional video conferencing installation |
| Installation Type | New-work electrical box / low-voltage Class 2 wiring |
| Key Benefit | Conceals electrical wiring for a clean installation |
