Bose Professional Surface-Mount Pan and Tilt Bracket for AMU, DesignMax and FreeSpace
Rs. 29,041.00
Key Features
Standard warranty provide by OEM
Bose Professional Surface-Mount Pan and Tilt Bracket for AMU, DesignMax and FreeSpace
Rs. 29,041.00
Product Description

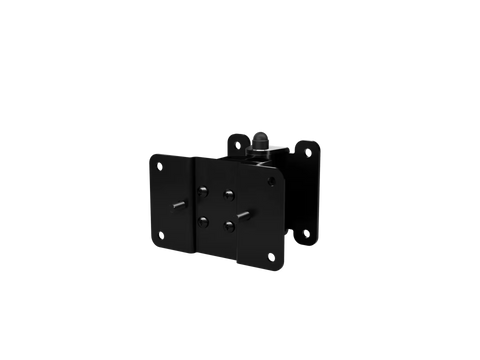

A surface-mount pan-and-tilt bracket that enables adjustment for both pitch and yaw, suitable for mounting either horizontally or vertically. The bracket is designed to fit the 4 M8 threaded inserts on the rear panel of the following models: DesignMax DM3SE, DM5SE, DM6SE, and DM8SE; FreeSpace FS2SE and FS4SE; 402 Series V; AMM108; AMU105, AMU108, AMU206, and AMU208.
Specification
| Brand | Bose Professional |
| Product Name | Surface-Mount Pan and Tilt Bracket for AMU, DesignMax and FreeSpace |
| Product Type | Surface-Mount Pan-and-Tilt Loudspeaker Bracket |
| Compatible Loudspeakers | DesignMax DM3SE, DM5SE, DM6SE, DM8SE; FreeSpace FS2SE, FS4SE; 402 Series V; AMM108; AMU105, AMU108, AMU206, AMU208 |
| Mounting Orientation | Horizontal or vertical |
| Adjustment | Pitch and yaw |
| Mounting Interface | 4 × M8 threaded inserts |
| Application | Indoor or outdoor use |
| Color Options | Black, White |
| Dimensions (H × W × D) | 152 × 111 × 112 mm |
| Net Weight | 1.11 kg |
| Black Product Code | 889687-0100 |
| White Product Code | 889687-0200 |
| Package Contents | Surface-Mount Pan and Tilt Bracket, installation guide, mounting screws and washers |
