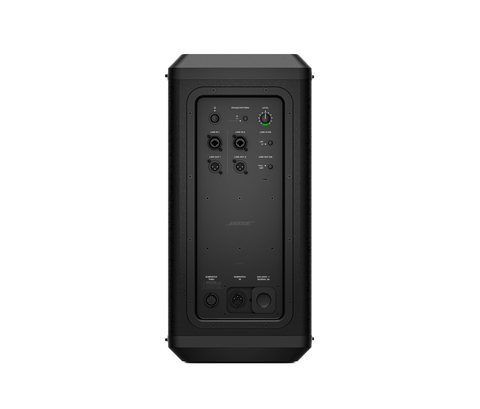

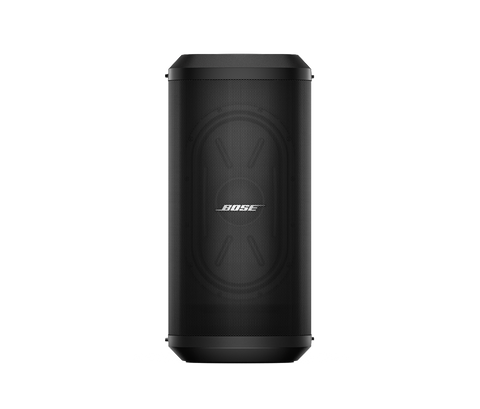

Bose Professional Sub1 Self-Powered Bass Module

Rs. 142,274.00

Key Features

Go from vehicle to venue easily with a slim design featuring a unique 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

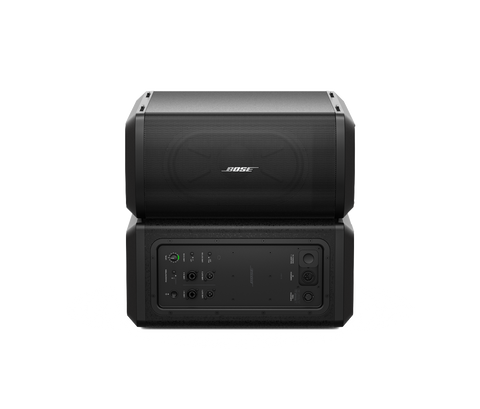

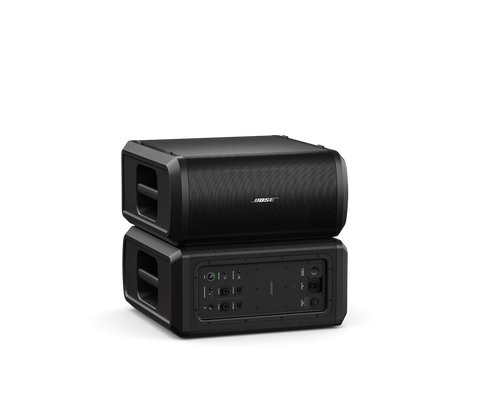

Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

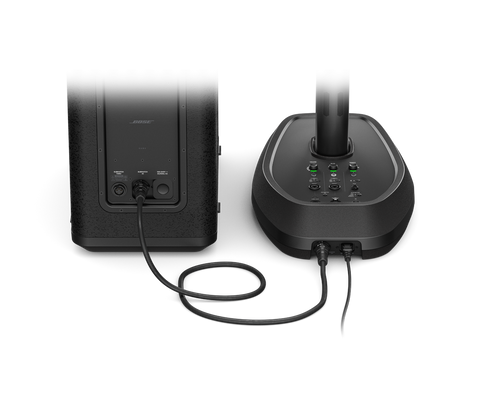

Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable

Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

Standard warranty provide by OEM
Rs. 142,274.00
Bose Professional Sub1 Self-Powered Bass Module
Rs. 142,274.00

Product Description

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7 × 13-inch high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.

Specification

Brand Bose Professional
Model Sub1
Product Type Self-Powered Bass Module
Frequency Response (-3 dB) 40 Hz – 180 Hz
Frequency Range (-10 dB) 32 Hz – 250 Hz
Maximum SPL 118.6 dB continuous / 124.6 dB peak @ 1 m
Coverage Omnidirectional; -10 dB rear rejection in Cardioid Mode
Crossover Frequency 200 Hz
Low-Frequency Driver 1 × 7 × 13-inch RaceTrack driver
Voice Coil 2-inch
Amplifier Type Class D
Amplifier Power 480 W
Cooling Convection cooling
Input Channels 2
Input 1 XLR / ¼-inch TRS combo, mic/instrument/line
Input 2 Bose proprietary SubMatch connection
Input Impedance 100 kΩ
Input Sensitivity / Gain +10 dB to +45 dB
Maximum Input Signal +24 dBu
Audio Output XLR balanced, line-level, full-frequency
SubMatch Thru Bose proprietary multi-pin connection
DSP Input EQ, output EQ, phase/pattern polarity inversion
Cardioid Mode Yes, when using two Sub1 modules
Pole Mount Integrated threaded pole mount
Bluetooth / App Control Bose Music app
Computer Interface USB Type-C
AC Power 100–240 VAC ±20%, 50/60 Hz
Power Connection IEC / SubMatch
Enclosure Material High-impact polypropylene and birch plywood
Grille Perforated steel, powder-coated
Dimensions (H × W × D) 533 × 260 × 529 mm
Net Weight 15.5 kg
Color Black
