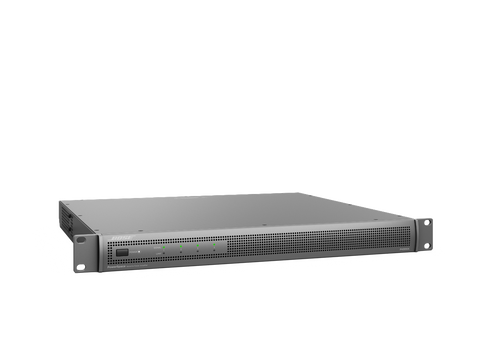

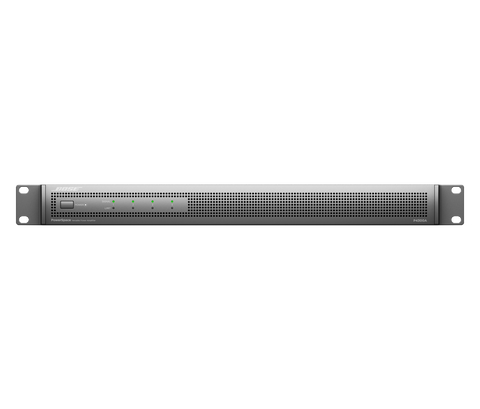

Bose Professional PowerSpace P4300A 4-Channel Versatile Power Amplifier

Rs. 288,800.00

Key Features

300 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems

AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure

Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging

I-Share outputs deliver 2x power level by combining the current of two channels

Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

Standard warranty provide by OEM
Rs. 288,800.00
Bose Professional PowerSpace P4300A 4-Channel Versatile Power Amplifier
Rs. 288,800.00

Product Description

Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P4300A provides 300 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.

Specification

Brand Bose Professional
Model PowerSpace P4300A
Product Type Versatile Power Amplifier
Amplifier Class Class D
Number of Channels 4
Rated Power 4 × 300W
Maximum Peak Power 600W Symmetrical
I-Share Mode Power 2 × 600W
Low-Impedance Load 4–8Ω
High-Impedance Load 70V / 100V
I-Share Load 2–4Ω / 70V / 100V
Low-Z Gain 32dB
70V Gain 35dB
100V Gain 38dB
Frequency Response 20Hz–20kHz ±1dB
THD+N <0.04% @ 1kHz
Dynamic Range ≥100dB, A-weighted
Channel Separation >80dB @ 1kHz / >65dB @ 20kHz
Analog Inputs 4 × Balanced
Input Connectors 2 × 6-Pin Euroblock
Input Impedance 10kΩ
Maximum Input Level 22dBu @ 14dBu Sensitivity
Input Sensitivity -10dBV / 4dBu / 14dBu
AmpLink Inputs 8 Digital Channels
AmpLink Thru 8 Digital Channels
AmpLink Connectors 1 × RJ-45 Input / 1 × RJ-45 Thru
Analog Outputs 4 Channels
Speaker Output Connector 1 × 8-Terminal Block
DSP No Integrated DSP
Audio Latency <1ms
Auto-Standby Yes
Front Control Power On/Off
Rear Controls Mute, Output Attenuators, Amplifier Configuration DIP Switches, Input Selector, Update Port, Gain/Sensitivity
Status Indicators Power/Status LED, 4 × Input Signal LEDs, 4 × Output Limit LEDs
Cooling Microprocessor-Controlled Variable-Speed Fans
Airflow Front-to-Back
Power Supply 100–240VAC ±10%, 50/60Hz
Power Consumption 25W Auto-Standby / 570W Maximum
Protection VPeak/VRMS Limiters, High Temperature, Output Short Circuit, EHF, Low/High AC Voltage
Operating Temperature 0°C–40°C
Mounting Rack Mount
Rack Space 1RU
Dimensions (H × W × D) 44 × 483 × 420mm
Net Weight 6.6kg
Shipping Weight 8.6kg
Colour Gray
