Product Description

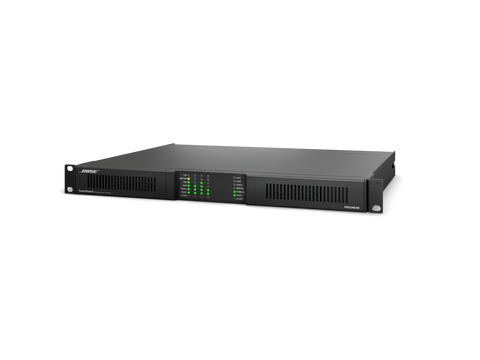

PowerShareX PSX2404D is a four-channel, 2400-watt smart amplifier designed for use with Bose Professional installed sound systems. Onboard DSP gives you instant access to optimized loudspeaker presets via ControlSpace Designer software with easy ecosystem integration across Bose Professional processors, loudspeakers, and controllers. Design, configuration, installation, and operation become simpler — so you can get the job done and move on to the next.
Specification
| Brand | Bose Professional |
| Model | PowerShareX PSX2404D |
| Product Type | Adaptable Power Amplifier |
| Amplifier Class | Class D |
| Number of Channels | 4 |
| Rated Power – Symmetrical | 4 × 600W @ 4Ω / 8Ω / 70V / 100V |
| Rated Power @ 2Ω | 4 × 800W |
| Total Rated Power | 2400W |
| Asymmetrical Rated Power | Up to 1700W @ 4Ω / 1300W @ 8Ω / 1700W @ 70V / 1500W @ 100V |
| Maximum Peak Power – Symmetrical | 4 × 1200W @ 4Ω / 8Ω / 70V / 100V |
| Maximum Peak Power @ 2Ω | 4 × 1600W |
| Asymmetrical Peak Power | Up to 3400W @ 4Ω / 2600W @ 8Ω / 3400W @ 70V / 3000W @ 100V |
| Supported Loads | 2Ω / 4Ω / 8Ω / 70V / 100V |
| Gain | 26dB / 29dB / 32dB / 35dB Selectable |
| Frequency Response | 20Hz–20kHz ±1.0dB |
| THD+N | <0.1% |
| Signal-to-Noise Ratio | >104dBA |
| Channel Separation | -70dB Typical @ 1kHz |
| Analog Inputs | 4 × Balanced Line |
| Analog Input Connector | 1 × 6-Pin Euroblock |
| Input Impedance | 20kΩ |
| Maximum Input Level | 20dBu |
| Dante Inputs | 4 Digital Channels |
| Dante Connector | 1 × RJ-45 |
| Analog Outputs | 4 Channels |
| Speaker Output Connector | 1 × 8-Pin Euroblock |
| DSP | Integrated DSP |
| DSP Resolution | 24-bit / 48kHz |
| DSP Internal Precision | 32-bit Floating Point |
| DSP Latency | 2.5ms Fixed |
| DSP Functions | Matrix Mixer, Input EQ, Array EQ, Loudspeaker EQ, Band-Pass, Limiters, Delay |
| Input EQ | 8-Band Parametric EQ, Notch, Shelving, HPF & LPF |
| Loudspeaker EQ | 9-Band Parametric EQ, Notch & Shelving |
| Array EQ | ArenaMatch Array EQ |
| Crossover | Butterworth, Bessel & Linkwitz-Riley up to 48dB/octave |
| Input Delay | Up to 2 Seconds |
| Output Delay | Up to 100ms |
| Loudspeaker Presets | Bose Professional Loudspeaker Presets |
| Control Software | ControlSpace Designer 5.12 or later |
| Network Interface | RJ-45 Ethernet |
| GPIO / Notification | 1 × 12-Pin Euroblock, 3 Pins per Channel |

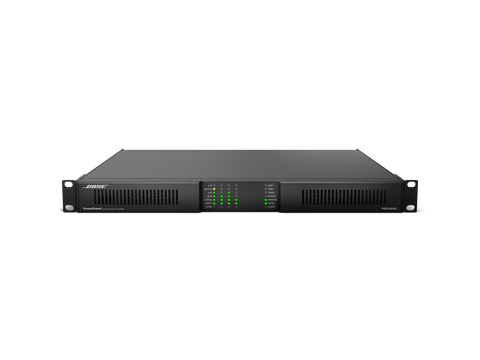

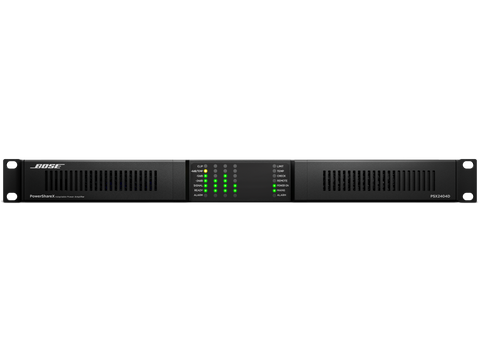

| Front Controls | Power, Soft Reset, Hard Reset, Check, 4 × Channel Attenuation |

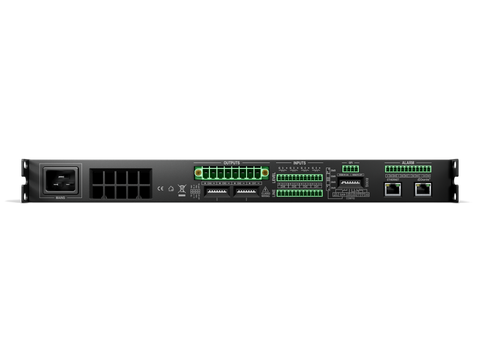

| Rear Controls | 16 × Output DIP Switches, 8 × System Configuration DIP Switches |
| Status Indicators | 21 × Channel Meter LEDs, 7 × System Status LEDs, 2 × Power LEDs |
| Cooling | Temperature-Controlled Variable-Speed Fan |
| Airflow | Front-to-Back |
| Power Supply | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | 31.1W Idle / 405W @ 1/8 Power, 4Ω |
| Protection | High Temperature, DC, Output Short Circuit, High Frequency, AC Voltage, Inrush, Clip, Peak & RMS |
| Operating Temperature | 0°C–35°C |
| Mounting | Rack Mount |
| Rack Space | 1RU |
| Dimensions (H × W × D) | 44.5 × 483 × 358mm |
| Net Weight | 7.0kg |
| Shipping Weight | 10.3kg |
| Colour | Black |
