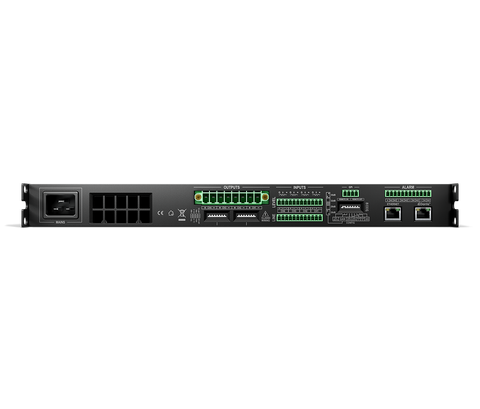

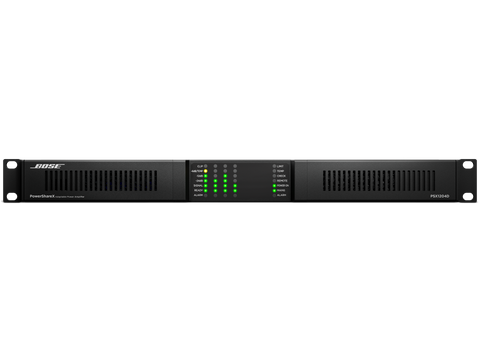

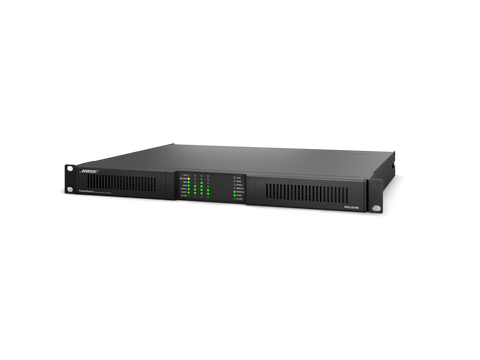

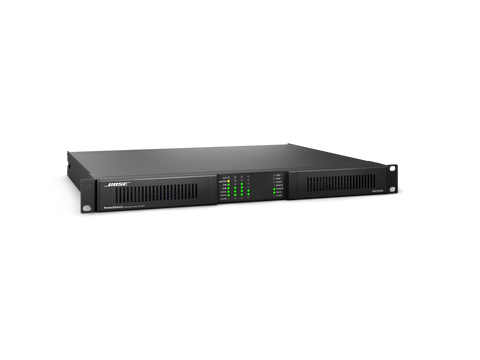

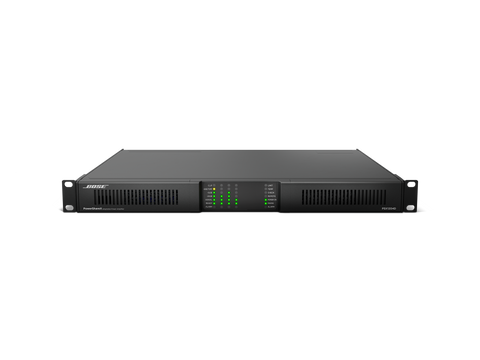

Bose Professional PowerShareX PSX1204D 4 -Channel Adaptable Power Amplifier

Rs. 581,405.00

Key Features

Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose Professional loudspeakers.

Bose Professional certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose Professional system from a single UI for easy design, configuration, control, and monitoring.

Proven Powersoft reliability: Ensures the systems operate every day, mitigating non-billable service calls.

Flexible outputs: Capable of handling either low-impedance (2, 4, 8Ω) or high-impedance (70, 100V) loudspeaker loads.

Built-in Dante audio: Supports up to 4 digital input channels from a Dante network eliminating the requirement of ordering and installing an accessory network card.

4 analog inputs: Provide line-level source connections.

PowerShare Design Tool: A downloadable design tool that allows system designers the ability to choose their PowerShare amp and simulate the power-sharing capability that, in some cases, can lead to a lower-power model requirement and cost savings.

GPIO connections: Provide a remote level, on/off, and alarm triggers.

Network monitoring: Provides real-time system performance data, minimizing downtime, guesswork, and unnecessary service calls.

Rack-friendly 1RU design: That is only 358 mm (14.1 in) deep eliminating the need for oversized racks.

EN 54-16 compliant for reliable use in VA/PAVA systems with other compliant system components.

Standard warranty provide by OEM
Rs. 581,405.00
Bose Professional PowerShareX PSX1204D 4 -Channel Adaptable Power Amplifier
Rs. 581,405.00

Product Description

PowerShareX PSX1204D is a four-channel, 1200-watt smart amplifier designed for use with Bose Professional installed sound systems. Onboard DSP gives you instant access to optimized loudspeaker presets via ControlSpace Designer software with easy ecosystem integration across Bose Professional processors, loudspeakers, and controllers. Design, configuration, installation, and operation become simpler — so you can get the job done and move on to the next.

Specification

Brand Bose Professional
Model PowerShareX PSX1204D
Product Type Adaptable Power Amplifier
Amplifier Class Class D
Number of Channels 4
Rated Power – Symmetrical 4 × 300W @ 4Ω / 8Ω / 70V / 100V
Rated Power – 2Ω 4 × 400W
Rated Power – Asymmetrical Up to 1100W
Maximum Peak Power – Symmetrical 800W @ 2Ω / 600W @ 4Ω, 8Ω, 70V, 100V
Maximum Peak Power – Asymmetrical 2200W
Supported Loads 2Ω, 4Ω, 8Ω, 70V, 100V
Gain 26dB / 29dB / 32dB / 35dB Selectable
Frequency Response 20Hz–20kHz (±1.0dB)
THD+N <0.1%
Signal-to-Noise Ratio >104dBA
Channel Separation -70dB Typical @ 1kHz
Analog Inputs 4 × Balanced Line
Analog Input Connector 1 × 6-Pin Euroblock
Input Impedance 20kΩ
Maximum Input Level 20dBu
Dante Inputs 4 Digital Channels
Dante Connector 1 × RJ-45
Analog Outputs 4 Channels
Speaker Output Connector 1 × 8-Pin Euroblock
DSP Integrated DSP
DSP Resolution 24-bit / 48kHz
DSP Internal Precision 32-bit Floating Point
DSP Latency 2.5ms Fixed
DSP Functions Matrix Mixer, Input EQ, Array EQ, Loudspeaker EQ, Band-Pass, Limiters, Delay
Input EQ 8-Band Parametric EQ, Notch, Shelving, HPF, LPF
Loudspeaker EQ 9-Band Parametric EQ, Notch, Shelving
Crossover Butterworth, Bessel & Linkwitz-Riley up to 48dB/octave
Input Delay Up to 2 Seconds
Output Delay Up to 100ms
Loudspeaker Presets Bose Professional Loudspeaker Presets
Control Software ControlSpace Designer 5.12 or later
Network Interface RJ-45 Ethernet
GPIO / Notification 12-Pin Euroblock, 3 pins per channel
Front Controls Power, Soft Reset, Hard Reset, Check, 4 × Channel Attenuation
Rear Controls 16 × Output DIP Switches, 8 × System Configuration DIP Switches
Status Indicators 21 × Channel Meter LEDs, 7 × System Status LEDs, 2 × Power LEDs
Cooling Temperature-Controlled Variable-Speed Fan
Airflow Front-to-Back
Power Supply 100–240VAC ±10%, 50/60Hz
Power Consumption 31.1W Idle / 251W @ 1/8 Power, 4Ω
Protection High Temperature, DC, Output Short Circuit, High Frequency, AC Voltage, Inrush, Clip, Peak & RMS
Operating Temperature 0°C–35°C
Mounting Rack Mount
Rack Space 1RU
Dimensions (H × W × D) 44.5 × 483 × 358mm
Net Weight 7.0kg
Shipping Weight 10.3kg
Colour Black
