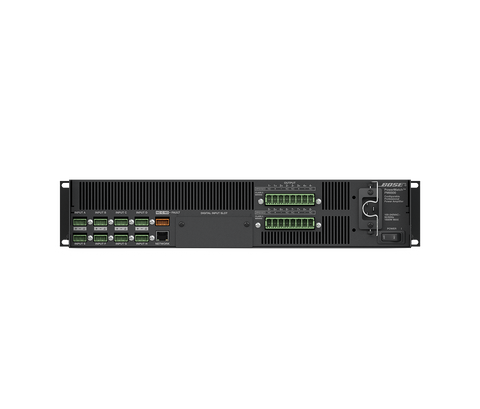

Bose Professional PM8500N PowerMatch 8-Channel Configurable Professional Power Amplifier
Bose Professional PM8500N PowerMatch 8-Channel Configurable Professional Power Amplifier

Bose Professional PM8500N PowerMatch 8-Channel Configurable Professional Power Amplifier

Rs. 870,525.00

Key Features

QuadBridge Technology — Allows the 4 available channels to be configured as Mono, V-Bridge, I-Share or Quad mode, allowing the total available power of the amplifier to be allocated to one or more output channels. The amplifier is capable of driving both low impedance and 70/100V loudspeaker loads directly.

Bose Professional ControlSpace Designer software — PowerMatch amplifiers can be fully configured using ControlSpace Designer software via the front panel USB connection, or the rear panel Ethernet connection. Using ControlSpace Designer software you can access additional features including: Parametric EQ stages, load sweep of each output channel and auto standby. ControlSpace Designer software is also used to integrate network model PowerMatch amplifiers into larger control and monitoring systems comprised of Bose Professional ESP processors and CC control centers.

Auto-Standby/Auto-Wake function — When enabled, this function automatically enters/exits Standby Mode, allowing the system to consume less power.

Dual voltage and current feedback loop — Proprietary design combines Class-D efficiency with a unique current and voltage feedback loop circuit that continuously monitors and controls both the current and voltage delivered to the loudspeaker load. Independent of power level and load impedance, the amplifier consistently delivers the widest possible dynamic range, frequency response and lowest possible distortion.

PeakBank power supply — Regenerative 4-quadrant power supply enables higher power density while allowing the re-use of energy from reactive loads that is normally wasted in conventional Class-D designs. This highly efficient amplifier design delivers sustainable and repeatable low frequency response.

Fast-tracking power factor correction (PFC) — Efficiently manages the current drawn from the AC mains, allowing the amplifier to drive loudspeakers to maximum output longer without power fluctuation. PFC provides superior transient response and functions at peak burst power much longer than conventional Class-D amplifier designs to satisfy the requirements of even the most demanding program material.

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 870,525.00
Bose Professional PM8500N PowerMatch 8-Channel Configurable Professional Power Amplifier
Rs. 870,525.00

Product Description

The Bose Professional PowerMatch PM8500N configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability for fixed installation sound reinforcement systems. Ethernet-based networking enables configuration, control and monitoring, and an expansion slot supports input from optional digital audio accessory cards. The front-panel USB connection allows for direct configuration PC connection to a single amplifier. PowerMatch amplifiers utilize numerous Bose Professional technologies to deliver an unprecedented combination of performance, efficiency and ease of installation—all in a reliable, proprietary design.

Specification

Brand Bose Professional
Model PowerMatch PM8500N
Product Type Configurable Professional Power Amplifier
Amplifier Class Class D
Number of Channels 8
Rated Power @ 2Ω 450 W/channel
Rated Power @ 4Ω 500 W/channel
Rated Power @ 8Ω 300 W/channel
Maximum Rated Power 4000 W @ 4Ω
Mono Mode 450 W @ 2Ω / 500 W @ 4Ω / 300 W @ 8Ω
V-Bridge Mode Up to 1000 W/channel
I-Share Mode Up to 1000 W
Quad Mode Up to 2000 W
High-Impedance Support 70V / 100V
Frequency Response 20 Hz – 20 kHz (±0.5 dB)
THD+N <0.4% @ 1 W
Signal-to-Noise Ratio >102 dB, A-weighted
Channel Separation >65 dB @ 1 kHz
Damping Factor >1000 @ 4Ω
Analog Inputs 8 balanced line-level
Input Connectors 8 × 3-pin Euroblock
Input Impedance >100 kΩ
Maximum Input Level +24 dBu
Input Sensitivity 0 / +4 / +12 / +24 dBu, selectable
Analog Outputs 2–8, configurable
Output Connectors 2 × 8-pin Euroblock
Digital Audio Optional expansion card
DSP Integrated
DSP Resolution 24-bit / 48 kHz
DSP Routing 8 × 8 matrix
Input EQ 5-band PEQ, notch, shelving, HPF, LPF
Loudspeaker EQ 9-band PEQ, shelving, HPF, LPF
Array EQ 2-band RoomMatch array EQ
Crossover Butterworth, Bessel, Linkwitz-Riley up to 48 dB/octave
Maximum Output Delay 3 seconds
Audio Latency <0.95 ms
Limiters Peak & RMS voltage
Network / Control Ethernet via RJ-45
Computer Interface USB Type-B / RJ-45 Ethernet
Software ControlSpace Designer 3.2 or later
Cooling Variable-speed fans, front-to-rear airflow
Power Supply 100–240 VAC, 50/60 Hz
Maximum Power Consumption 1789 W
Standby Power 31 W
Operating Temperature 0°C to 40°C
Dimensions (H × W × D) 88 × 483 × 525 mm
Rack Space 2U
Net Weight 12.9 kg
Color Black
