Product Description

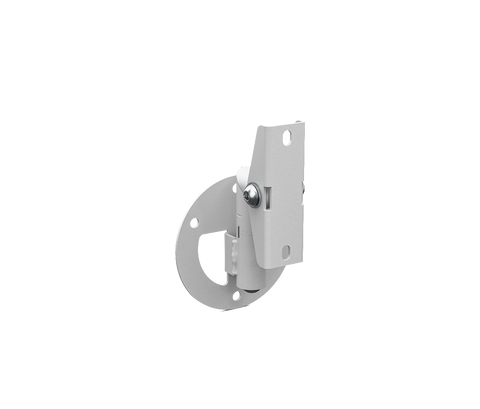

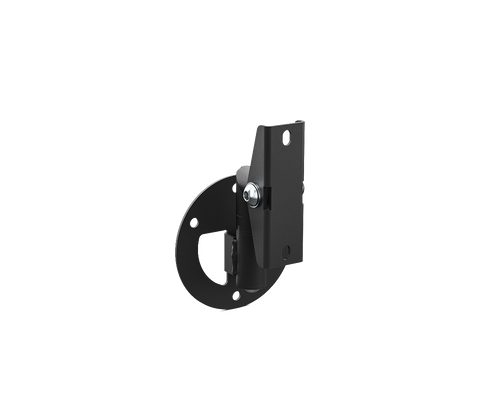

A pan-and-tilt bracket that allows both pitch and yaw adjustment when the loudspeaker is mounted in either horizontal or vertical speaker orientation. The bracket fits the 2 × M6 threaded inserts on the rear of the DesignMax DM3SE surface-mount loudspeaker. The DMSBRKT bracket can be installed on a wall or ceiling. The DMSBRKT is for indoor use only. Includes installation hex key tool, horizontal adapter plate, and cosmetic cover. Compatible with FreeSpace FS2SE surface mount loudspeakers.
Specification
| Brand | Bose Professional |
| Model | DesignMax Pan-and-Tilt Small Bracket |
| Model / Type | DMSBRKT |
| Product Type | Pan-and-Tilt Loudspeaker Mounting Bracket |
| Compatible Loudspeakers | DesignMax DM3SE; FreeSpace FS2SE |
| Mounting Orientation | Horizontal or vertical |
| Adjustment | Pitch and yaw adjustment |
| Mounting Location | Wall or ceiling |
| Loudspeaker Connection | 2 × M6 threaded inserts |
| Application | Indoor use only |
| Color Options | Black, White |
| Black Product Code | 799376-0110 |
| White Product Code | 799376-0210 |
| Included Accessories | Installation hex key, horizontal adapter plate, cosmetic cover |
| Bracket Dimensions | Approx. 75 × 65 × 56 mm* |
