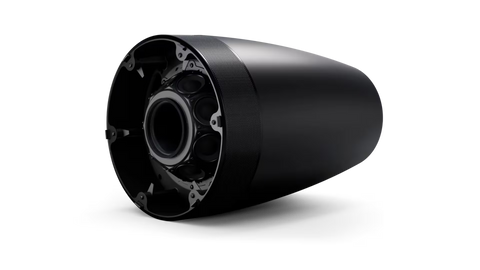

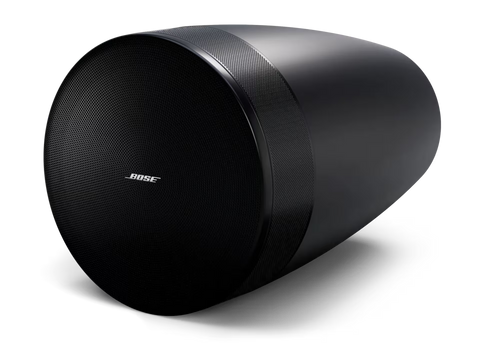

Bose Professional DesignMax Luna DML88P Extended-Range Pendant Loudspeaker
Key Features
Product Description

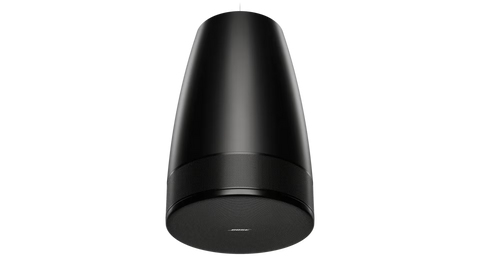

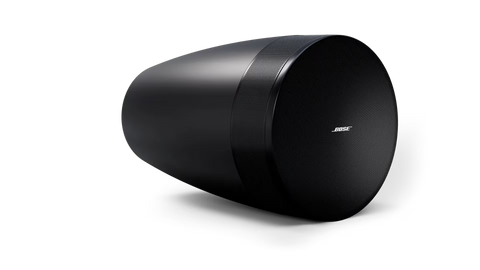

The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design

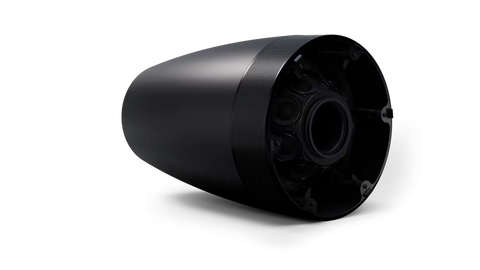

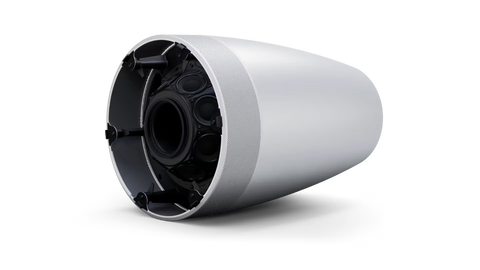

DesignMax Luna makes it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs — even in challenging ceiling conditions — while concealed wiring keeps everything looking clean.
Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.
Specifications
| Brand | Bose Professional |
| Model | DesignMax Luna DML88P |
| Product Type | Extended-Range Pendant Loudspeaker |
| Configuration | 2-Way Pendant Loudspeaker |
| Low-Frequency Driver | 1 × 8" (203 mm) Woofer |

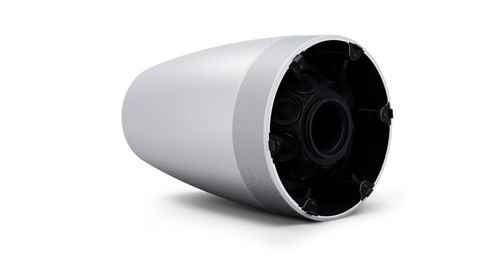

| High-Frequency Drivers | 8 × 2" (51 mm) Drivers in Circular Ring Array™ |
| Technology | Proprietary Ring Array™ |
| Frequency Response (-3 dB) | 50 Hz – 15 kHz |
| Frequency Range (-10 dB) | 40 Hz – 20 kHz |
| Coverage | 140° Conical |
| Maximum SPL – Continuous | 107 dB @ 1 m |
| Maximum SPL – Peak | 113 dB @ 1 m |
| Nominal Impedance | 8 Ω (Transformer Bypass) |
| Sensitivity | 85 dB SPL / 1W @ 1m |
| Power Handling – Long-Term | 140 W |
| Power Handling – Peak | 560 W |
| Recommended High-Pass | 40 Hz |
| Crossover | 600 Hz Passive 2-Way |

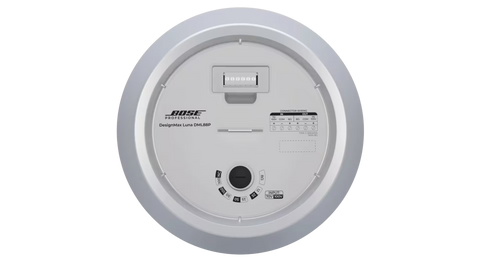

| 70V Transformer Taps | 12 / 25 / 50 / 100 W / Bypass |
| 100V Transformer Taps | 25 / 50 / 100 W / Bypass |
| Signal Processing | Not Required; Bose Professional EQ & SmartBass Available |
| Enclosure Material | Engineered Plastics |
| Grille | Perforated Steel, Powder-Coated, Paintable |
| Logo | Rotatable and Removable |
| Environmental Rating | Indoor Only |
| Operating Temperature | 0°C – 50°C |

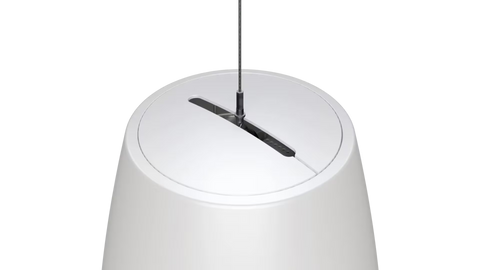

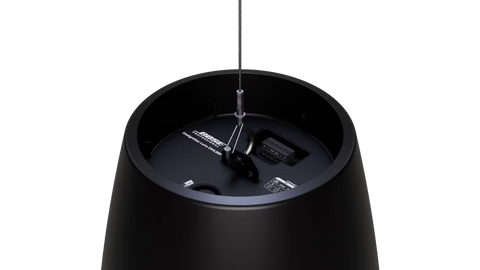

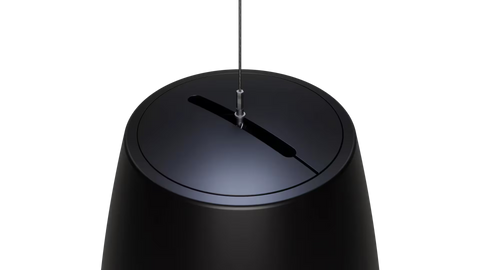

| Suspension / Mounting | Single-Point or Two-Point Suspension |

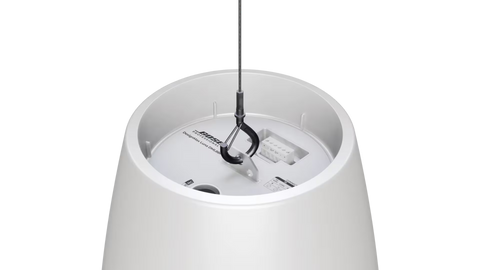

| Suspension Attachment | 3-Hole Suspension Cable Attachment Point |

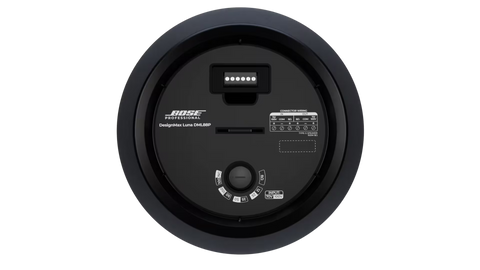

| Connector | 6-Pin Euroblock with Loop-Through |
| Dimensions | 308 × 492 mm (Diameter × Depth) |
| Net Weight | 10.0 kg |
| Colours | Black (Similar RAL 9005), White (Similar RAL 9003), Paintable |
| Product Configuration | Single Loudspeaker |

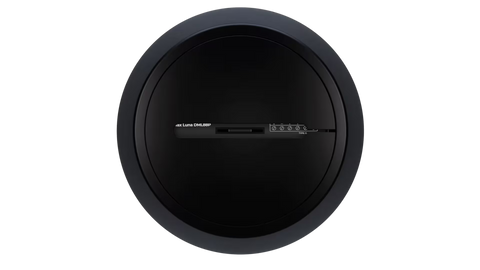

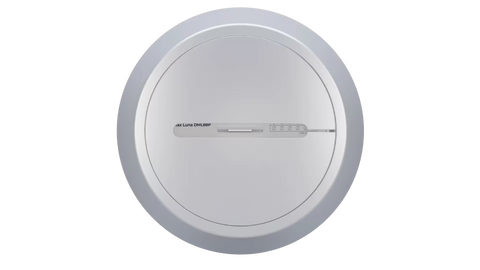

| Included Accessories | Connection Panel Cover, Adjustable Suspension Cable System, 4 Cable Ties, Installation Guide |
| Optional Accessories | DesignMax Pendant Threaded Rod Adapter, Conduit Adapter |
