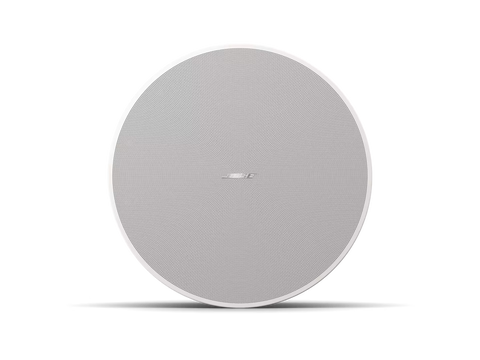

Bose Professional DesignMax DM8C In-Ceiling Loudspeaker

Bose Professional DesignMax DM8C In-Ceiling Loudspeaker

Rs. 175,080.00

Key Features

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourse, and convention centers

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 175,080.00
Bose Professional DesignMax DM8C In-Ceiling Loudspeaker
Rs. 175,080.00

Product Description

With coaxial two-way drivers, the 150-watt Bose Professional DesignMax DM8C loudspeaker delivers powerful SPL suitable for foreground music — along with premium aesthetics that complement any commercial sound installation. The DM8C features a two-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, delivering a 52 Hz – 20 kHz frequency range. The in-ceiling DM8C is installed easily via QuickHold mounting arms.

Specifications

Brand Bose Professional
Model DesignMax DM8C
Product Type In-Ceiling Loudspeaker
Configuration 2-Way Coaxial
Low-Frequency Driver 1 × 8" (203 mm) Woofer
High-Frequency Driver 1 × 1" (25 mm) Coaxial Center-Firing Compression Driver
Technology Coaxial 2-Way Design
Frequency Range (-10 dB) 52 Hz – 20 kHz
Coverage – Horizontal 135° Conical
Coverage – Vertical 135° Conical
Maximum SPL 113 dB @ 1 m
Sensitivity 91 dB SPL / 1W @ 1m
Nominal Impedance 8 Ω (Transformer Bypass)
Power Handling – Continuous 150 W
Power Handling – Peak 600 W
Crossover 1.5 kHz Passive 2-Way
Recommended High-Pass 48 Hz, 24 dB/Octave
70V Transformer Taps 2.5 / 5 / 10 / 20 / 40 / 80 W / Bypass
100V Transformer Taps 5 / 10 / 20 / 40 / 80 W / Bypass
Signal Processing Not Required; Bose Professional EQ & SmartBass Available
Enclosure Material Engineered-Plastic Front Baffle with Integrated Steel-Formed Backcan
Grille Magnetically Attached Perforated Steel, Powder-Coated, Paintable, Safety Tether
Environmental Rating Indoor Only
Ceiling Cutout 349 mm (13.75")
Maximum Ceiling Thickness 76 mm (3")
Loudspeaker Dimensions 409 × 255 mm (16.1 × 10.0")
Backcan Dimensions 340 × 240 mm (13.4 × 9.5")
Net Weight 9.6 kg per Loudspeaker with Grille
Tile Bridge Weight 1.0 kg
Shipping Weight 12.7 kg per Loudspeaker
Mounting 3 × QuickHold Spring-Loaded Mounting Arms
Safety Mounting 3 × Safety Cable Attachment Points
Connector 6-Pin Euroblock with Loop-Through
Wire Entry Top Entry for up to 9.5 mm (3/8") Conduit
Operating Temperature 0°C to 50°C
Colours White / Black / Paintable
Product Configuration Single Loudspeaker
Included Accessories Adjustable Tile Bridge, Cutout Template
Optional Accessory DesignMax DM8C Rough-In Kit (6-Pack)
