Product Description

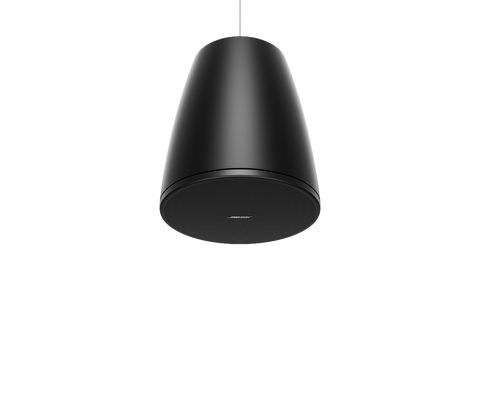

With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Specifications
| Brand | Bose Professional |
| Model | DesignMax DM6PE |
| Product Type | Outdoor Pendant-Mount Loudspeaker |
| Configuration | 2-Way Coaxial |
| Low-Frequency Driver | 1 × 6.5" (165 mm) Weather-Treated Woofer |
| High-Frequency Driver | 1 × 1.25" (32 mm) Weather-Treated Neodymium Dome Tweeter |
| Technology | Dispersion Alignment System |
| System Diameter | 197 mm (7.75") |
| Frequency Range (-10 dB) | 62 Hz – 20 kHz |
| Coverage – Horizontal | 115° Conical |
| Coverage – Vertical | 115° Conical |
| Maximum SPL | 110 dB @ 1 m |
| Sensitivity | 89 dB SPL / 1W @ 1m |
| Nominal Impedance | 8 Ω (Transformer Bypass) |
| Power Handling – Continuous | 100 W |
| Power Handling – Peak | 400 W |
| Crossover | 1.7 kHz Passive 2-Way |
| Recommended High-Pass | 60 Hz, 24 dB/Octave |
| 70V Transformer Taps | 2.5 / 5 / 10 / 20 / 40 / 80 W / Bypass |
| 100V Transformer Taps | 5 / 10 / 20 / 40 / 80 W / Bypass |
| Signal Processing | Not Required; Bose Professional EQ & SmartBass Available |
| Enclosure Material | Engineered Plastics, Highly UV Fade-Resistant |
| Grille | Perforated Steel, Powder-Coated, Paintable |
| Ingress Protection | IP55 |
| Environmental Use | Outdoor / Wet Locations |
| Operating Temperature | -25°C to 65°C |
| Suspension System | Single-Point Suspension |
| Safety Mounting | 1 × Safety Cable Attachment Point |
| Suspension Cable | 4.57 m × 2 mm Adjustable Cable |
| Safe Working Load | 45.36 kg (100 lb) |
| Connector | 6-Pin Euroblock with Loop-Through |
| Product Dimensions | 308 × 375 mm (Diameter × Depth) |
| Net Weight | 5.7 kg per Loudspeaker |
| Shipping Weight | 15.0 kg per Pair |
| Colours | Black (RAL 9005), White (RAL 9003), Paintable |
| Product Configuration | 1 Pair |
| Included Accessories | 2 × Adjustable Suspension Cables, 4 × Cable Ties, 1 × Weather-Resistant Input Cover |
