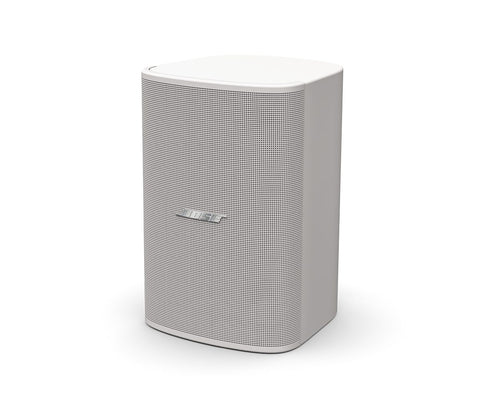

Bose Professional DesignMax DM5SE Surface-Mount Loudspeaker (1 pair)

Rs. 171,998.00

Key Features

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use

Standard warranty provide by OEM
Rs. 171,998.00
Bose Professional DesignMax DM5SE Surface-Mount Loudspeaker (1 pair)
Rs. 171,998.00

Product Description

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation

Specification

Brand Bose Professional
Model DesignMax DM5SE
Product Type Surface-Mount Loudspeaker
Configuration 2-Way Coaxial
Low-Frequency Driver 1 × 5.25" (133 mm) Weather-Treated Woofer
High-Frequency Driver 1 × 1" (25 mm) Weather-Treated Neodymium Dome Tweeter
Technology Dispersion Alignment System
Frequency Range (-10 dB) 65 Hz – 20 kHz
Coverage – Horizontal 135° Conical
Coverage – Vertical 135° Conical
Maximum SPL 107 dB @ 1 m
Sensitivity 89 dB SPL / 1W @ 1m
Nominal Impedance 8 Ω (Transformer Bypass)
Power Handling – Continuous 60 W
Power Handling – Peak 240 W
Crossover 1.8 kHz Passive 2-Way
Recommended High-Pass 65 Hz, 24 dB/Octave
70V Transformer Taps 3 / 6 / 12 / 25 / 50 W / Bypass
100V Transformer Taps 6 / 12 / 25 / 50 W / Bypass
Enclosure Material Engineered Plastics, Highly UV Fade-Resistant
Grille Perforated Aluminum, Powder-Coated, Tamper-Resistant, Paintable
Ingress Protection IP55
Environmental Use Outdoor / Wet Locations
Operating Temperature -25°C to 70°C
Mounting System QuickHold with Included U-Bracket
Mounting Angles 0°, 15°, 30°, 45°
Safety Mounting Safety-Tether Attachment Point
Connector 6-Pin Euroblock with Loop-Through
Dimensions – Speaker 286 × 192 × 197 mm (H × W × D)
Dimensions with Bracket 286 × 192 × 215 mm
Net Weight 4.4 kg per Loudspeaker with Grille
Shipping Weight 11.4 kg per Pair
Colours Black (RAL 9005), White (Similar RAL 9003), Paintable
Product Configuration 1 Pair
Included Accessory Powder-Coated Steel U-Bracket
