Product Description

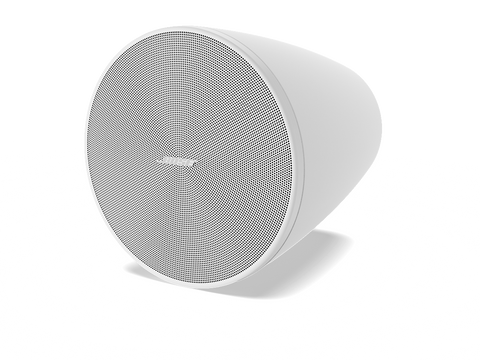

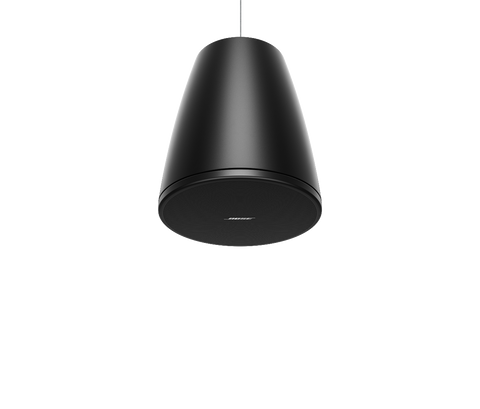

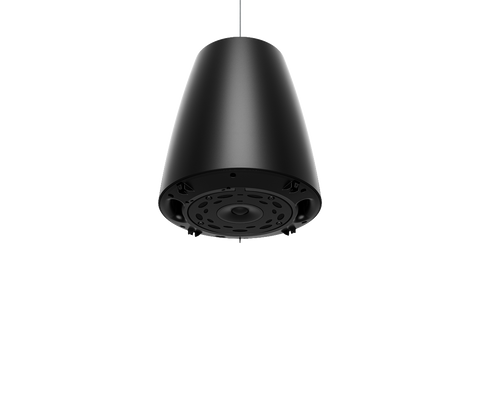

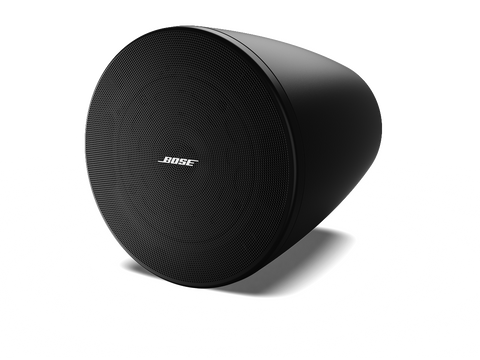

With a coaxial two-way design, the 60-watt Bose Professional DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Specifications
| Brand | Bose Professional |
| Model | DesignMax DM5P |
| Product Type | Pendant-Mount Loudspeaker |
| Configuration | 2-Way Coaxial |
| Low-Frequency Driver | 1 × 5.25" (133 mm) Woofer |
| High-Frequency Driver | 1 × 1" (25 mm) Neodymium Dome Tweeter |
| Technology | Dispersion Alignment System |
| System Diameter | 165 mm (6.5") |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Coverage – Horizontal | 120° Conical |
| Coverage – Vertical | 120° Conical |
| Maximum SPL | 105 dB @ 1 m |
| Sensitivity | 87 dB SPL / 1W @ 1m |
| Nominal Impedance | 8 Ω (Transformer Bypass) |
| Power Handling – Continuous | 50 W |
| Power Handling – Peak | 200 W |
| Crossover | 1.8 kHz Passive 2-Way |
| Recommended High-Pass | 65 Hz, 24 dB/Octave Minimum |
| 70V Transformer Taps | 3 / 6 / 12 / 25 / 50 W / Bypass |
| 100V Transformer Taps | 6 / 12 / 25 / 50 W / Bypass |
| Signal Processing | Not Required; Bose Professional EQ & SmartBass Available |
| Enclosure Material | Engineered Plastics |
| Grille | Perforated Steel, Powder-Coated, Paintable |
| Logo | Rotatable and Removable |
| Environmental Rating | Indoor Only |
| Operating Temperature | 0°C to 50°C |
| Loudspeaker Dimensions | 259 × 300 mm (Diameter × Depth) |
| Suspension Cable | 4.57 m × 2 mm |
| Suspension Mounting | 1 Suspension Attachment Point |
| Safety Mounting | 1 Safety Cable Attachment Point |

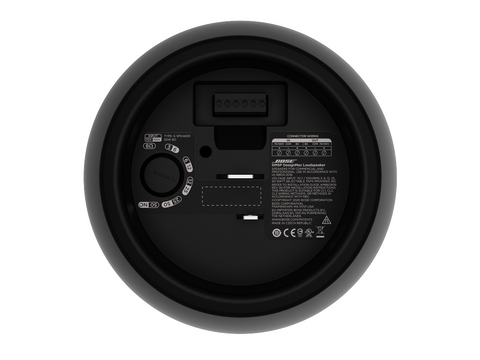

| Connector | 6-Pin Euroblock with Loop-Through |
| Net Weight | 4.1 kg per Loudspeaker |
| Shipping Weight | 11.0 kg per Pair |
| Colours | Black (RAL 9005), White (RAL 9003), Paintable |
| Product Configuration | 1 Pair |
| Included Accessories | 2 Suspension Cables, 2 Cable Fasteners, 2 Cable Fastener Tools, 8 Cable Ties, Installation Guide |
| Optional Accessories | Threaded Rod Adapter, Conduit Adapter, Pendant Suspension Cable Kit |
