Product Description

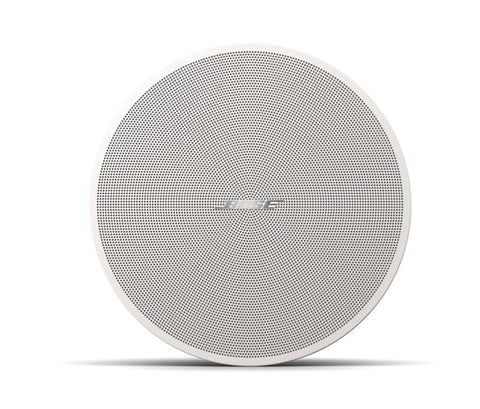

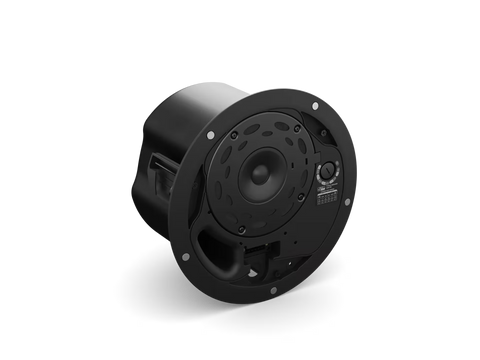

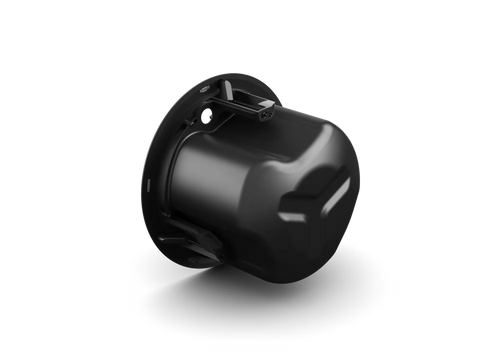

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5C features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The in-ceiling DM5C is installed easily via QuickHold mounting arms.
Specification
| Brand | Bose Professional |
| Model | DesignMax DM5C |
| Product Type | In-Ceiling Loudspeaker |
| Configuration | 2-Way Coaxial |
| Low-Frequency Driver | 1 × 5.25" (133 mm) Woofer |
| High-Frequency Driver | 1 × 1" (25 mm) Neodymium Dome Tweeter |
| Technology | Dispersion Alignment System |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Coverage | 130° Conical |
| Maximum SPL | 105 dB @ 1 m |
| Sensitivity | 87 dB SPL / 1W @ 1m |
| Nominal Impedance | 8 Ω (Transformer Bypass) |
| Power Handling – Continuous | 60 W |
| Power Handling – Peak | 240 W |
| Crossover | 1.8 kHz Passive 2-Way |
| Recommended High-Pass | 65 Hz, 24 dB/Octave |
| 70V Transformer Taps | 3 / 6 / 12 / 25 / 50 W / Bypass |
| 100V Transformer Taps | 6 / 12 / 25 / 50 W / Bypass |
| Enclosure Material | Engineered-Plastic Front Baffle with Integrated Steel Backcan |
| Grille | Magnetically Attached Perforated Steel, Powder-Coated, Paintable |
| Environmental Rating | Indoor Only |
| Ceiling Cutout | 250 mm (9.8") |
| Maximum Ceiling Thickness | 48 mm (1.9") |
| Product Dimensions | 303 × 205 mm (11.9 × 8.1") |
| Backcan Dimensions | 243 × 192 mm (9.6 × 7.6") |
| Net Weight | 4.5 kg per Loudspeaker |
| Tile Bridge Weight | 0.9 kg |
| Shipping Weight | 13.2 kg per Pair |
| Mounting | 3 × QuickHold Spring-Loaded Mounting Arms |
| Safety Mounting | 3 × Safety Cable Attachment Points |
| Connector | 6-Pin Euroblock with Loop-Through |
| Operating Temperature | 0°C to 50°C |
| Colours | White / Black / Paintable |
| Safety Compliance | UL 1480A, UL 2043, NFPA 70, NFPA 90A, CE |
| Product Configuration | 1 Pair |
