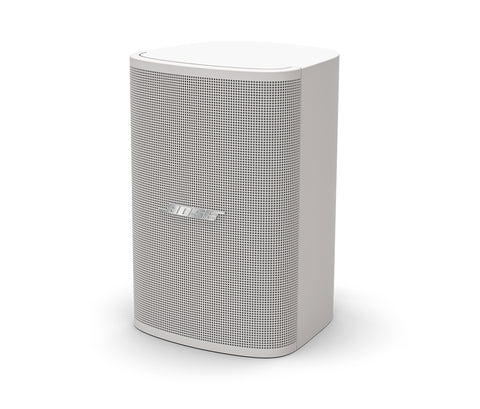

Bose Professional DesignMax DM3SE Surface-Mount Loudspeaker

Rs. 99,035.00

Key Features

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use

Standard warranty provide by OEM
Rs. 99,035.00
Bose Professional DesignMax DM3SE Surface-Mount Loudspeaker
Rs. 99,035.00

Product Description

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

Specification

Brand Bose Professional
Model DesignMax DM3SE
Product Type Surface-Mount Loudspeaker
Configuration 2-Way Coaxial
Low-Frequency Driver 1 × 3.25" (83 mm) Weather-Treated Woofer
High-Frequency Driver 1 × 0.75" (20 mm) Weather-Treated Neodymium Dome Tweeter
Technology Dispersion Alignment System
Frequency Range (-10 dB) 75 Hz – 20 kHz
Coverage – Horizontal 140° Conical
Coverage – Vertical 140° Conical
Maximum SPL @ 1 m 101 dB
Sensitivity 86 dB SPL / 1 W @ 1 m
Nominal Impedance 8 Ω (Transformer Bypass)
Power Handling – Continuous 30 W
Power Handling – Peak 120 W
Recommended High-Pass Filter 80 Hz, 24 dB/octave
Crossover 1.7 kHz, Passive 2-Way
Transformer Taps – 70V 3 / 6 / 12 / 25 W / Bypass
Transformer Taps – 100V 6 / 12 / 25 W / Bypass
Enclosure Material Highly UV Fade-Resistant Engineered Plastics
Grille Perforated Aluminum, Powder-Coated, Tamper-Resistant, Paintable
Weather Protection IP55
Application Indoor / Outdoor
Operating Temperature -25°C to 70°C
Mounting QuickHold U-Bracket; 0°, 15°, 30° & 45° Mounting Angles
Dimensions (H × W × D) 232 × 154 × 155 mm
Dimensions with Bracket 232 × 154 × 171 mm
Net Weight 2.5 kg per loudspeaker
Shipping Weight 7.2 kg per pair
Connector 6-Pin Euroblock with Loop-Through
Available Colours Black / White / Paintable
Package Configuration 1 Pair
Included Accessories 2 U-Brackets, 2 Weather-Resistant Input Covers, Installation Guide
