Bose Professional DesignMax DM3P Pendant-Mount Loudspeaker (1 pair)

Rs. 92,585.00

Key Features

Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker

Deliver clear highs and surprising low end for their size with a coaxial two-way design — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

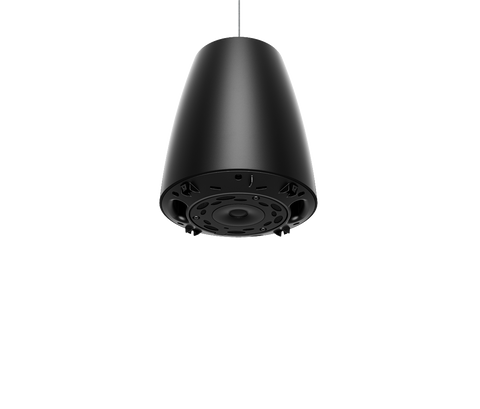

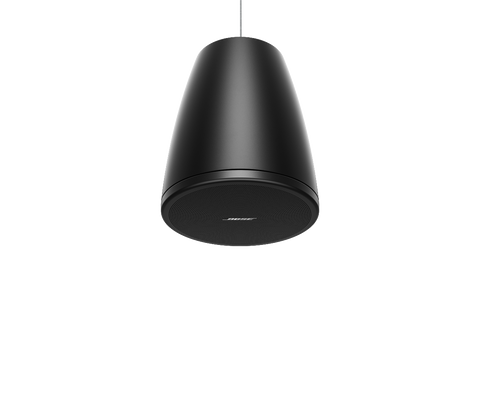

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

Standard warranty provide by OEM
Rs. 92,585.00
Bose Professional DesignMax DM3P Pendant-Mount Loudspeaker (1 pair)
Rs. 92,585.00

Product Description

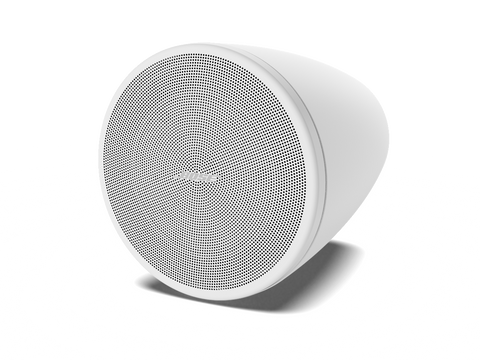

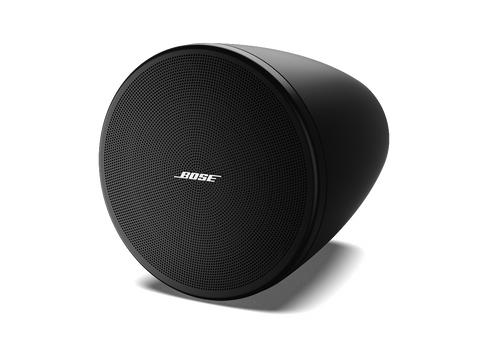

With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

Specifications

Brand Bose Professional
Model DesignMax DM3P
Product Type Pendant-Mount Loudspeaker
Configuration 2-Way Coaxial
Low-Frequency Driver 1 × 3.25" (83 mm) Woofer
High-Frequency Driver 1 × 0.75" (20 mm) Neodymium Dome Tweeter
Technology Dispersion Alignment System
System Diameter 127 mm (5")
Frequency Range (-10 dB) 75 Hz – 20 kHz
Coverage – Horizontal 130° Conical
Coverage – Vertical 130° Conical
Maximum SPL 99 dB @ 1 m
Sensitivity 84 dB SPL / 1W @ 1m
Nominal Impedance 8 Ω (Transformer Bypass)
Power Handling – Continuous 25 W
Power Handling – Peak 100 W
Crossover 1.7 kHz Passive 2-Way
Recommended High-Pass 80 Hz, 24 dB/Octave Minimum
70V Transformer Taps 3 / 6 / 12 / 25 W / Bypass
100V Transformer Taps 6 / 12 / 25 W / Bypass
Signal Processing Not Required; Bose Professional EQ & SmartBass Available
Enclosure Material Engineered Plastics
Grille Perforated Steel, Powder-Coated, Paintable
Logo Rotatable and Removable
Environmental Rating Indoor Only
Operating Temperature 0°C to 50°C
Loudspeaker Dimensions 207 × 248 mm (Diameter × Depth)
Suspension Cable 4.57 m × 2 mm
Net Weight 2.5 kg per Loudspeaker
Shipping Weight 7.0 kg per Pair
Suspension Mounting 1 × Suspension Attachment Point
Safety Mounting 1 × Safety Cable Attachment Point

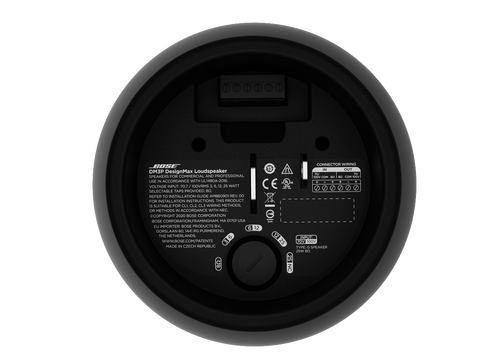

Connector 6-Pin Euroblock with Loop-Through
Colours Black (RAL 9005), White (RAL 9003), Paintable
Product Configuration 1 Pair
Included Accessories 2 × Adjustable Suspension Cables, 8 × Cable Ties, 2 × Cable Fasteners, 2 × Cable Fastener Tools
Optional Accessories Threaded Rod Adapter, Conduit Adapter, Pendant Suspension Cable Kit
Compliance UL 1480A, UL 2239, NFPA 70, NFPA 90A, CE
