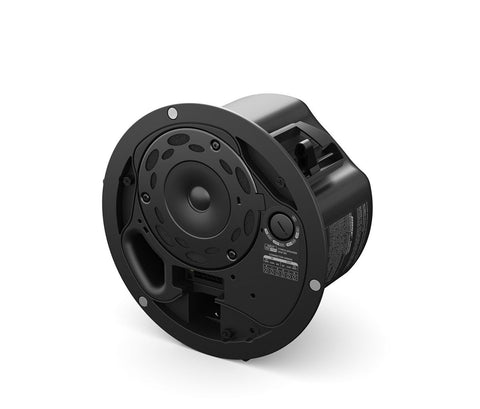

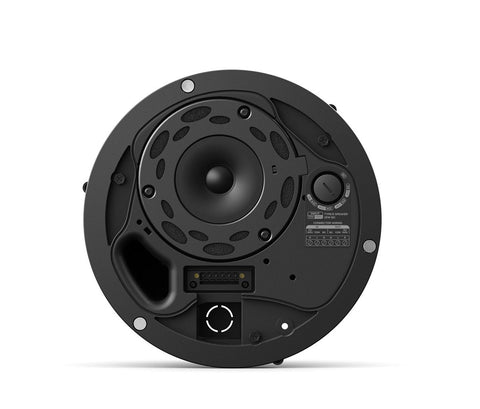

Bose Professional DesignMax DM3C In-Ceiling Loudspeaker

Rs. 77,105.00

Key Features

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Standard warranty provide by OEM
Rs. 77,105.00
Bose Professional DesignMax DM3C In-Ceiling Loudspeaker
Rs. 77,105.00

Product Description

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.

Specification

Brand Bose Professional
Model DesignMax DM3C
Product Type In-Ceiling Loudspeaker
Configuration 2-Way Coaxial
Low-Frequency Driver 1 × 3.25" (83 mm) Woofer
High-Frequency Driver 1 × 0.75" (20 mm) Neodymium Dome Tweeter
Technology Dispersion Alignment System
Frequency Range (-10 dB) 75 Hz – 20 kHz
Coverage – Horizontal 135° Conical
Coverage – Vertical 135° Conical
Maximum SPL @ 1 m 98 dB
Sensitivity 83 dB SPL / 1 W @ 1 m
Nominal Impedance 8 Ω (Transformer Bypass)
Power Handling – Continuous 30 W
Power Handling – Peak 120 W
Recommended High-Pass Filter 80 Hz, 24 dB/octave
Crossover 1.7 kHz, Passive 2-Way
Transformer Taps – 70V 3 / 6 / 12 / 25 W / Bypass
Transformer Taps – 100V 6 / 12 / 25 W / Bypass
Enclosure Material Engineered-Plastic Front Baffle with Integrated Steel-Formed Backcan
Grille Magnetically Attached Perforated Steel, Powder-Coated, Paintable
Environmental Rating Indoor Only
Ceiling Cutout 208 mm
Maximum Ceiling Thickness 39 mm
Loudspeaker Dimensions 255 × 154 mm (Diameter × Depth)
Backcan Dimensions 203 × 144 mm (Diameter × Depth)
Net Weight – Loudspeaker 2.68 kg
Net Weight – Tile Bridge 0.8 kg
Shipping Weight 8.7 kg per pair
Mounting 3 × QuickHold Spring-Loaded Arms + 3 × Safety Cable Points
Connector 6-Pin Euroblock with Loop-Through
Operating Temperature 0°C to 50°C
Colour White; Black Grille Available Separately
Package Configuration 1 Pair
Included Accessories 2 × Tile Bridges, Cutout Template, 2 × White Grilles, Installation Guide
