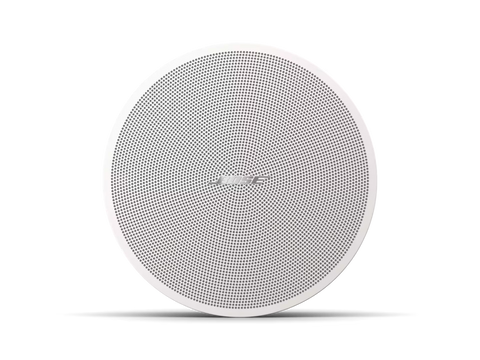

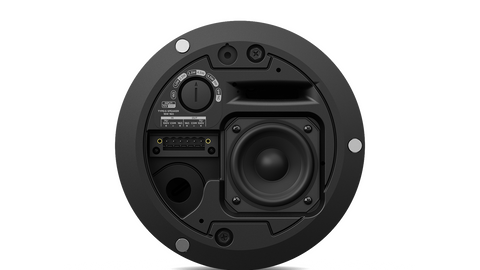

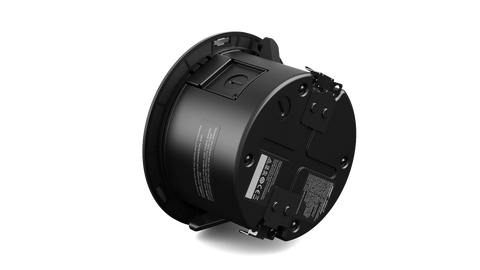

Bose Professional DesignMax DM2C-LP Low-Profile In-Ceiling Loudspeaker (1 pair)
Bose Professional DesignMax DM2C-LP Low-Profile In-Ceiling Loudspeaker (1 pair)
Bose Professional DesignMax DM2C-LP Low-Profile In-Ceiling Loudspeaker (1 pair)

Bose Professional DesignMax DM2C-LP Low-Profile In-Ceiling Loudspeaker (1 pair)

Rs. 55,962.00

Key Features

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver instantly impressive sound with custom Bose Professional drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 55,962.00
Bose Professional DesignMax DM2C-LP Low-Profile In-Ceiling Loudspeaker (1 pair)
Rs. 55,962.00

Product Description

IMPORTANT: To more easily stock and supply our DesignMax loudspeakers, our in-ceiling models will be sold only in white with the option to purchase black grilles as accessories if needed. This affects the following models: DM2C-LP, DM3C, DM5C, DM6C, DM8C, and DM8C-SUB.

A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt Bose Professional DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.

Specification

Brand Bose Professional
Model DesignMax DM2C-LP
Product Type Low-Profile In-Ceiling Loudspeaker
Configuration Full-Range
Driver 1 × 2.25" (57 mm) Woofer
Frequency Range (-10 dB) 85 Hz – 19 kHz
Coverage 150° Conical
Maximum SPL @ 1 m 97 dB
Sensitivity 84 dB SPL / 1 W @ 1 m
Nominal Impedance 16 Ω (Transformer Bypass)
Power Handling – Continuous 20 W
Power Handling – Peak 80 W
Recommended High-Pass Filter 85 Hz, 24 dB/octave
Signal Processing Not Required; Bose Professional EQ & SmartBass Available
Transformer Taps – 70V 1.2 / 2.3 / 4.5 / 9 W / Bypass
Transformer Taps – 100V 2.3 / 4.5 / 9 W / Bypass
Enclosure Material Engineered-Plastic Front Baffle with Integrated Steel Backcan
Grille Magnetically Attached Perforated Steel, Powder-Coated, Paintable
Environmental Rating Indoor Only
Ceiling Cutout 165 mm (6.5")
Maximum Ceiling Thickness 39 mm (1.5")
Loudspeaker Dimensions 198 × 110 mm (7.8 × 4.3") Diameter × Depth
Backcan Dimensions 155 × 99 mm (6.1 × 3.9") Diameter × Depth
Net Weight – Loudspeaker 1.6 kg
Net Weight – Tile Bridge 0.7 kg
Shipping Weight 5.9 kg per pair
Mounting 2 × QuickHold Spring-Loaded Arms + 2 × Safety Cable Points
Connector 6-Pin Euroblock with Loop-Through
Operating Temperature 0°C to 50°C
Package Configuration 1 Pair
Included Accessories Tile Bridges, Cutout Template, White Grilles, Installation Guide
