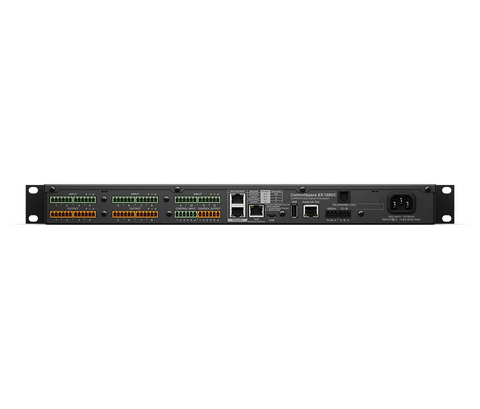

Bose Professional ControlSpace EX-1280C Conferencing Sound Processor
Bose Professional ControlSpace EX-1280C Conferencing Sound Processor
Bose Professional ControlSpace EX-1280C Conferencing Sound Processor
Bose Professional ControlSpace EX-1280C Conferencing Sound Processor

Bose Professional ControlSpace EX-1280C Conferencing Sound Processor

Rs. 583,389.00

Key Features

All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model

12 acoustic echo cancellers (AEC) route to both analog and Dante inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors

Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings

2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement

PSTN connection (RJ-11) for worldwide POTS/analog telephone systems

USB connection facilitates easy integration with PC soft codecs

Dante audio networking supports 64 × 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones

AmpLink port provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose Professional amplifiers

Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity

GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 583,389.00
Bose Professional ControlSpace EX-1280C Conferencing Sound Processor
Rs. 583,389.00

Product Description

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 × 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

Specification

Brand Bose Professional
Model ControlSpace EX-1280C
Product Type Conferencing Sound Processor
DSP Architecture 32-bit Fixed/Floating-Point DSP
DSP / CPU 456 MHz DSP / ARM Cortex-A8 600 MHz
DSP Processing 3.6 GIPS / 2.7 GFLOPS
Sample Rate 48 kHz
A/D & D/A Resolution 24-bit
DSP Delay Up to 43 seconds
Audio Latency 1.05 ms, analog input to analog output without AEC
Analog Inputs 12 balanced mic/line inputs
Input Connector 1 × 6-pin detachable Euroblock, 3.81 mm
Input Impedance 12 kΩ @ 1 kHz
Maximum Input Level +24 dBu
Input Sensitivity / Gain 0 / +14 / +24 / +32 / +44 / +54 / +64 dB
Equivalent Input Noise -118 dB @ 44 dB gain
Phantom Power +48 VDC, 10 mA, software-selectable per input
Analog Outputs 8 balanced line outputs
Output Connector 6-pin Euroblock, 3.81 mm
Maximum Output Level +24 dBu
Output Impedance 200 Ω
Dante Audio 64 × 64 channels, Primary/Secondary
Dante Connectors 2 × RJ-45
AmpLink Output 8-channel digital audio
AmpLink Connector 1 × RJ-45
AmpLink Latency <21 µs
Frequency Response 20 Hz – 20 kHz (+0.3/-0.1 dB)
THD+N 0.002% @ +4 dBu
Dynamic Range >115 dB, A-weighted
Channel Separation < -105 dB @ 1 kHz
AEC Yes
AEC Channels 12
AEC Latency 50 ms
AEC Noise Reduction 32 dB
AEC References 4
AEC Tail Length 480 ms
VoIP 2 lines, RJ-45
PSTN 1 line, RJ-11
USB Audio Micro-B, stereo input/output
USB Host Type-A, future use
Control Inputs 5 analog/digital inputs
Control Outputs 5 digital outputs
RS-232 Supported via 3-pin Euroblock
CC-16 Connection Supported
Display 256 × 64 OLED with rotary encoder
Network Interface RJ-45 Ethernet / Dante
Configuration Software ControlSpace Designer 5.5 or later
Power Supply 85–264 VAC, 50/60 Hz
Power Consumption 35 W typical @ 40°C
Power Dissipation 60 W
Cooling 2 variable-speed side-venting fans
Operating Temperature 0°C to 40°C
Dimensions (H × W × D) 44 × 483 × 282 mm
Rack Space 1U
Net Weight 3.6 kg
Color Black
