Key Features

Elegant styling with easy-to-read dynamic labeling for simplified end user operation

2-line by 40-character backlit LCD screen

4 gain/selector control knobs (rotary/push) with LED rings

4 bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls

1 master scene/preset recall knob (rotary scroll/push to select)

Simplified drag-and-drop setup using ControlSpace Designer software

Customizable on-screen wording provides easier system operation

Supports programming of easy-to-select scenes, allowing multiple room usage scenarios to be recalled from the CC-64 by end users

Programmable software lock-out

Fits into a standard 5-gang electrical wall box

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 208,056.00
Bose Professional ControlSpace CC-64 Programmable Networked Control Center
Rs. 208,056.00

Product Description

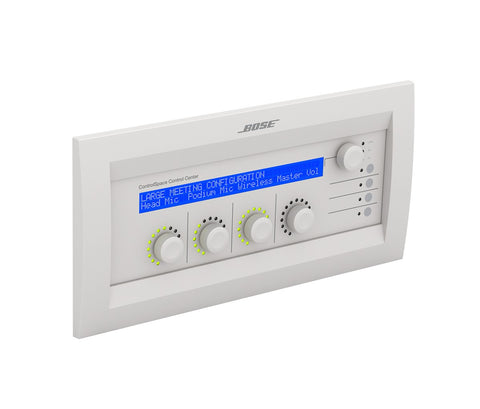

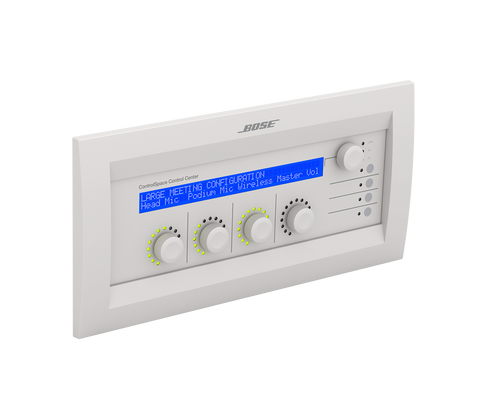

The Bose Professional ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system. The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed "scenes" or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.

Specification

Brand Bose Professional
Model ControlSpace CC-64
Product Type Programmable Networked Control Center
Application ControlSpace ESP processors and networked PowerMatch amplifiers
Network Type 10Base-T Ethernet
Network Connector 1 × RJ-45
Additional Connector 1 × 2-pin Euroblock
Cable Requirement Cat 5 UTP
Maximum Cable Length 100 m / 328 ft
Maximum Controllers Up to 16 per ControlSpace network
Power Range 15–24 VDC, 300 mA
Front Controls 4 × Gain/Selector rotary-push encoders
Bank Switches 4
Master Control 1 × Scene/Preset rotary-push encoder
Control Capacity Up to 16 gain controls/selectors
Display 2-line × 40-character backlit LCD
LCD Backlight Blue
LED Indicators 4 volume-level LED rings, 4 bank LEDs, network/link, transmit and receive LEDs
Programming Fully programmable via ControlSpace Designer
Scene/Preset Recall Supported
Software Lockout Programmable
Mounting Standard 5-gang electrical wall box
Dimensions (H × W × D) 137 × 282 × 51 mm
Color White
Included Accessories Installation guide, Cat 5 power adapter
