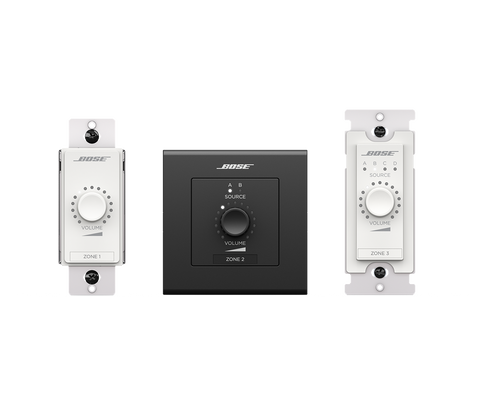

Bose Professional ControlCenter CC-1D Digital Zone Controller

Bose Professional ControlCenter CC-1D Digital Zone Controller

Rs. 30,458.00

Key Features

Three main models: the CC-1D for simple volume control, the CC-2D for volume plus A/B source selection, and the CC-3D for volume plus A/B/C/D source selection

User-friendly interface features a single rotary encoder for volume (knob turn), source selection (knob push) and mute (knob push and hold) with an illuminated volume and source LED indication

Attractive, understated styling with two color options and regional variants to blend in seamlessly with most spaces

Networkable and PoE-powered: Ethernet-based and uses PoE for power; no special cabling or external power supplies required

Programmable: Installers can set discrete volume ranges and source options in software; up to 16 units for CSP and 32 units for CSN can be used simultaneously in expansive projects with CSP and ESP-based systems.

Custom labels: Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling

Regional variants: Each main model comes in three regional sub-models to support different sized electrical boxes. North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86 × 86 mm European model is supplied as a finished wall plate

Compatible with CSP, ESP, and EX sound processors and Bose Professional PowerMatch networked amplifiers

Choose variants
Select Color
Black
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 30,458.00
Bose Professional ControlCenter CC-1D Digital Zone Controller
Rs. 30,458.00

Product Description

Bose Professional ControlCenter digital zone controllers provide volume and source selection for Bose Professional CSP, ESP, and EX sound processors. Powered using PoE, up to 16 units for CSP and 32 units for CSN can be used simultaneously on an Ethernet-based network. Three models are available in either black or white, feature volume/source LED indicators, and fit 1-gang electrical boxes in North America, Europe, and Japan.

Specification

Brand Bose Professional
Model ControlCenter CC-1D
Product Type Digital Zone Controller
Primary Function Digital Volume Control
Control 1 × Rotary/Push Encoder for Volume, Source Selection & Mute
LED Indicators 1 × Volume Level LED Ring
Network Connection 1 × Ethernet RJ-45
Cable Requirement Cat 5e UTP
Power Power over Ethernet (PoE)
Maximum Controllers Up to 16 per CSP processor; up to 32 per ControlSpace EX/ESP network
Compatible Systems CSP processors, ControlSpace ESP/EX processors, PowerMatch networked amplifiers
Compatible Products ESP-880A, EX-1280, EX-440C, EX-1280C, CSP-428, CSP-1248, DS4 Ceiling Audio Solution, ES1 Ceiling Audio Solution
Mounting 1-gang electrical box
Operating Temperature 0°C to 40°C
Dimensions – North America 105 × 40 × 46 mm
Dimensions – Europe 86 × 86 × 43 mm
Dimensions – Japan 110 × 42 × 48 mm
Net Weight Approx. 0.1 kg
Color Options Black, White
Package Contents CC-1D controller, mounting screws, custom label, installation guide
