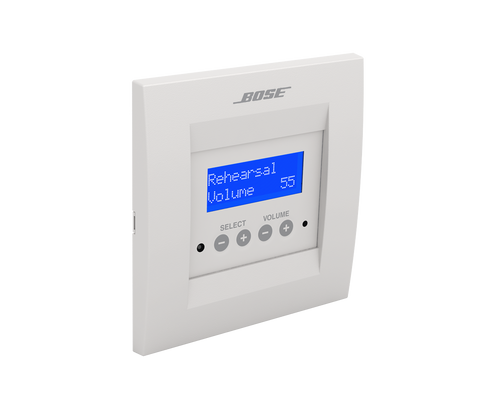

Bose Professional ControlCenter CC-16 Programmable Wall-Mounted Zone Controller
Rs. 66,191.00
Key Features
Standard warranty provide by OEM
Bose Professional ControlCenter CC-16 Programmable Wall-Mounted Zone Controller
Rs. 66,191.00
Product Description
The Bose Professional ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
Specification
| Brand | Bose Professional |
| Model | ControlSpace CC-16 |
| Product Type | Programmable Wall-Mounted Zone Controller |
| Display | 122 × 32 pixel LCD, blue backlit |
| Front Controls | 2 × Volume (+/−) buttons, 2 × Select (+/−) buttons |
| Control Functions | Volume control, source selection, scene/preset selection |
| Programming | Programmable via ControlSpace Designer |
| Network / Communication | RS-485 |
| Cable Requirement | Cat 5, 24–18 AWG, UTP |
| Maximum Controllers | Up to 15 per ControlSpace ESP processor |
| Maximum Cable Length | 609 m (2,000 ft) |
| Connector | 1 × 6-pin Euroblock |
| Power Requirement | 8–18 VDC, 100 mA |
| Compatible Systems | ControlSpace ESP-880A, EX-1280, EX-1280C, DS4 Ceiling Audio Solution |
| Mounting | Standard 2-gang electrical wall box |
| Dimensions (H × W × D) | 121 × 118 × 37 mm |
| Color | White |
