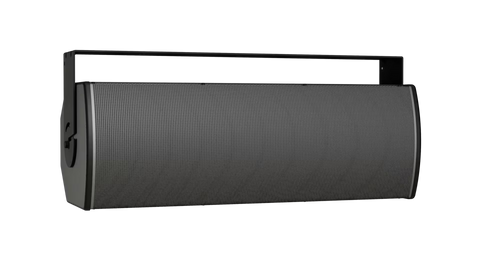

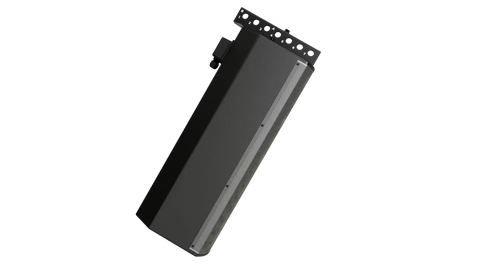

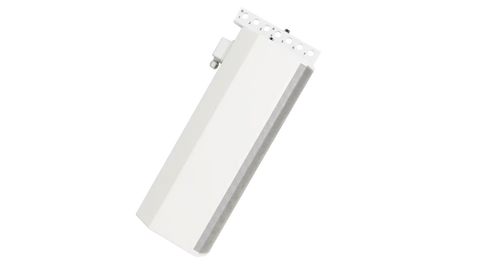

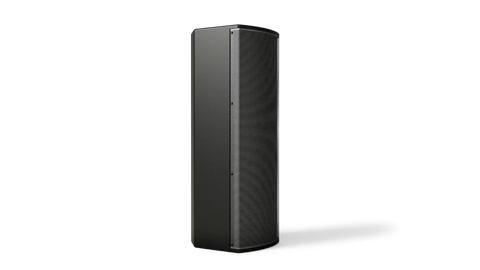

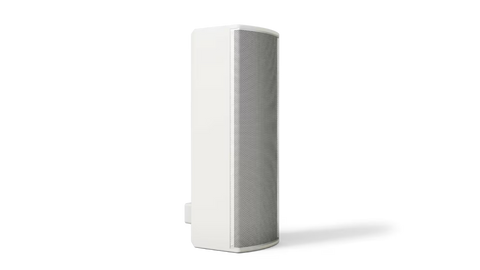

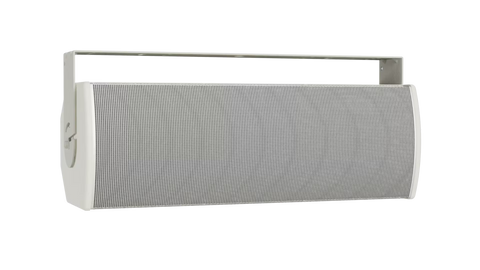

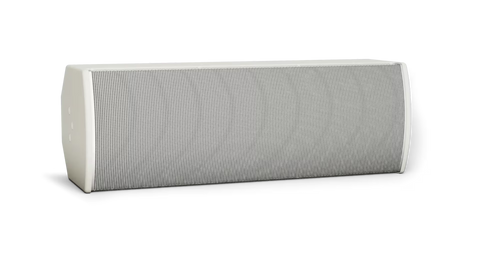

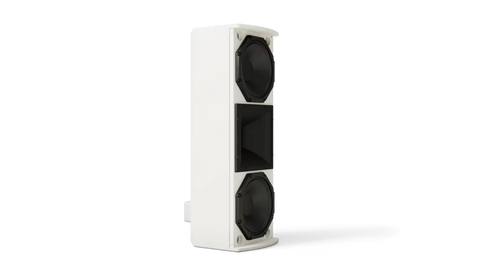

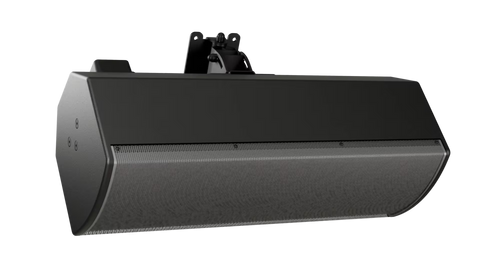

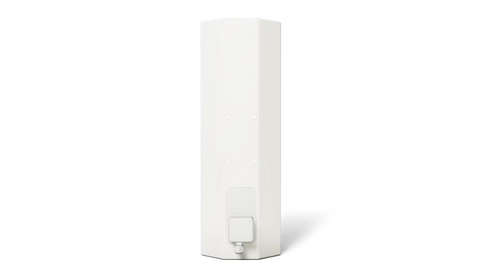

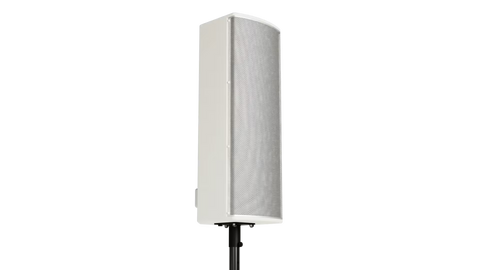

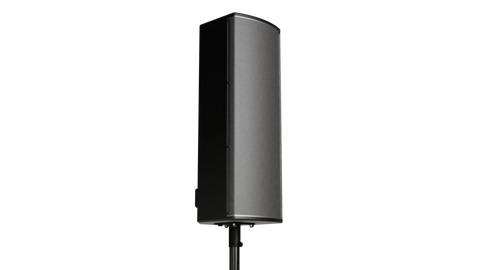

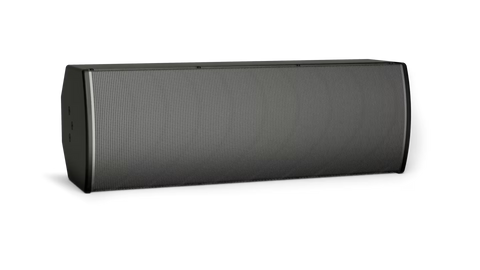

Bose Professional ArenaMatch AMU208 Compact High-Performance Loudspeaker
Key Features
Product Description
The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. The AMU208 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90° × 60° constant-directivity high-frequency horn, 70 Hz – 16 kHz frequency response, 126 dB peak SPL, and supports the lowest vocal ranges with two Bose Professional LF8 8-inch woofers.
Specification
| Brand | Bose Professional |
| Model | ArenaMatch AMU208 |
| Product Type | Compact High-Performance Loudspeaker |
| Configuration | 2-Way Passive |

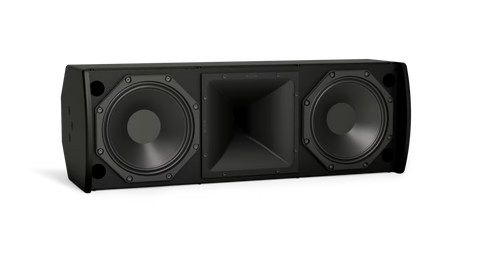

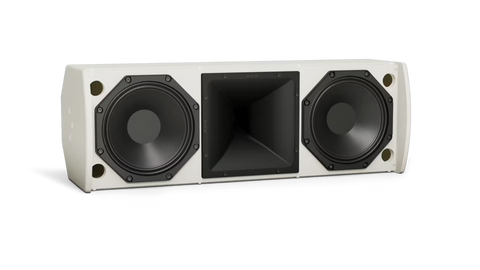

| Low-Frequency Drivers | 2 × Bose LF8 8" (203 mm) High-Excursion Woofers |
| LF Voice Coil | 2" (51 mm) |
| High-Frequency Driver | 1 × Bose EMB2S Extended High-Frequency Compression Driver |
| HF Voice Coil | 2" (51 mm) |
| Frequency Response (-3 dB) | 80 Hz – 16 kHz |
| Frequency Range (-10 dB) | 70 Hz – 18 kHz |
| Coverage Pattern (H × V) | 90° × 60° |
| HF Horn | Rotatable Constant-Directivity Horn |
| Sensitivity | 95 dB Free Field / 97 dB Wall or Ceiling |
| Maximum SPL – Continuous | 120 dB Free Field / 122 dB Wall or Ceiling |
| Maximum SPL – Peak | 126 dB Free Field / 128 dB Wall or Ceiling |
| Nominal Impedance | 8 Ω |
| Power Handling – Continuous | 300 W Extended-Lifecycle / 400 W AES |
| Power Handling – Peak | 1200 W Extended-Lifecycle / 1600 W AES |
| Recommended High-Pass Filter | 70 Hz, minimum 12 dB/octave |
| Crossover | Passive, 200 Hz & 1.2 kHz |
| Transformer Taps – 70V | 5 / 10 / 20 / 40 / 80 W |
| Transformer Taps – 100V | 10 / 20 / 40 / 80 W |
| Transformer | Weather-Sealed 70/100V with 8 Ω Bypass |
| Enclosure Material | Exterior-Grade Plywood |
| Grille | 3-Layer Perforated Stainless Steel + Acoustic Foam + Stainless-Steel Mesh |
| Finish | Two-Part Spray Polyurea Coating |
| Weather Protection | IP55 |
| EN 54-24 | Certified |

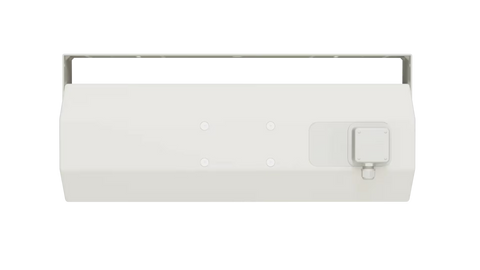

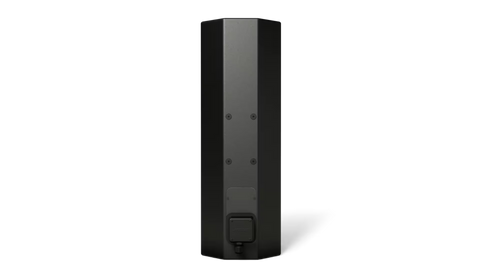

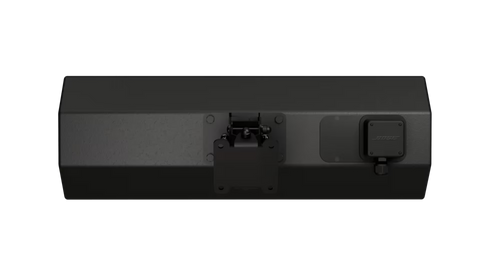

| Mounting | 2 × M8 Inserts for U-Bracket + 4 × Rear M8 Inserts |
| Dimensions (H × W × D) | 235 × 686 × 279 mm |
| Net Weight | 17.0 kg |
| Weight with U-Bracket | 19.5 kg |
| Shipping Weight | 23.1 kg |
| Connector | 1 × Barrier Strip |
| Available Colours | Black / White |
| Application | Indoor / Outdoor |
