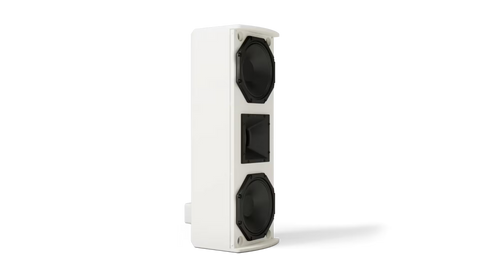

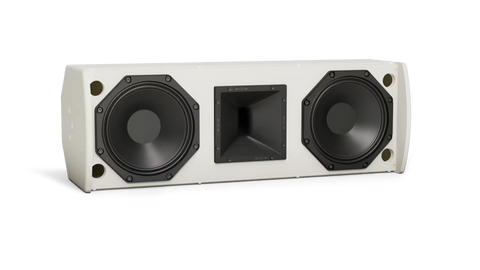

Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker

Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker

Rs. 231,596.00

Key Features

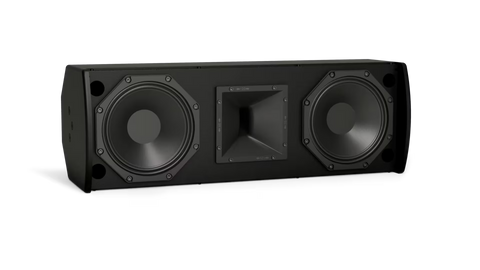

Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters

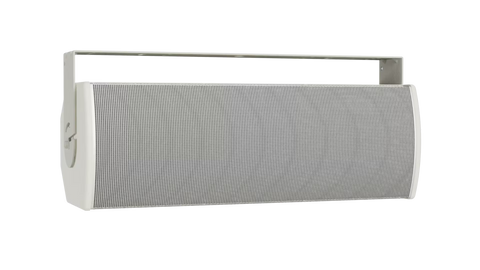

IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection

Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

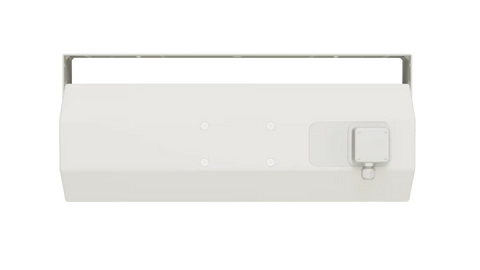

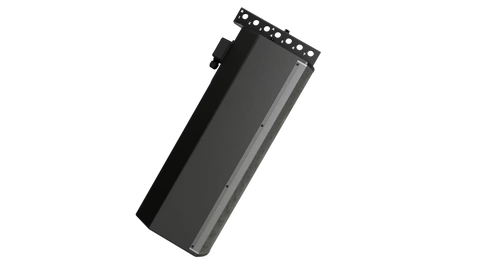

Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware

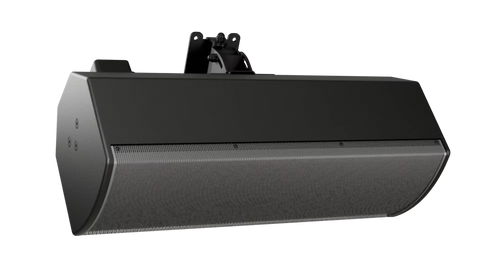

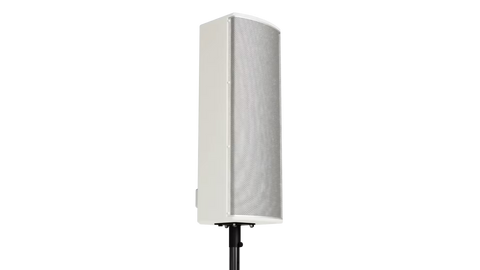

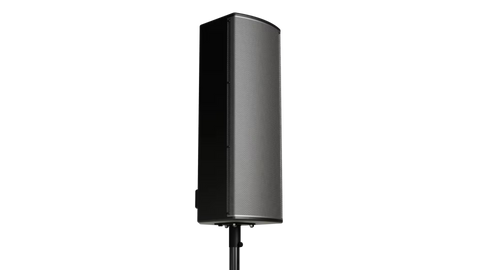

Compatible accessories include: surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use

Compact cabinet construction with rust-resistant suspension points

Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors

Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker

AMU is a stocked product with no custom order or surcharge

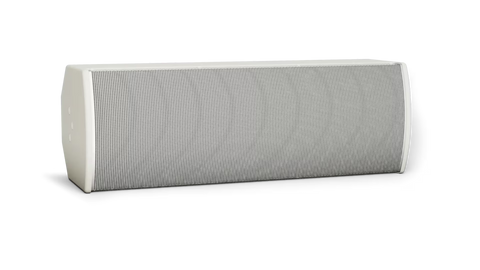

Available in black or white finish to match the design of your project

Choose variants
Select Color
Black
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 231,596.00
Bose Professional ArenaMatch AMU208-120 Compact High-Performance Loudspeaker
Rs. 231,596.00

Product Description

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. AMU208-120 provides wide, even coverage with a rotatable 120° × 60° constant-directivity high-frequency horn, 80 Hz – 16 kHz frequency response, and 127 dB peak SPL, for increased output and more low-frequency extension.

Specification

Brand Bose Professional
Model ArenaMatch AMU208-120
Product Type Compact High-Performance Loudspeaker
Configuration 2-Way Passive
Low-Frequency Drivers 2 × Bose Professional LF8 8" (203 mm) High-Excursion Woofers
LF Voice Coil 2" (51 mm)
High-Frequency Driver 1 × Bose Professional EMB2S Extended-High-Frequency Compression Driver
HF Voice Coil 2" (51 mm)
Frequency Response (-3 dB) 80 Hz – 16 kHz
Frequency Range (-10 dB) 70 Hz – 18 kHz
Coverage Pattern (H × V) 120° × 60°
HF Horn Rotatable Constant-Directivity Horn
Sensitivity – Free Field 94 dB SPL / 1 W @ 1 m
Sensitivity – Wall/Ceiling 96 dB SPL / 1 W @ 1 m
Maximum SPL – Continuous 119 dB Free Field / 121 dB Wall/Ceiling
Maximum SPL – Peak 125 dB Free Field / 127 dB Wall/Ceiling
Nominal Impedance 8 Ω (Transformer Bypass)
Power Handling – Continuous 400 W AES / 300 W Extended-Lifecycle
Power Handling – Peak 1600 W AES / 1200 W Extended-Lifecycle
Recommended High-Pass Filter 70 Hz, minimum 12 dB/octave
Crossover 200 Hz & 1.2 kHz, Passive
Transformer Taps – 70V 5 / 10 / 20 / 40 / 80 W / Bypass
Transformer Taps – 100V 10 / 20 / 40 / 80 W / Bypass
Transformer Weather-Sealed Internal 70/100V with 8 Ω Bypass
Enclosure Material Exterior-Grade Plywood
Grille 3-Layer Perforated Stainless Steel + Acoustic Foam + Stainless-Steel Mesh
Finish Two-Part Industrial Polyurethane Coating
Weather Protection IP55
EN 54-24 Certified

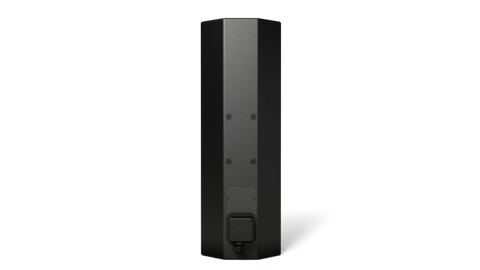

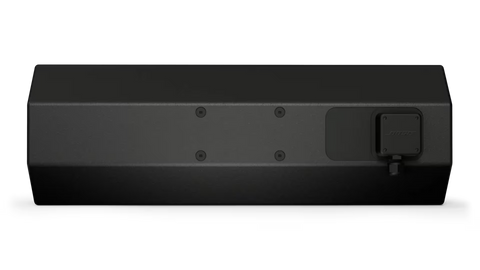

Mounting 2 × M8 Inserts for U-Bracket + 4 × Rear M8 Inserts
Dimensions (H × W × D) 235 × 686 × 279 mm
Net Weight 17.0 kg
Weight with U-Bracket 19.5 kg
Shipping Weight 23.1 kg
Available Colours Black / White
Application Indoor / Outdoor
