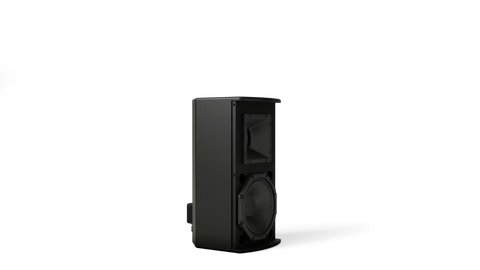

Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker

Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker

Rs. 186,406.00

Key Features

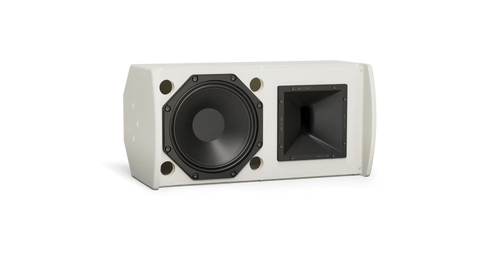

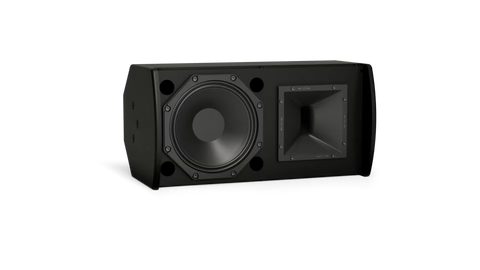

Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters

IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection

Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

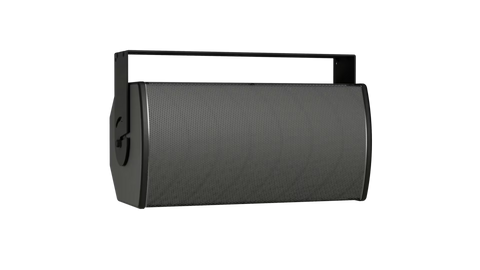

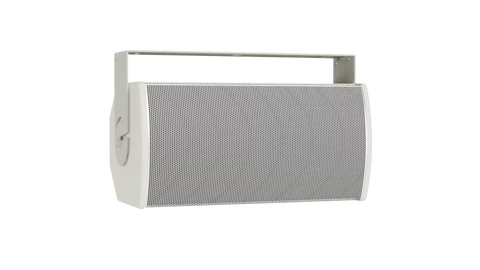

Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware

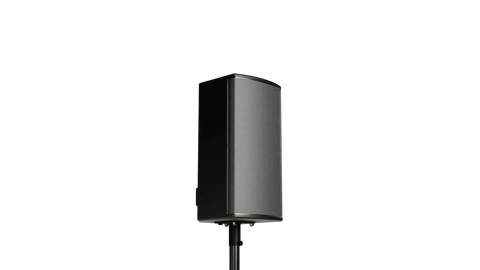

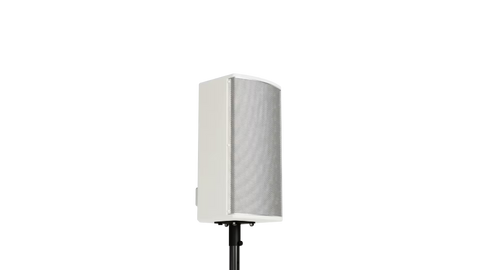

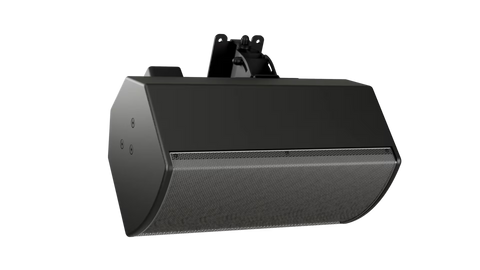

Compatible accessories include: surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use

Compact cabinet construction with rust-resistant suspension points

Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors

Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker

AMU is a stocked product with no custom order or surcharge

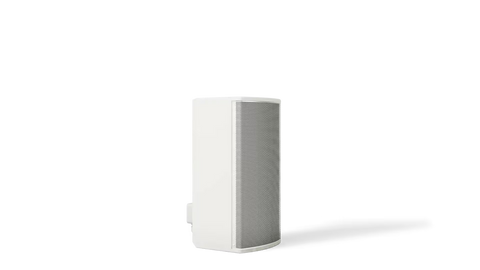

Available in black or white finish to match the design of your project

Choose variants
Select Color
Black
Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 186,406.00
Bose Professional ArenaMatch AMU108-120 Compact High-Performance Loudspeaker
Rs. 186,406.00

Product Description

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. AMU108-120 provides wide, even coverage with a rotatable 120° × 60° constant-directivity high-frequency horn, 90 Hz – 16 kHz frequency response, and 121 dB peak SPL, delivering excellent output in a compact enclosure.

Specification

Brand Bose Professional
Model ArenaMatch AMU108-120
Product Type Compact High-Performance Loudspeaker
Configuration 2-Way Passive
Low-Frequency Driver 1 × Bose Professional LF8 8" (203 mm) High-Excursion Woofer
LF Voice Coil 2" (51 mm)
High-Frequency Driver 1 × Bose Professional EMB2S Extended High-Frequency Compression Driver
HF Voice Coil 2" (51 mm)
Frequency Response (-3 dB) 90 Hz – 16 kHz
Frequency Range (-10 dB) 80 Hz – 18 kHz
Coverage Pattern (H × V) 120° × 60°
Maximum SPL – Continuous 114 dB Free Field / 116 dB Wall or Ceiling
Maximum SPL – Peak 120 dB Free Field / 122 dB Wall or Ceiling
Sensitivity 90 dB Free Field / 92 dB Wall or Ceiling
Nominal Impedance 8 Ω
Power Handling – Continuous 250 W AES / 200 W Extended-Lifecycle
Power Handling – Peak 1000 W AES / 800 W Extended-Lifecycle
Recommended High-Pass Filter 80 Hz, minimum 12 dB/octave
Crossover 1.4 kHz, Passive 2-Way
Transformer Taps – 70V 5 / 10 / 20 / 40 / 80 W / Bypass
Transformer Taps – 100V 10 / 20 / 40 / 80 W / Bypass
Transformer Internal Weather-Sealed 70/100V Transformer with 8 Ω Bypass
Enclosure Material Exterior-Grade Plywood
Grille 3-Layer Perforated Stainless Steel, Acoustic Foam & Stainless-Steel Mesh
Finish 2-Part Spray Polyurea Coating
Weather Protection IP55
EN 54-24 Certified

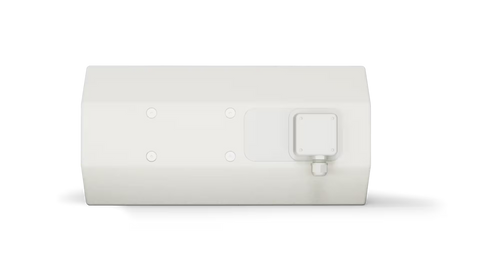

Mounting 2 × M8 Inserts for U-Bracket + 4 × Rear M8 Inserts
Dimensions (H × W × D) 235 × 470 × 279 mm
Net Weight 10.6 kg
Weight with U-Bracket 12.6 kg
Shipping Weight 14.2 kg
Available Colours Black / White
Application Indoor / Outdoor
