Product Description

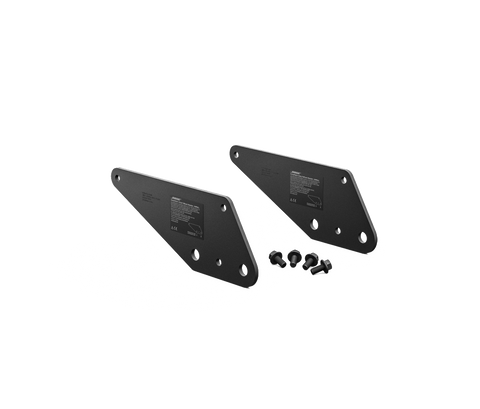

Bose Professional ArenaMatch array rigging accessories are designed for use with ArenaMatch DeltaQ Array loudspeakers (AM10, AM20, and AM40) only. All accessory kits are shipped in pairs and include all required fasteners. The pullback bracket secures the bottom module of an array to building structure and allows adjustment of overall array angle.
Specification
| Brand | Bose Professional |
| Model | ArenaMatch AMPULL |
| Product Type | Array Pullback Bracket |
| Compatible Loudspeakers | ArenaMatch AM10, AM20, AM40 |
| Application | Securing bottom array module to building structure |
| Function | Pullback and overall array-angle adjustment |
| Working Load Limit (WLL) | 205 kg (450 lb), each side, single point |
| Mounting Type | Structural / Overhead Rigging |
| Color | Black |
| Dimensions (H × W × D) | 150 × 396 mm* |
| Net Weight | 5.1 kg |
| Product Code | 807142-0110 |
| Packaging | 2 × AMPULL brackets |
| Included Hardware | 4 × M12 × 30 mm screws with plastic washers |
| Installation Guide | Included |
