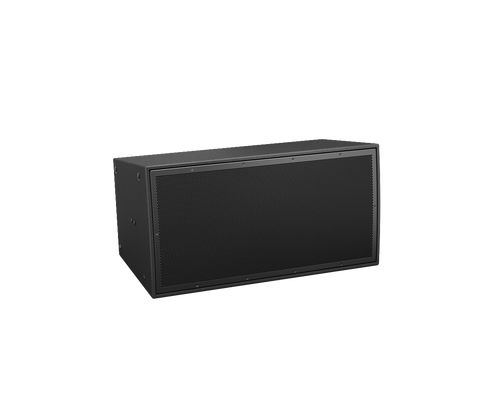

Bose Professional ArenaMatch AM10 DeltaQ Array Loudspeaker

Rs. 991,724.00

Key Features

Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area

Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays

Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers

Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover

Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays

Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance

Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs

Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP

Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames

EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.

Standard warranty provide by OEM
Rs. 991,724.00
Bose Professional ArenaMatch AM10 DeltaQ Array Loudspeaker
Rs. 991,724.00

Product Description

Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations — sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.

Specifications

Brand Bose Professional
Model ArenaMatch AM10
Product Type DeltaQ Array Loudspeaker

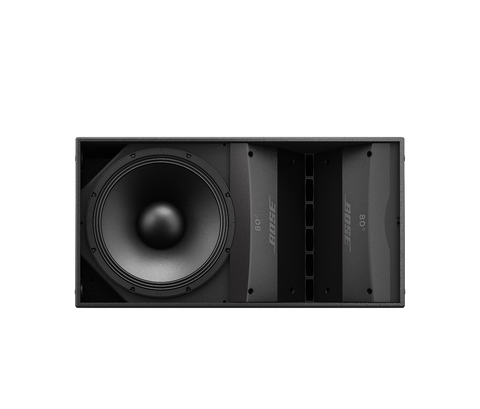

Low-Frequency Driver 1 × 14 in Bose Professional LF14 Neodymium Woofer
LF Voice Coil 4 in (102 mm)
High-Frequency Drivers 6 × Bose Professional EMB2S Neodymium Compression Drivers
HF Voice Coil 2 in (51 mm)
Frequency Response (-3 dB) 65 Hz – 16 kHz
Frequency Range (-10 dB) 55 Hz – 18 kHz
Horizontal Coverage 60° / 80° / 100°
Vertical Coverage 10°
Crossover 950 Hz, Passive or External Bi-Amp
Recommended High-Pass Filter 60 Hz, Minimum 12 dB/Octave
Nominal Impedance 8 Ω Passive / 8 Ω + 8 Ω Bi-Amp
Continuous Power – LF 600 W
Continuous Power – HF 150 W
Continuous Power – Passive 750 W
Peak Power – LF 2400 W
Peak Power – HF 600 W
Peak Power – Passive 3000 W
Sensitivity – Passive 100 dB (AM10/60), 99 dB (AM10/80), 98 dB (AM10/100)
Max SPL – Passive 129 dB / 128 dB / 127 dB @ 1 m
70V Transformer Taps 100 W / 200 W / 400 W
100V Transformer Taps 200 W / 400 W
Enclosure Material Exterior-Grade Birch Plywood

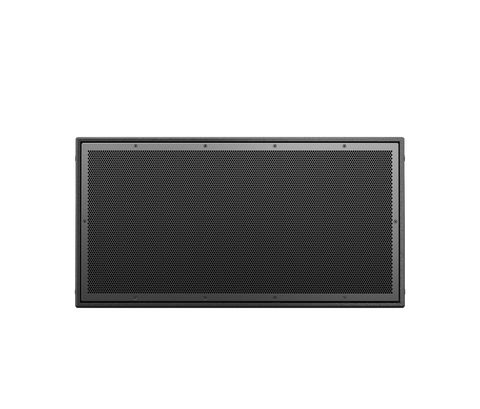

Grille 3-Layer Powder-Coated Stainless Steel
Ingress Protection IP55; IP33C per EN 54-24

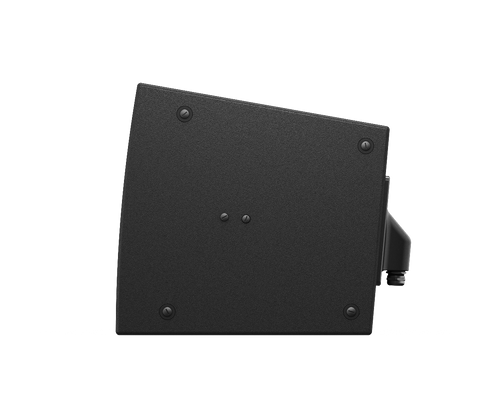

Mounting Inserts 8 × M12, 2 × M10, 2 × M6 + Rear M10 Safety Connection
Dimensions (H × W × D) 409 × 783 × 420 mm
Net Weight 36.3 kg
Shipping Weight 43.5 kg
Color Black
Certification EN 54-24 Certified
