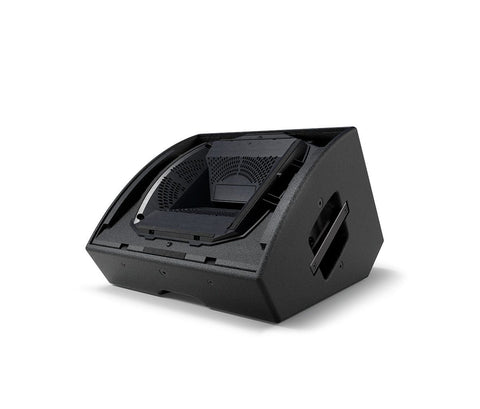

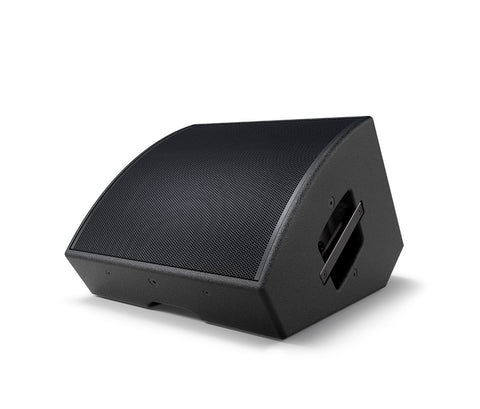

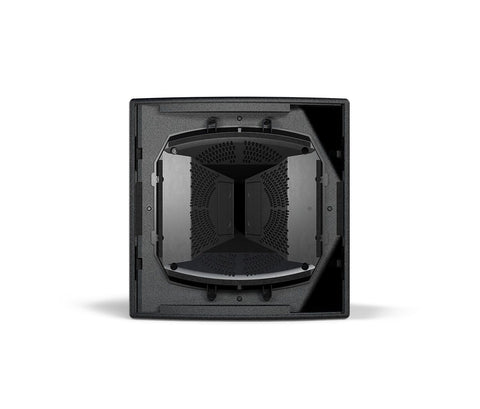

Bose Professional AMM112 Passive Coaxial 2-Way Multipurpose Loudspeaker

Rs. 488,681.00

Key Features

Compact high-output design delivers 131 dB peak output via coaxial driver: 3-inch compression driver, 12-inch low frequency driver with shared neodymium magnet

Multipurpose versatility for deployment as main, monitor, fill, or delay; extend bandwidth by pairing with the Bose Professional ShowMatch SMS118 subwoofer (FoH applications) or the Bose Professional AMS115 subwoofer (fill applications)

Consistent tonality and voicing with AM array modules and AMU utility loudspeakers — easily create entire systems and save substantial time during system configuration

Proprietary Beamwidth Matching Waveguide ensures signature sound quality, aligning low and high beamwidth through crossover region to deliver excellent tonal consistency across the coverage area

Multi-position enclosure with 110° × 60° coverage angle — easily swap horizontal and vertical coverage by simply rotating cabinet, no disassembly or tools required

Lightweight 22 kg (49 lb) cabinet with large, ergonomic handles and 35 mm pole stand adaptor for easy transportation and setup

Pair with Bose Professional PowerMatch amplifiers and ControlSpace DSP for best performance and loudspeaker protection

Deploy easily in permanent or portable applications with optional U-bracket and suspension bracket accessories or use the 7 integrated M10 inserts for custom suspension

Companion AMS115 multipurpose subwoofer also available — 15-inch transducer, low frequency down to 35 Hz, 130 dB peak output, 28 kg (63 lb) design with integrated M20 threaded pole mount and 12 M10 threaded inserts for suspension in permanent installations

Standard warranty provide by OEM
Rs. 488,681.00
Bose Professional AMM112 Passive Coaxial 2-Way Multipurpose Loudspeaker
Rs. 488,681.00

Product Description

The Bose Professional AMM112 multipurpose loudspeaker features a passive, coaxial two-way design with a 3-inch compression driver, 12-inch low-frequency transducer, and high output: 131 dB peak. Its proprietary Beamwidth Matching Waveguide ensures signature Bose Professional sound quality, delivering consistent frequency response, clarity, and projection across the coverage area — a remarkably powerful audio experience for both performers and audiences. The AMM112 is equally suited for a variety of medium-throw sound reinforcement, monitor, and fill applications in permanent or portable sound systems and offers outstanding vocal clarity and projection. The AMM112 features consistent voicing with Bose Professional AM array modules and Bose Professional AMU utility loudspeakers. So it’s easy to mix and match models from all three lines to create different types of systems.

Specification

Brand Bose Professional
Model AMM112
Product Type Multipurpose Loudspeaker
System Design Passive Coaxial 2-Way
Low-Frequency Driver 1 × 12 in (305 mm) Woofer
High-Frequency Driver 1 × 3 in (76 mm) Compression Driver
Frequency Response (-3 dB) 70 Hz – 18 kHz
Frequency Range (-10 dB) 60 Hz – 20 kHz
Coverage Pattern 110° Horizontal × 60° Vertical
Tilt-Back Angle 35°
Crossover Internal Passive / External Bi-Amp
Power Handling – Continuous 300 W Passive; 300 W LF + 45 W HF Bi-Amp
Power Handling – Peak 2800 W Passive; 2800 W LF + 720 W HF Bi-Amp
Sensitivity 96 dB SPL / 1 W / 1 m
Maximum SPL 121 dB Continuous / 131 dB Peak
Nominal Impedance 8 Ω Passive; 8 Ω LF + 8 Ω HF Bi-Amp
Connectors 2 × Neutrik NL4, wired-parallel through
Pole Mount 2 × 35 mm (1.4 in) Pole Cups
Mounting Inserts 6 × M10 Threaded Inserts
Enclosure Material Baltic Birch Plywood
Finish 2-Part Spray Polyurethane Coating
Grille Perforated Steel, Powder-Coated
Ingress Protection IP43 – Front-of-House Position Only
Dimensions (W × H × D) 457 × 457 × 383 mm
Net Weight 22.04 kg
Shipping Weight 26.22 kg
Color Black
Product Code 843161-0110
