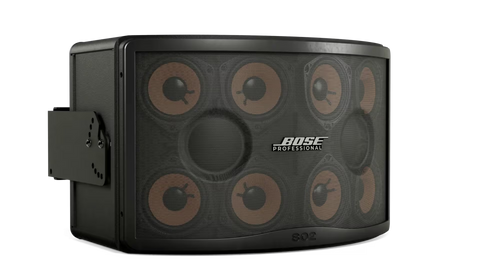

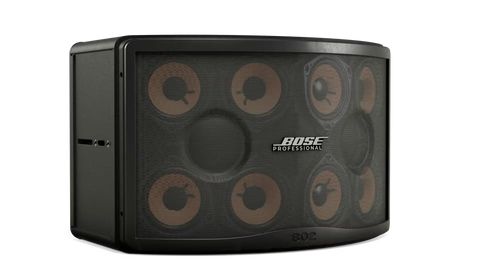

Bose PANARAY 802 Series V installed sound reinforcement loudspeaker
Bose PANARAY 802 Series V installed sound reinforcement loudspeaker
Bose PANARAY 802 Series V installed sound reinforcement loudspeaker
Bose PANARAY 802 Series V installed sound reinforcement loudspeaker
Bose PANARAY 802 Series V installed sound reinforcement loudspeaker
Bose PANARAY 802 Series V installed sound reinforcement loudspeaker

Bose PANARAY 802 Series V installed sound reinforcement loudspeaker

Rs. 164,078.00

Key Features

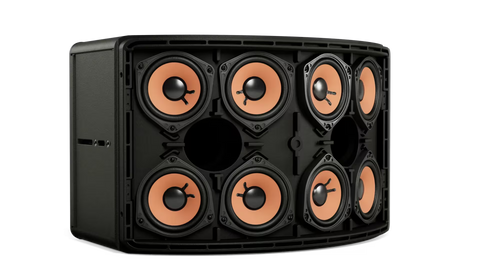

Eight 4.5-inch full-range drivers deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency

Proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers

52 Hz – 15 kHz frequency range provides full-range audio without the need for subwoofers at moderate sound levels

High 123 dB peak SPL capacity means powerful sound reinforcement in demanding environments

Rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations

Flexible mounting options including threaded inserts for easy, secure installations in various configurations

Standard warranty provide by OEM

Share

Facebook X (Twitter) Pinterest
Rs. 164,078.00
Bose PANARAY 802 Series V installed sound reinforcement loudspeaker
Rs. 164,078.00

Product Description

The legend continues. One of the best-selling sound reinforcement loudspeakers of all time returns. The Bose Professional 802 Series V features eight 4.5” full-range drivers that deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency. The proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers, while the 52 Hz low-frequency range can eliminate the need for subwoofers. The rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations, and flexible mounting options allow for easy, secure installations in various configurations. Available in black, 802 Series V is compatible with the 802 U-Bracket and WBP-8 wall-mount adapter. *This product is only sold in specific regions

Specifications

Brand Bose Professional
Model PANARAY 802 Series V
Product Type Installed Sound-Reinforcement Loudspeaker
Driver Configuration 8 × 4.5" (114 mm) Full-Range Cone Transducers
Frequency Range (-10 dB) 52 Hz – 15 kHz
Coverage Pattern 120° H × 100° V
Sensitivity 92 dB SPL / 1 W @ 1 m
Maximum SPL – Continuous 117 dB AES / 116 dB Bose Extended-Life Test
Maximum SPL – Peak 123 dB AES / 122 dB Bose Extended-Life Test
Power Handling – Continuous 300 W AES / 240 W Bose Extended-Life Test
Power Handling – Peak 1200 W AES / 960 W Bose Extended-Life Test
Nominal Impedance 8 Ω
Recommended High-Pass Filter 55 Hz, minimum 12 dB/octave
Loudspeaker EQ Active EQ required for optimal performance
Overload Protection Automatic-reset power-limiting circuit
Enclosure Material Mineral-Reinforced HDPE
Grille Powder-Coated Steel
Weather Rating IP55
Indoor/Outdoor Use Yes

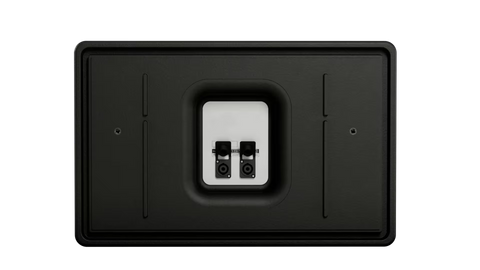

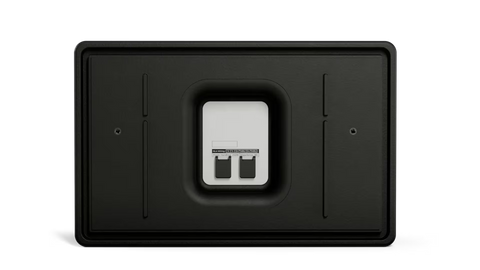

Connectors 2 × Neutrik® NL4, wired parallel
Mounting 8 × M8 threaded inserts
Dimensions (H × W × D) 334 × 523 × 318 mm
Net Weight 16.7 kg
Shipping Weight 19.3 kg
Colour Black

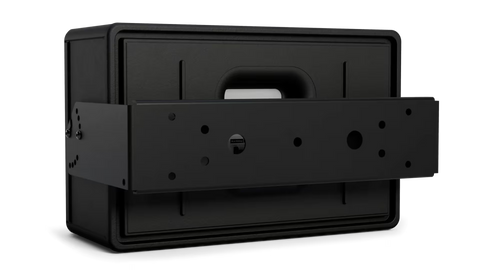

Compatible Accessories 802 U-Bracket; WBP-8 Bi-Pivot Wall Bracket
Package Contents 1 × 802 Series V loudspeaker, Installation Guide
