Patented PhaseGuide technology distributes sound asymmetrically throughout the space to ensure all listeners enjoy the same experience—regardless of their location

In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound

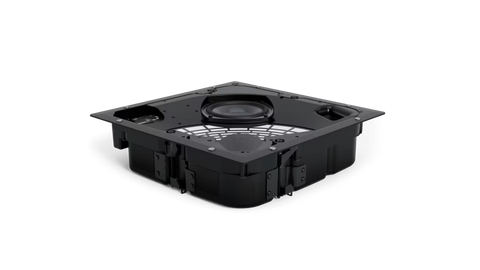

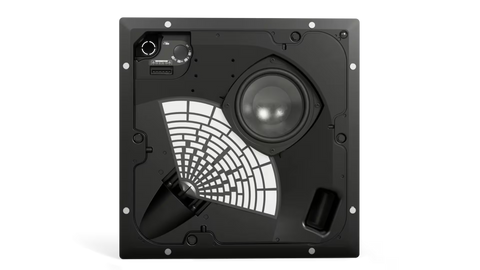

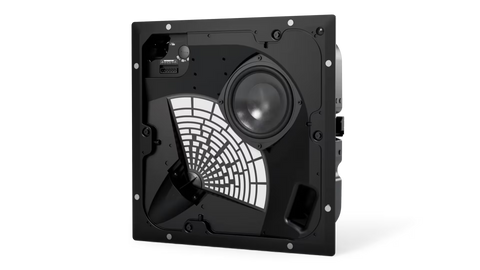

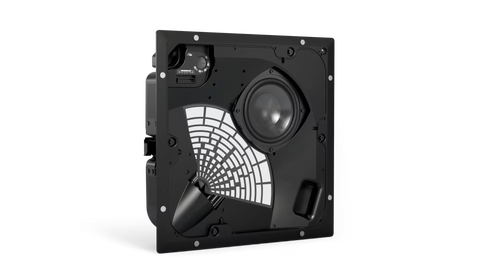

High-frequency compression driver and high-excursion woofer for exceptional audio quality and power

In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage

Wall-boundary loading for greater bass response and performance

2-way passive crossover with bypassable 70/100V transformer

Consistent voicing across the EdgeMax family

QuickHold spring-loaded mounting system for easy installs

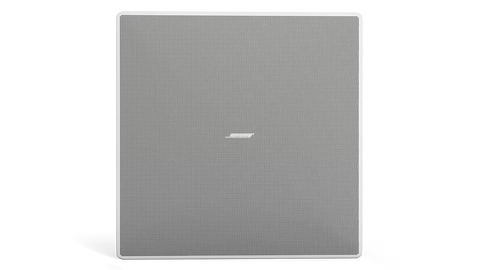

Magnetically attached grille for quick access to wiring and tap settings

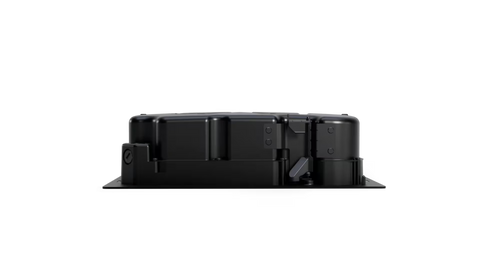

Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances

80-degree vertical coverage angle for use in rooms with lower ceilings

UL 1480A and UL 2043 safety standard compliance
