Product Description

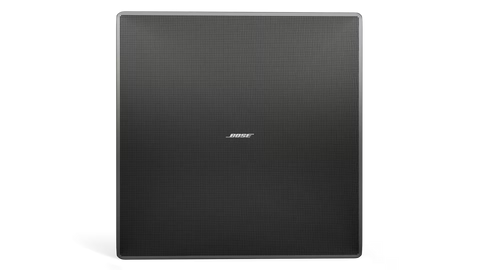

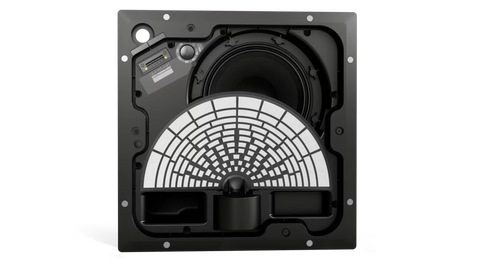

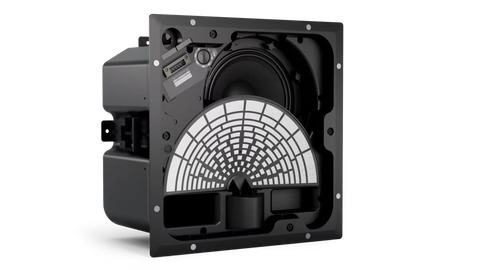

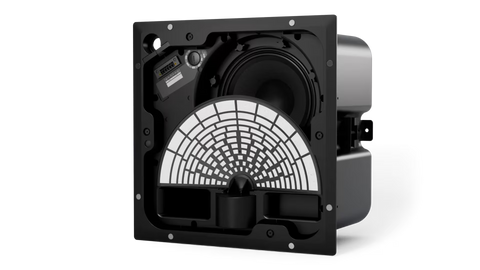

Bose Professional’s EdgeMax series combines the performance of big, bulky surface-mount loudspeakers with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Dual drivers and patented PhaseGuide® technology allow EdgeMax loudspeakers to project powerful, focused sound from the room’s edges to the center. They deliver amazing directionality and voice intelligibility to ensure all listeners enjoy the same sound—regardless of their location. Larger rooms with higher SPL needs, such as fitness centers, benefit from the powerful, deeper 9-inch (24 cm) cans of EdgeMax EM. In these demanding environments, EM models deliver proven performance, with immersive full-frequency sound for music and clear intelligibility for voice, even at high volumes. Also, EM models are designed with 75-degree vertical coverage, optimal for rooms with higher ceilings.
Specification
| Brand | Bose Professional |
| Model | EdgeMax EM180 |
| Product Type | In-Ceiling Premium Loudspeaker |
| Configuration | 2-Way Passive |
| Low-Frequency Driver | 1 × 8" (203 mm) Woofer, 1.5" Voice Coil |
| High-Frequency Driver | 1 × Compression Driver, 1.3" (33 mm) Voice Coil |
| Frequency Range (-10 dB) | 45 Hz – 20 kHz |
| Coverage – Horizontal | 180° |
| Coverage – Vertical | 75° |
| Maximum SPL @ 1 m | 114 dB Continuous / 120 dB Peak |
| Nominal Impedance | 8 Ω (Transformer Bypassed) |
| Power Handling – Continuous | 125 W |
| Power Handling – Peak | 500 W |
| Sensitivity | 93 dB SPL (1 W / 1 m) |
| Crossover | 1 kHz Passive 2-Way |
| Transformer Taps – 70V | 2.5 / 5 / 10 / 20 / 40 / 80 W / Bypass |
| Transformer Taps – 100V | 5 / 10 / 20 / 40 / 80 W / Bypass |
| High-Pass Protection | 55 Hz, Minimum 12 dB/Octave |

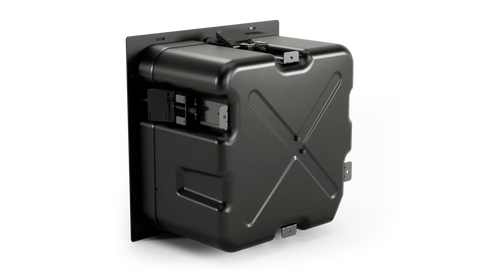

| Enclosure Material | Engineered-Plastic Front Baffle with Integrated Steel Enclosure |
| Grille | Micro-Perforated Steel, Powder-Coated, Paintable |
| Colour | White, Similar to RAL 9003 |
| Environmental | Indoor Only |
| Safety Compliance | UL 1480A, UL 2043 |
| Operating Temperature | 0°C – 50°C |

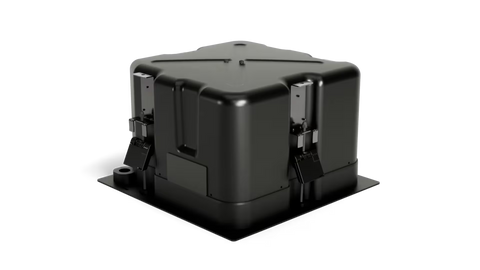

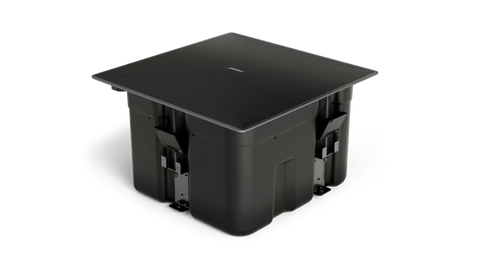

| Mounting | 4 QuickHold Spring-Loaded Mounting Arms + 4 M6 Safety Cable Points |
| Maximum Ceiling Thickness | 80 mm |
| Ceiling Cutout | 345 × 345 mm |
| Mounting Depth | 236 mm |
| Speaker Dimensions | 339 × 339 × 249 mm |
| Grille Flange Dimensions | 390 × 390 × 13 mm |
| Net Weight | 10.1 kg |
| Shipping Weight | 12.5 kg |
| Connector | 6-Pin Euroblock with Loop-Through |
