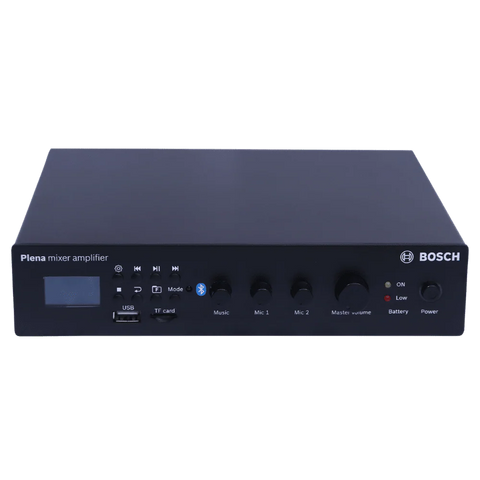

Bosch PLE-1MP30-IN 30w Portable Mixer Amplifier Each
Key Features
Product Description
The Bosch PLE-1MP30-IN is a compact 30 W portable Class-D mixer amplifier designed for reliable public address and background music applications. It combines a high-efficiency amplifier with an integrated music source, supporting Bluetooth, USB, TF card, and FM radio playback, making it an all-in-one audio solution for portable and fixed installations.
The amplifier features two microphone inputs, one AUX input, phantom power support for condenser microphones, and an adjustable ducking function that automatically lowers background music during announcements. It also supports 12 V or 24 V battery operation, making it ideal for locations where mains power is unavailable or unreliable. Built-in short-circuit, overload, and low-battery protection ensure dependable operation.
Its compact desktop design and simple controls make the PLE-1MP30-IN an excellent choice for schools, classrooms, retail stores, places of worship, meeting rooms, mobile PA systems, exhibitions, and small commercial venues that require clear speech and high-quality music playback.
Specification
| Details | |
|---|---|
| Model | Bosch PLE-1MP30-IN |
| Product Type | Portable Mixer Amplifier |
| Rated Output Power | 30 W (Class-D) |
| Microphone Inputs | 2 × Mic Inputs (Combo XLR / 6.35 mm) |
| AUX Input | 1 × RCA Stereo (Mono Mixed) |
| Music Sources | Bluetooth, USB, TF Card, FM Radio |
| Frequency Response | 20 Hz – 20 kHz (+1/-3 dB) |
| Total Harmonic Distortion (THD) | <1% @ Rated Output |
| Signal-to-Noise Ratio | >70 dB (Line), >60 dB (Mic) |
| Phantom Power | Supported |
| Ducking Function | Adjustable (0 dB, -6 dB to -24 dB, Mute) |
| Speaker Outputs | 100 V Line & Low Impedance Speaker Output |
| Power Supply | 19 V DC Adapter (65 W) or 12 V / 24 V Battery |
| Battery Support | 12 V / 24 V External Battery |
| Dimensions (H × W × D) | 52 × 224 × 219 mm |
| Weight | 2 kg |
| Mounting | Desktop / Bench Placement |
| Color | Traffic Black (RAL 9017) |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -15°C to +70°C |
| Relative Humidity | <95% |
| Included Accessories | Power Adapter, IR Remote Control, Battery Connector, Speaker Connector, FM Antenna, User Manual |
