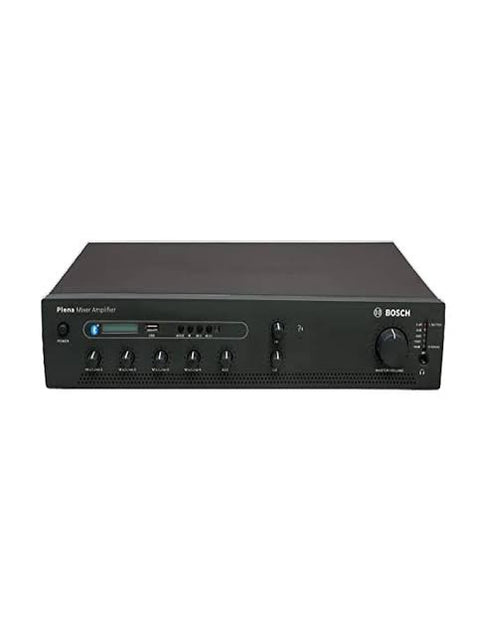

Bosch PLE-1ME240-3IN – 240W Mixer Amplifier with USB/Bluetooth
Key Features
Product Description
The Bosch PLE-1ME240-3IN is a 240 W professional single-zone mixer amplifier designed for public address (PA) and background music applications in commercial environments. It combines a powerful amplifier with built-in Bluetooth audio streaming and USB media playback, providing an all-in-one solution for high-quality music and clear voice announcements.
The amplifier features 4 microphone/line inputs and 1 dedicated music (AUX/BGM) input, allowing multiple audio sources to be connected simultaneously. It includes 100 V line and 4 Ω speaker outputs, VOX and Push-to-Talk (PTT) priority paging, an insert connection for external audio processing, a built-in limiter for overload protection, and bass & treble controls for optimized sound performance. An LED VU meter, LCD display, and headphone monitoring provide simple and convenient operation.
Designed in a 19-inch, 2U rack-mount chassis, the PLE-1ME240-3IN is ideal for schools, offices, hotels, retail stores, restaurants, factories, places of worship, auditoriums, and other commercial PA installations requiring reliable paging and background music with high-power performance.
Specification
| Details | |
|---|---|
| Model | Bosch PLE-1ME240-3IN |
| Product Type | Mixer Amplifier |
| Rated Output Power | 240 W |
| Microphone / Line Inputs | 4 × Mic/Line Inputs |
| Music Input | 1 × AUX/BGM (RCA) |
| Built-in Music Source | Bluetooth & USB Media Player |
| Speaker Outputs | 100 V Line & 4 Ω |
| Frequency Response | 80 Hz – 18 kHz (+1/-3 dB) |
| Total Harmonic Distortion (THD) | <1% @ Rated Output, 1 kHz |
| Signal-to-Noise Ratio | ≥70 dB (AUX Input) |
| Tone Controls | Bass: ±8 dB, Treble: ±8 dB |
| Insert Connection | RCA (Preamp/Power Amp Insert) |
| Headphone Output | 3.5 mm Jack |
| Priority Function | VOX & Push-to-Talk (PTT) Priority |
| Chime | Optional 2-Tone Chime |
| Power Supply | 220–230 V AC, 50 Hz |
| Power Consumption | 240 W (Nominal) |
| Speaker Output Connectors | Screw Terminal (100 V & 4 Ω) |
| Dimensions (H × W × D) | 100 × 430 × 290 mm (19-inch, 2U Rack Mount) |
| Weight | Approx. 10.5 kg |
| Mounting | Desktop or 19-inch Rack Mount |
| Color | Charcoal |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | <95% |
| Included Accessories | Power Cord, IR Remote Control, User Manual |
