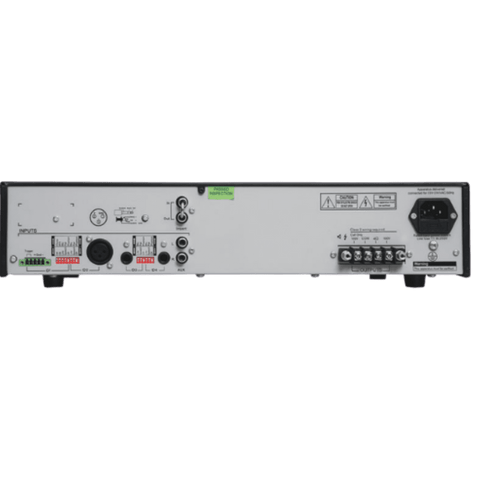

Bosch PLE-1ME120-3IN 120 W Mixer Amplifier with USB/Bluetooth
Key Features
Product Description
The Bosch PLE-1ME120-3IN is a 120 W professional single-zone mixer amplifier designed for reliable public address (PA) and background music applications. It combines a high-efficiency amplifier with built-in Bluetooth audio streaming and USB media playback, providing a complete audio solution for commercial installations.
The amplifier features 4 microphone/line inputs and 1 dedicated AUX/BGM input, allowing multiple audio sources to be connected simultaneously. It includes 100 V line and 4 Ω speaker outputs, switchable phantom power for condenser microphones, VOX/PTT priority paging, an insert connection for external audio processing, and a built-in limiter to protect the system from overload. An LED VU meter, LCD display, bass and treble controls, and headphone monitoring make operation simple and efficient.
Designed in a 19-inch, 2U rack-mount chassis, the PLE-1ME120-3IN is ideal for schools, offices, hotels, retail stores, restaurants, factories, places of worship, and other commercial venues that require clear paging and high-quality background music with dependable performance.
Specification
| Details | |
|---|---|
| Model | Bosch PLE-1ME120-3IN |
| Product Type | Mixer Amplifier |
| Rated Output Power | 120 W |
| Microphone / Line Inputs | 4 × Mic/Line Inputs |
| Music Input | 1 × AUX/BGM (RCA) |
| Built-in Music Source | Bluetooth & USB Media Player |
| Speaker Outputs | 100 V Line & 4 Ω |
| Frequency Response | 80 Hz – 18 kHz (+1/-3 dB) |
| Total Harmonic Distortion (THD) | <1% @ Rated Output, 1 kHz |
| Signal-to-Noise Ratio | ≥70 dB (AUX Input) |
| Tone Controls | Bass: ±8 dB, Treble: ±8 dB |
| Insert Connection | RCA (Preamp/Power Amp Insert) |
| Headphone Output | 3.5 mm Jack |
| Priority Function | VOX & PTT Priority |
| Chime | Optional 2-Tone Chime (Input 1) |
| Power Supply | 220–230 V AC, 50 Hz |
| Power Consumption | 120 W (Nominal) |
| Speaker Output Connectors | Screw Terminal (100 V & 4 Ω) |
| Dimensions (H × W × D) | 100 × 430 × 290 mm (19-inch, 2U Rack Mount) |
| Weight | Approx. 8.9 kg |
| Mounting | Desktop or 19-inch Rack Mount |
| Color | Charcoal |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | <95% |
| Included Accessories | Power Cord, IR Remote Control, User Manual |
