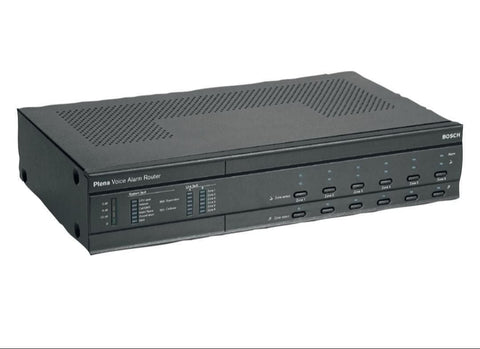

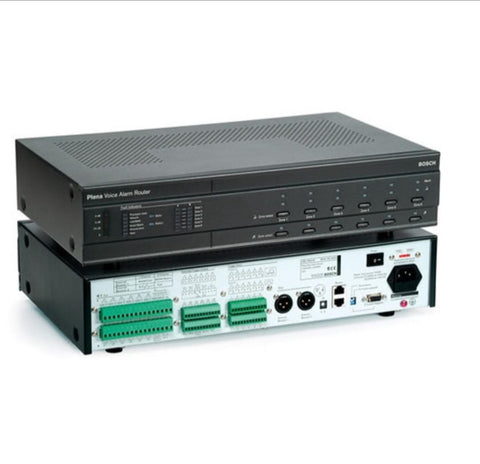

Bosch LBB1992/00 Plena Voice Alarm Router - Each
Rs. 196,730.00
Key Features
Standard warranty provide by OEM
Bosch LBB1992/00 Plena Voice Alarm Router - Each
Rs. 196,730.00
Product Description
The Bosch LBB1992/00 Voice Alarm Router is an expansion unit designed for the Plena Voice Alarm System, enabling the addition of six extra loudspeaker zones and 12 programmable input contacts. It supports single or dual-channel operation for simultaneous emergency paging and background music distribution, while allowing the use of one or two external power amplifiers. With EN 54-16 certification, integrated system supervision, and support for A/B loudspeaker line wiring, the LBB1992/00 is an ideal solution for expanding voice evacuation and public address systems in commercial buildings, educational institutions, healthcare facilities, and industrial environments.
Specification
| Details | |
|---|---|
| Model | LBB1992/00 |
| Product Type | Voice Alarm Router |
| System Expansion | Adds 6 loudspeaker zones |
| Loudspeaker Outputs | 12 (2 × 6 zones) |
| External Amplifier Inputs | 2 |
| Amplifier Power Handling | Up to 1000 W |
| Loudspeaker Output | 100 V line, 700 W per zone |
| Trigger Inputs | 12 programmable (6 Emergency + 6 Business) |
| Volume Override Outputs | 6 |
| Communication | RS-232, System Interlinks |
| Power Supply | 230/115 VAC, 50/60 Hz or 24 VDC backup |
| Power Consumption | 50 VA (max.) |
| Certification | EN 54-16 Certified |
| Mounting | 19-inch Rack, 2U |
| Dimensions (H × W × D) | 88 × 430 × 260 mm |
| Weight | Approx. 3 kg |
